Publish your website as a public secured service
Requirements
- Read the previous chapter Deploy abcdesktop on OVHcloud with Kubernetes
- an OVHcloud account
- your own internet domain
kubectlcommand linewgetcommand line
For more information
- Read the OVHcloud chapter install-nginx-ingress-controller
Overview
In this chapter, you will use an NGINX ingress controller to expose your abcdesktop service with a public IP address, configure your DNS zone file to use your own domain name, and enable TLS to secure the service.
Update http-router service
By default, the http-router service type is NodePort. To expose the service through an ingress controller, you must change the service type from NodePort to ClusterIP.
Run the following command to confirm the current service type is NodePort:
kubectl get svc http-router -n abcdesktop
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
http-router NodePort 10.0.170.21 <none> 80:30443/TCP 5m31s
To change the service type, first delete the existing service:
kubectl delete service http-router -n abcdesktop
service "http-router" deleted
Create a new http-router.yaml file with the following content:
kind: Service
apiVersion: v1
metadata:
name: http-router
labels:
abcdesktop/role: router-od
spec:
selector:
run: router-od
ports:
- protocol: TCP
port: 443
targetPort: 443
name: https
- protocol: TCP
port: 80
targetPort: 80
name: http
Create the new service/http-router:
kubectl apply -f http-router.yaml -n abcdesktop
service/http-router created
Verify that the service type has changed to ClusterIP:
kubectl get svc http-router -n abcdesktop
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
http-router ClusterIP 10.0.132.230 <none> 443/TCP,80/TCP 5s
Deploy nginx ingress controller
Deploy an NGINX ingress controller to your cluster using helm.
First, add the NGINX ingress controller Helm repository:
helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx && helm repo update
Then install it on your cluster:
helm install ingress-nginx ingress-nginx/ingress-nginx --namespace ingress-nginx --create-namespace
After installation completes, verify that the service was created:
kubectl get svc ingress-nginx-controller -n ingress-nginx
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller LoadBalancer 10.3.74.197 <pending> 80:32649/TCP,443:32195/TCP 12s
Wait a few minutes until the EXTERNAL-IP field is populated:
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ingress-nginx-controller LoadBalancer 10.3.74.197 51.68.26.94 80:32649/TCP,443:32195/TCP 4m34s
Create new record

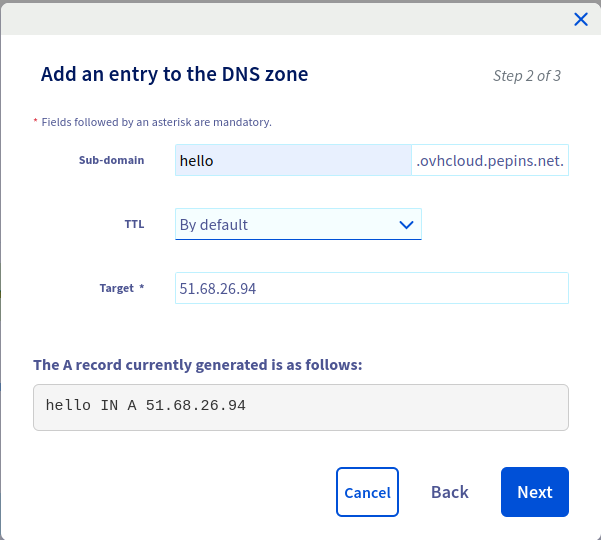

Create a new A record named hello (hello.ovhcloud.pepins.net) pointing to 51.68.26.94.
Click Add to update your zone file with the new record.
Configure NGINX Ingress Rules for Backend Services
In this step, you expose the backend applications to the outside world by defining a rule in NGINX that maps each host to an abcdesktop route backend service.
Create an ingress resource for NGINX using the abcdesktop service and save it as abcdesktop_host.yaml. Update this manifest with your own FQDN by replacing hello.ovhcloud.pepins.net with your own values.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-abcdesktop
namespace: abcdesktop
spec:
rules:
- host: hello.ovhcloud.pepins.net
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: http-router
port:
number: 80
ingressClassName: nginx
Apply the Ingress YAML file:
kubectl apply -f abcdesktop_host.yaml -n abcdesktop
You should see the following output:
ingress.networking.k8s.io/ingress-abcdesktop created
Verify the ingress resources:
kubectl get ingress -n abcdesktop
The output looks similar to the following.
Wait a few seconds while the ADDRESS field is being populated:
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-abcdesktop nginx hello.ovhcloud.pepins.net 80 5s
When the ADDRESS field is populated:
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-abcdesktop nginx hello.ovhcloud.pepins.net 51.68.26.94 80 59s
The spec section of the manifest contains a list of host rules used to configure the Ingress. If no rule matches, all traffic is sent to the default backend service. The manifest has the following fields:
-
hostspecifies the fully qualified domain name of a network host, for exampleecho.<your-domain-name>. -
httpcontains the list of HTTP selectors pointing to backends. -
pathsprovides a collection of paths that map requests to backends.
In the example above, the ingress resource instructs NGINX to route each HTTP request using the / prefix for the hello.ovhcloud.pepins.net host to the http-router backend service running on port 80. In other words, every request to http://hello.ovhcloud.pepins.net/ is served by the http-router backend service on port 80.
You can have multiple ingress controllers per cluster. The ingressClassName field in the manifest differentiates between them. You can also define multiple rules for different hosts and paths within a single ingress resource.
Web browsers block WebSocket connections without a secure protocol. To log in, use the
httpsprotocol.

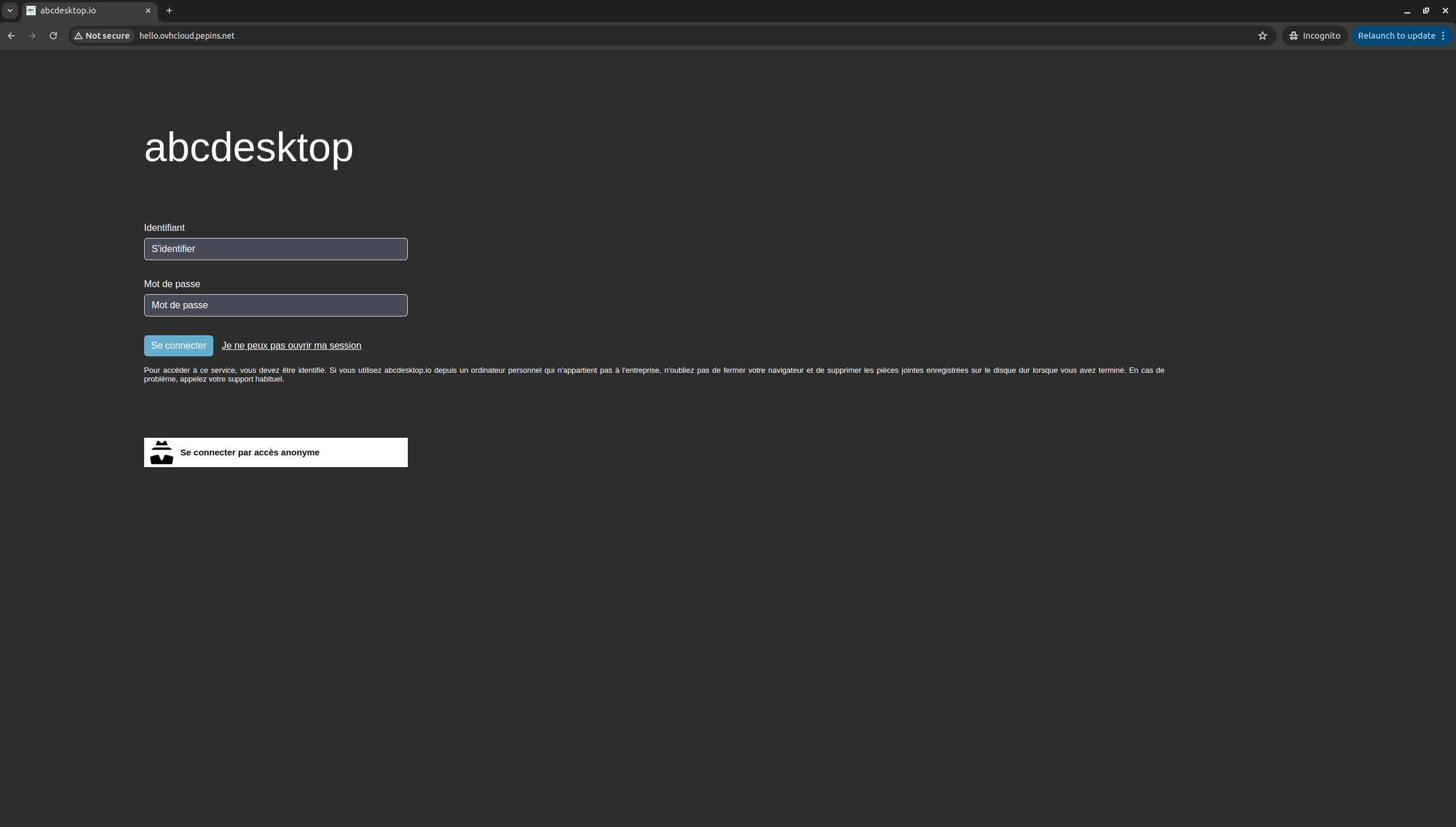

Your website is marked as Not Secured. You must add an X.509 SSL certificate to secure the service.
Enable HTTPS
Deploy Cert-Manager on your OVHcloud Kubernetes cluster
As with the NGINX ingress controller, we will use helm to install Cert-Manager on the cluster.
First, add the Cert-Manager Helm repository:
helm repo add jetstack https://charts.jetstack.io && helm repo update
Then install it on your cluster:
helm install \
cert-manager oci://quay.io/jetstack/charts/cert-manager \
--namespace cert-manager \
--create-namespace \
--set crds.enabled=true
After installation completes, inspect the Kubernetes resources created by Cert-Manager:
kubectl get all -n cert-manager
The output looks similar to the following:
NAME READY STATUS RESTARTS AGE
pod/cert-manager-75bb65b7b9-t8s7n 1/1 Running 0 24s
pod/cert-manager-cainjector-5cd89979d6-x2h7f 1/1 Running 0 24s
pod/cert-manager-webhook-8fc5dcf5f-r6m79 1/1 Running 0 24s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cert-manager ClusterIP 10.3.59.46 <none> 9402/TCP 26s
service/cert-manager-cainjector ClusterIP 10.3.233.163 <none> 9402/TCP 26s
service/cert-manager-webhook ClusterIP 10.3.86.148 <none> 443/TCP,9402/TCP 26s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/cert-manager 1/1 1 1 26s
deployment.apps/cert-manager-cainjector 1/1 1 1 26s
deployment.apps/cert-manager-webhook 1/1 1 1 26s
NAME DESIRED CURRENT READY AGE
replicaset.apps/cert-manager-75bb65b7b9 1 1 1 25s
replicaset.apps/cert-manager-cainjector-5cd89979d6 1 1 1 25s
replicaset.apps/cert-manager-webhook-8fc5dcf5f 1 1 1 25s
The Cert-Manager pods and webhook service are running.
Cert-Manager creates custom resource definitions (CRDs). It relies on three important CRDs to issue certificates from a Certificate Authority (such as Let's Encrypt):
-
Issuer: Defines a namespaced certificate issuer, allowing you to use different CAs in each namespace.
-
ClusterIssuer: Similar to
Issuer, but not namespaced; it can issue certificates in any namespace. -
Certificate: Defines a namespaced resource that references an
IssuerorClusterIssuerfor issuing certificates.
Inspect the CRDs by running the following command:
kubectl get crd -l app.kubernetes.io/name=cert-manager
The output looks similar to the following:
NAME CREATED AT
certificaterequests.cert-manager.io 2026-01-21T15:54:42Z
certificates.cert-manager.io 2026-01-21T15:54:42Z
challenges.acme.cert-manager.io 2026-01-21T15:54:42Z
clusterissuers.cert-manager.io 2026-01-21T15:54:42Z
issuers.cert-manager.io 2026-01-21T15:54:42Z
orders.acme.cert-manager.io 2026-01-21T15:54:42Z
Configure production-ready TLS certificates for NGINX
Configure a certificate issuer resource for Cert-Manager, which fetches the TLS certificate for NGINX to use. The certificate issuer uses the HTTP-01 challenge provider to accomplish this task.
Create the following manifest, replace <your-valid-email-address> with your own value, and save it as cert-manager-issuer.yaml:
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
name: letsencrypt-nginx
spec:
acme:
email: <your-valid-email-address>
server: https://acme-v02.api.letsencrypt.org/directory
privateKeySecretRef:
name: letsencrypt-nginx-private-key
solvers:
# Use the HTTP-01 challenge provider
- http01:
ingress:
class: nginx
The ACME issuer configuration has the following fields:
email: Email address to be associated with the ACME account.server: URL used to access the ACME server's directory endpoint.privateKeySecretRef: Kubernetes secret used to store the automatically generated ACME account private key.
The Issuer resource uses the HTTP-01 challenge.
kubectl apply -f cert-manager-issuer.yaml -n abcdesktop
The output looks similar to the following:
issuer.cert-manager.io/letsencrypt-nginx created
Verify that the Issuer resource was created:
kubectl get issuer -n abcdesktop
The output looks similar to the following:
NAME READY AGE
letsencrypt-nginx True 7s
Next, update each NGINX ingress resource to use TLS. Open the abcdesktop_host.yaml manifest, add the annotations and tls sections shown below, and save the file. You can also add nginx.ingress.kubernetes.io annotations to increase default timeout values. Replace hello.ovhcloud.pepins.net with your own FQDN.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: ingress-abcdesktop
namespace: abcdesktop
annotations:
cert-manager.io/issuer: letsencrypt-nginx
nginx.org/client-max-body-size: "256M"
nginx.ingress.kubernetes.io/proxy-connect-timeout: "30"
nginx.ingress.kubernetes.io/proxy-read-timeout: "1800"
nginx.ingress.kubernetes.io/proxy-send-timeout: "1800"
nginx.ingress.kubernetes.io/proxy-body-size: "256M"
spec:
tls:
- hosts:
- hello.ovhcloud.pepins.net
secretName: letsencrypt-nginx-echo
rules:
- host: hello.ovhcloud.pepins.net
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: http-router
port:
number: 80
ingressClassName: nginx
Apply the updated manifest to configure TLS:
kubectl apply -f abcdesktop_host.yaml -n abcdesktop
After a few minutes, check the state of the ingress object:
kubectl get ingress -n abcdesktop
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress-abcdesktop nginx hello.ovhcloud.pepins.net 51.68.26.94 80, 443 7m
Port 443 now appears in the PORTS column.
Check that the certificate resource has been created:
kubectl get certificates -n abcdesktop
The output looks similar to the following:
NAME READY SECRET AGE
letsencrypt-nginx-echo True letsencrypt-nginx-echo 3m27s
Run a curl command to confirm that your secured abcdesktop service is running:
curl -Li https://hello.ovhcloud.pepins.net/
HTTP/2 200
date: Wed, 21 Jan 2026 15:58:28 GMT
content-type: text/html
content-length: 56291
vary: Accept-Encoding
last-modified: Tue, 20 Jan 2026 12:19:32 GMT
etag: "696f72d4-dbe3"
accept-ranges: bytes
x-frame-options: SAMEORIGIN
x-xss-protection: 1; mode=block
strict-transport-security: max-age=31536000; includeSubDomains
<!doctype html>
...

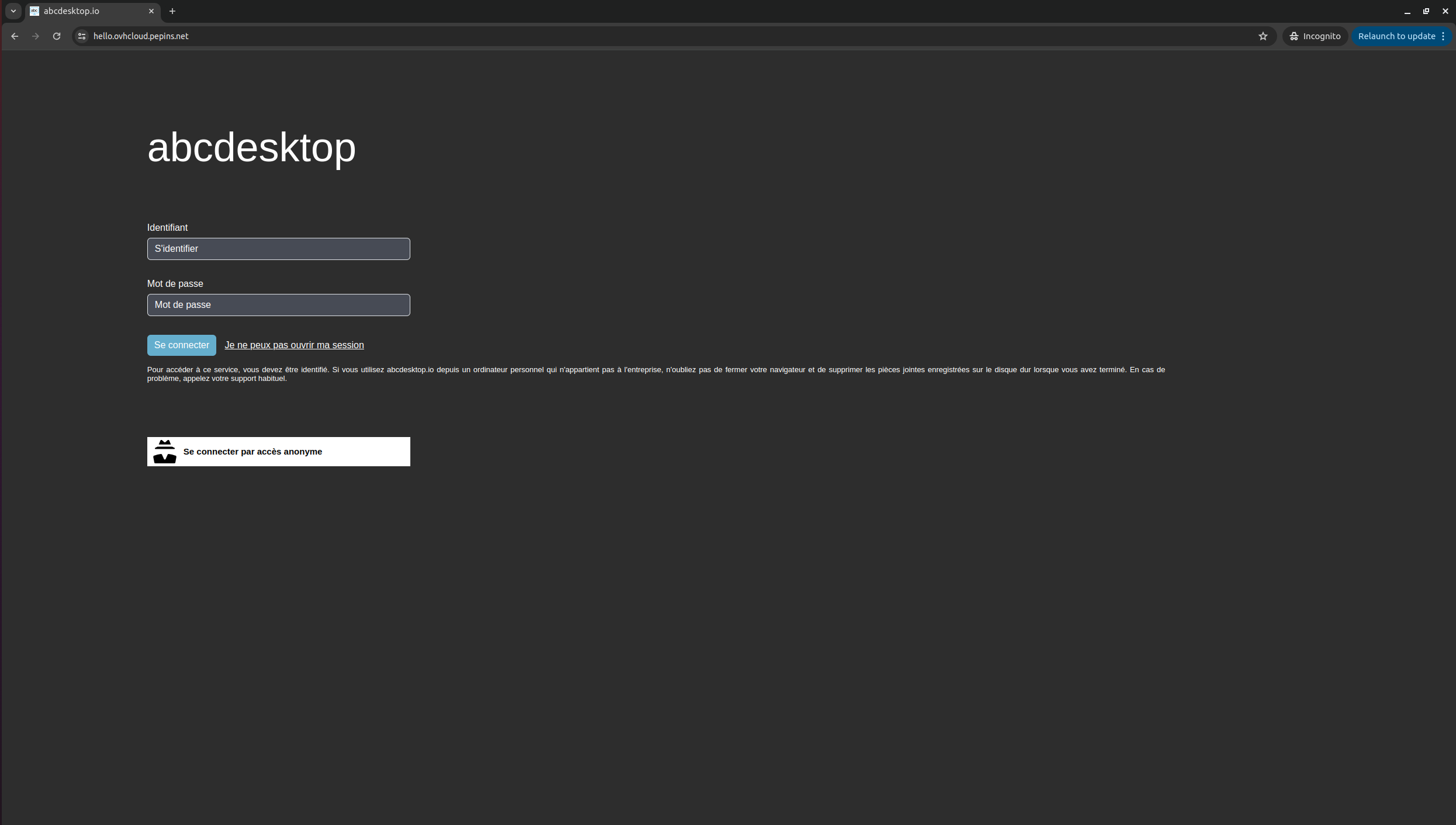

Reach your website using https protocol
You can now connect to your abcdesktop public website using the https protocol.

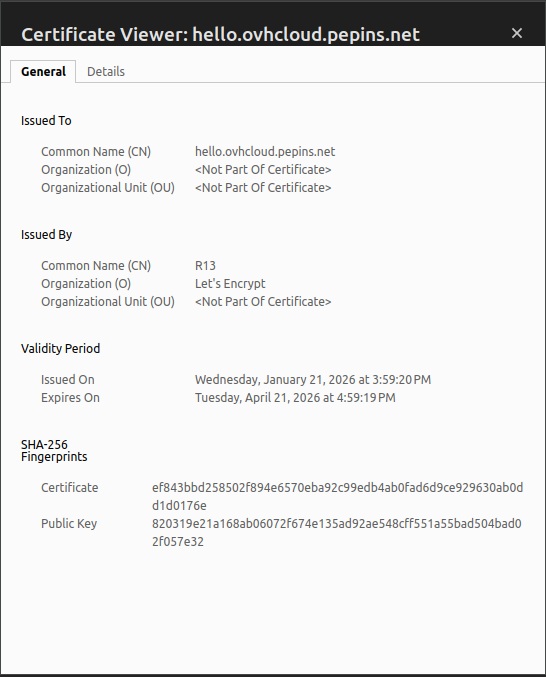

The connection is secured. You can inspect the certificate details.
See the real client IP address behind the ingress controller
Now that your application is publicly exposed, you may want to review the security and traffic behavior inside your cluster.
For example, the console module of abcdesktop is designed to be an administrator interface and should not be accessible to all users. For this reason, abcdesktop includes a pool of permitted IP addresses configured in the od.config file.
ManagerController': { 'permitip': [ '10.0.0.0/8', '172.16.0.0/12', '192.168.0.0/16', 'fd00::/8', '169.254.0.0/16', '127.0.0.0/8' ] }
By default, the configuration permits only private networks defined in rfc1918 and rfc4193. Since your service is publicly exposed, no visitor should be able to access the console. However, you may find that you can access the console normally — this is not the expected behavior.
Examine the Pyos logs to understand why the console behaves this way.
kubectl get pods -n abcdesktop
NAME READY STATUS RESTARTS AGE
console-od-5cd84fdd69-zbjxf 1/1 Running 0 11m
memcached-od-6ccd5b5f67-wwnw8 1/1 Running 0 11m
mongodb-od-0 2/2 Running 0 11m
nginx-od-784885cbd5-b7dqx 1/1 Running 0 11m
openldap-od-bb485cb4b-2ltm8 1/1 Running 0 11m
pyos-od-5c5cfdbfc8-t9r9m 1/1 Running 0 11m
router-od-6b7456b789-dsqdh 1/1 Running 0 11m
speedtest-od-8686c67749-hncft 1/1 Running 0 11m
kubectl exec -it pyos-od-5c5cfdbfc8-t9r9m -n abcdesktop -- bash
Defaulted container "pyos" out of: pyos, wait-for-mongo (init)
pyos-od-5c5cfdbfc8-t9r9m:/var/pyos# tail logs/trace.log
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG ] controllers.manager_controller.ManagerController.apifilter:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG ] controllers.manager_controller.ManagerController.ipfilter:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG ] controllers.manager_controller.ManagerController.ipfilter:anonymous ipsource 10.2.1.0 is permited in network 10.0.0.0/8
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 manager_controller [DEBUG ] controllers.manager_controller.ManagerController.handle_desktop_GET:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 orchestrator [DEBUG ] oc.od.orchestrator.ODOrchestratorKubernetes.__init__:anonymous load_incluster_config done
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 od [INFO ] __main__.trace_response:anonymous /manager/desktop b'[]'
2026-02-06 16:03:55 abcpool1-node-fa2594 139923627645752 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:05 abcpool1-node-fa2594 139923618954040 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:15 abcpool1-node-fa2594 139923617876792 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:25 abcpool1-node-fa2594 139923621108536 od [INFO ] __main__.trace_request:anonymous /healthz
As shown in the logs/trace.log output, the source IP address seen by Pyos is a private address such as 10.X.X.X (within the subnet defined as internal to your cluster), which falls within the permitted IP pool.
This occurs because the NGINX ingress controller does not forward the client's public IP address; instead, it proxies requests using its own cluster IP address. As a result, both the Router and Pyos see the IP address of the ingress controller load balancer.
To fix this, update the NGINX ingress controller configuration by creating a patch-ingress.yaml file with the following content:
controller:
service:
externalTrafficPolicy: "Local"
annotations:
# For Managed Kubernetes Service version < 1.31
# service.beta.kubernetes.io/ovh-loadbalancer-proxy-protocol: "v2"
# For Managed Kubernetes Service version >= 1.31
loadbalancer.openstack.org/proxy-protocol : "v2"
config:
enable-real-ip: "true"
use-forwarded-headers: "true"
use-proxy-protocol: "true"
proxy-real-ip-cidr: "10.0.0.0/8" # Or your cluster internal subnet
forwarded-for-header: "X-Forwarded-For"
compute-full-forwarded-for: "true"
recursive-get-headers: "true"
log-format-upstream: '{"time": "$time_iso8601", "remote_addr": "$proxy_protocol_addr", "x_forwarded_for": "$proxy_add_x_forwarded_for", "http_x_forwarded-for": "$http_x_forwarded_for", "request_id": "$req_id", "remote_user": "$remote_user", "bytes_sent": $bytes_sent, "request_time": $request_time, "status": $status, "vhost": "$host", "request_proto": "$server_protocol", "path": "$uri", "request_query": "$args", "request_length": $request_length, "method": "$request_method", "http_referrer": "$http_referer", "http_user_agent": "$http_user_agent" }'
Apply the updated configuration:
helm upgrade ingress-nginx ingress-nginx/ingress-nginx -n ingress-nginx -f patch-loadbalancer.yaml
Retry connecting to the console. You should now see an error message in the upper right corner.
Check the Pyos logs again; the source IP address should now reflect your public IP address.
kubectl exec -it pyos-od-5c5cfdbfc8-t9r9m -n abcdesktop -- bash
Defaulted container "pyos" out of: pyos, wait-for-mongo (init)
pyos-od-5c5cfdbfc8-t9r9m:/var/pyos# tail logs/trace.log
2026-02-06 16:25:25 abcpool1-node-fa2594 139923622185784 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:35 abcpool1-node-fa2594 139923627645752 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 od [INFO ] __main__.trace_request:anonymous /manager/healtz
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [DEBUG ] controllers.manager_controller.ManagerController.apifilter:anonymous
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [DEBUG ] controllers.manager_controller.ManagerController.ipfilter:anonymous
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [INFO ] controllers.manager_controller.ManagerController.ipfilter:anonymous ipsource <your_public_ip> access is denied, not in network list [IPNetwork('10.0.0.0/8'), IPNetwork('172.16.0.0/12'), IPNetwork('192.168.0.0/16'), IPNetwork('fd00::/8'), IPNetwork('169.254.0.0/16'), IPNetwork('127.0.0.0/8')]
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [ERROR ] controllers.manager_controller.ManagerController.raise_http_error_message:anonymous 403.7 - IP address access denied
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 od [INFO ] __main__.trace_response:anonymous /manager/healtz b'{"status": 403, "message": "403.7 - IP address access denied"}'
2026-02-06 16:25:45 abcpool1-node-fa2594 139923617876792 od [INFO ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:55 abcpool1-node-fa2594 139923621108536 od [INFO ] __main__.trace_request:anonymous /healthz
