Authentication `explicit` for LDAP Directory Services

authmanagers `explicit` Object

The explicit authentication provider authenticates users against a directory service using an LDAP bind operation. The bind operation authenticates the client to the directory server and establishes an authorization identity that governs all subsequent operations on that connection.

The explicit authentication configuration is defined as a dictionary object that contains one or more named provider entries.

For example:

authmanagers: {
  'external': {},
  'implicit': {},
  'explicit': {
    'planet': {
      'default': True,
      'ldap_timeout': 15,
      'ldap_protocol': 'ldap',
      'ldap_basedn': 'ou=people,dc=planetexpress,dc=com',
      'servers': [ 'openldap' ]
    }
  },
  'implicit': {}}

authmanagers: {
  'external': {},
  'implicit': {},
  'explicit': {
    'show_domains': True,
    'providers': {
      'LDAP': {
        'config_ref': 'ldapconfig',
        'enabled': True
       }}}}

In this example, the ldapconfig dictionary must contain a key named LDAP.

Variable name	Type	Description
`show_domains`	boolean	Controls whether the domain name is listed in the API `getclientdata` response. The default value is `False`.
`default_domain`	string	Not used by LDAP; only used by Active Directory.
`providers`	dictionary	`{ 'LDAP': { 'config_ref': 'ldapconfig', 'enabled': True }}`

Providers Configuration

The provider authentication configuration is defined as a dictionary object that must include a key name. The key name must match the value specified in both the providers configuration and the config_ref field.

Providers:

The provider is formatted as a dictionary:

{
 'planet': {
   'config_ref': 'ldapconfig',
   'enabled': True
 }
}

Variable name	Type	Description
config_ref	string	For increased readability, the domain configuration is defined in a dedicated dictionary using the key-value pair `'config_ref': 'ldapconfig'`, where the key is `config_ref` and the value is the name of the dictionary variable.
enable	boolean	Enables or disables the domain entry.

The ldapconfig is a dictionary.

For example:

ldapconfig: {
  'planet: {
    'default': True,
    'ldap_timeout': 15,
    'ldap_basedn': 'ou=people,dc=planetexpress,dc=com',
    'servers': [ 'ldap://192.168.8.195' ],
    'serviceaccount': { 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' }}}}

LDAP Configuration Reference

Variable name	Type	Description	Example
`default`	boolean	Use this domain as the default domain	True
`basedn`	string	LDAP Base Distinguished Name	`ou=people,dc=planetexpress,dc=com`
`servers`	list of string	List of LDAP server addresses (IP address or FQDN). If a server does not respond, the next one in the list is tried.	`[ 'ldap://192.168.1.12', 'ldaps://myldap.domain.org:636' ]`
`scope`	LDAP	Defines the scope of the LDAP search operation. `base` is the DN of the entry at which to start the search, and `scope` is one of `SCOPE_BASE` (search the object itself), `SCOPE_ONELEVEL` (search the object's immediate children), or `SCOPE_SUBTREE` (search the object and all its descendants).	`SCOPE_SUBTREE`
`auth_type`	string	LDAP authentication type. Supported values are `'ANONYMOUS'`, `'SIMPLE'`, `'KERBEROS'`, and `'NTLM'`.	`'SIMPLE'`
`kerberos_realm`	string	Optional Kerberos realm name	`REALM.MYDOMAIN.COM`
`domain`	string	Domain name used exclusively for NTLM authentication	`DOMAIN`
`ldap_connect_timeout`	integer	LDAP connection timeout in seconds. The default value is `None`.	3
`exec_timeout`	integer	Execution timeout in seconds for obtaining NTLM or CNTLM credentials. This timeout applies when running external command-line tools.	10
`users_ou`	string	Users Organization Unit	`ou=people,dc=planetexpress,dc=com`
`attrs`	list	List of default attributes to read from the user object. See the inetOrgPerson LDAP Object Class definition.	Default: `['objectClass', 'cn', 'sn', 'description', 'givenName', 'jpegPhoto', 'mail', 'ou', 'title', 'uid', 'distinguishedName', 'displayName']`
`filter`	string	LDAP filter used to locate the user object	`(&(objectClass=inetOrgPerson)(cn=%s))`
`group_filter`	string	LDAP filter used to locate group objects	`(&(objectClass=Group)(cn=%s))`
`group_attrs`	string	LDAP filter used to locate group object attributes	`(&(objectClass=Group)(cn=%s))`
`memberof_attribut_name`	string	Name of the attribute used for group membership: `'memberOf'` or `'groups'`	`'groups'`
`kerberos_krb5_conf`	string	Path to the Kerberos configuration file	`/etc/krb5.conf`
`reduce_roles_for_jwt`	string or None	Defines the role representation in the user's JWT	`'cn'`, `'raw'` or `None`

OpenLDAP Test Structure

When the explicit authentication manager is enabled, the web home page displays Login and Password input fields to authenticate users.

auth-provider-explicit

BaseDN

The basedn is dc=planetexpress,dc=com.

Admin Account

The admin account is defined as:

Admin	Secret
cn=admin,dc=planetexpress,dc=com	GoodNewsEveryone

Users OU

The Users Organization Unit is ou=people,dc=planetexpress,dc=com.

Users

cn=Hubert J. Farnsworth,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Hubert J. Farnsworth
sn	Farnsworth
description	Human
displayName	Professor Farnsworth
employeeType	Owner
employeeType	Founder
givenName	Hubert
jpegPhoto	JPEG-Photo (630x507 Pixel, 26780 Bytes)
mail	professor@planetexpress.com
mail	hubert@planetexpress.com
ou	Office Management
title	Professor
uid	professor
userPassword	professor

cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Philip J. Fry
sn	Fry
description	Human
displayName	Fry
employeeType	Delivery boy
givenName	Philip
jpegPhoto	JPEG-Photo (429x350 Pixel, 22132 Bytes)
mail	fry@planetexpress.com
ou	Delivering Crew
uid	fry
userPassword	fry

cn=John A. Zoidberg,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	John A. Zoidberg
sn	Zoidberg
description	Decapodian
displayName	Zoidberg
employeeType	Doctor
givenName	John
jpegPhoto	JPEG-Photo (343x280 Pixel, 26438 Bytes)
mail	zoidberg@planetexpress.com
ou	Staff
title	Ph. D.
uid	zoidberg
userPassword	zoidberg

cn=Hermes Conrad,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Hermes Conrad
sn	Conrad
description	Human
employeeType	Bureaucrat
employeeType	Accountant
givenName	Hermes
mail	hermes@planetexpress.com
ou	Office Management
uid	hermes
userPassword	hermes

cn=Turanga Leela,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Turanga Leela
sn	Turanga
description	Mutant
employeeType	Captain
employeeType	Pilot
givenName	Leela
jpegPhoto	JPEG-Photo (429x350 Pixel, 26526 Bytes)
mail	leela@planetexpress.com
ou	Delivering Crew
uid	leela
userPassword	leela

Groups

cn=admin_staff,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	admin_staff
member	cn=Hubert J. Farnsworth,ou=people,dc=planetexpress,dc=com
member	cn=Hermes Conrad,ou=people,dc=planetexpress,dc=com

cn=ship_crew,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	ship_crew
member	cn=Turanga Leela,ou=people,dc=planetexpress,dc=com
member	cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com
member	cn=Bender Bending Rodríguez,ou=people,dc=planetexpress,dc=com

Entering User Credentials

Start your web browser and open the URL http://localhost.

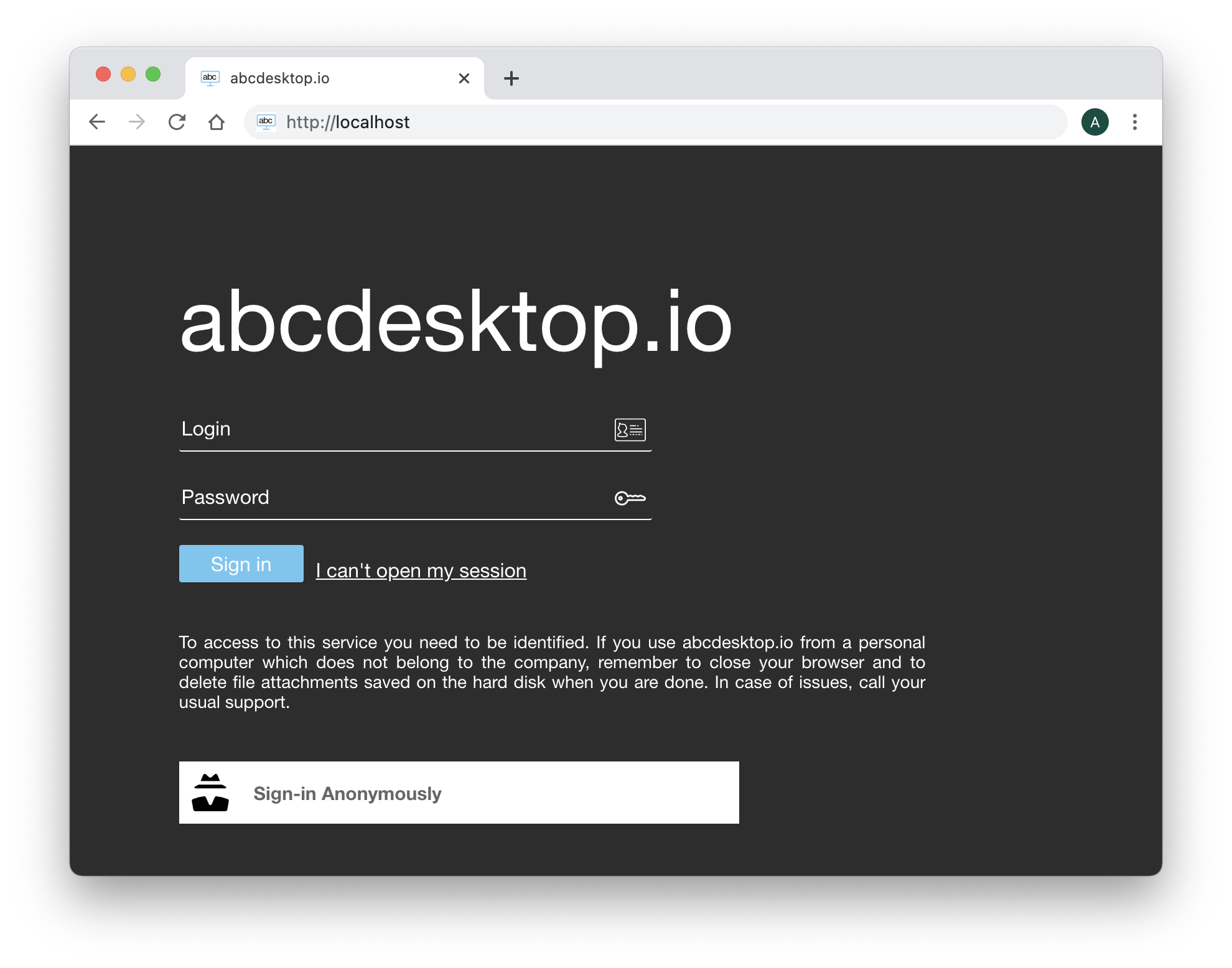

The web home page displays Login and Password input fields to authenticate users.

You can use any user from the list above. For example:

Credentials	Value
Login	Turanga Leela
Password	leela

auth-provider-explicit

Enter the login credentials:

Turanga Leela as the login and leela as the password, then click the Sign in button.

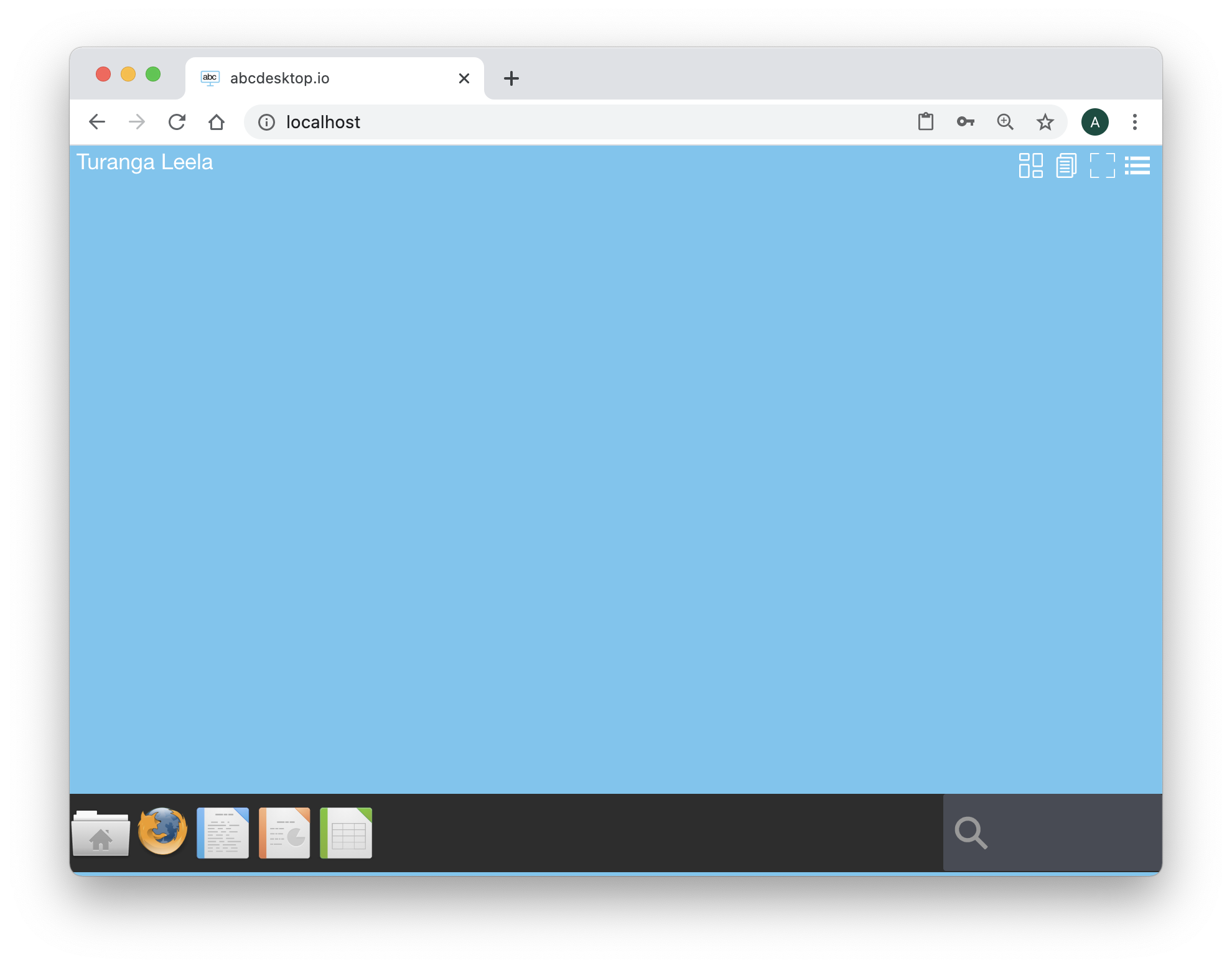

auth-provider-explicit-ldap-login-user-done

The user name Turanga Leela is displayed at the top of the screen: auth-provider-explicit-ldap-login-user-turanga

Session Persistence

Start LibreOffice Writer and create a new document. Type a few words, for example:

I like this amazing project abcdesktop.io

Do not save the document. Close the web browser.

Reopen the web browser, navigate to the same URL, and sign in again using the same credentials: Turanga Leela as the login and leela as the password. Click the Sign in button.

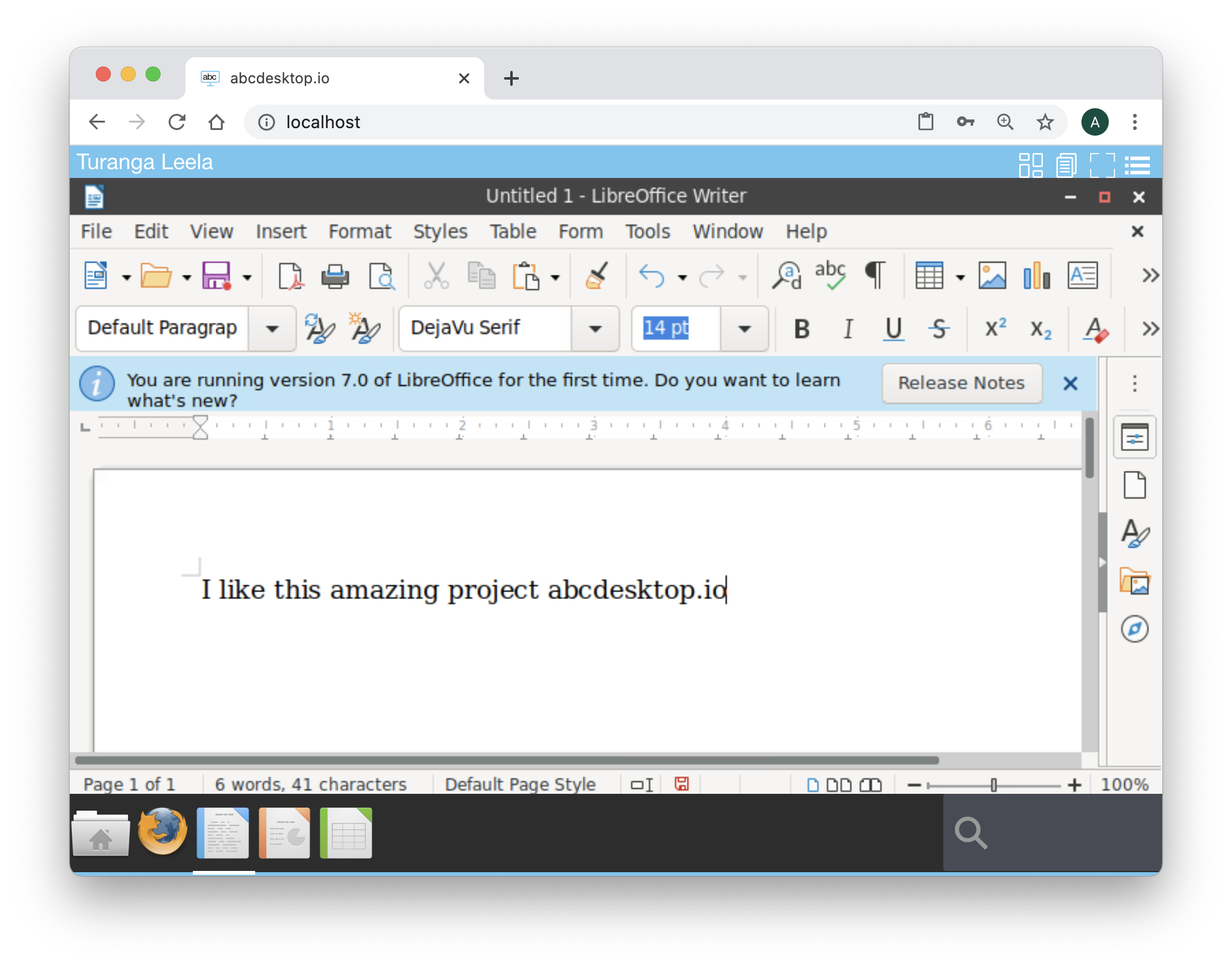

LibreOffice Writer remains running, and the text I like this amazing project abcdesktop.io is still present in the document.

session remained

All applications are preserved across sessions.

You have successfully verified the explicit authentication configuration, deployed an OpenLDAP directory service, and confirmed that user sessions persist across browser restarts.
