executeclasses

The executeclasses configuration defines resource profiles for desktop pods and application containers. It allows you to control resource allocation either by defining static rules or by letting users select from a predefined set of profiles. The executeclasses value is a dictionary in which each entry describes a distinct resource profile.

executeclasses dictionary

executeclasses : {
  'default':{
    'nodeSelector':None,
    'description': 'default: up to 4 CPU cores and 8Gi',
    'runtimeClassName': None,
    'resources':{
      'requests':{'memory':"576Mi",'cpu':"220m"},
      'limits':  {'memory':"8Gi",'cpu':"4000m"}
    }
  },
  'bronze':{
    'nodeSelector':None,
    'runtimeClassName': None,
    'description': 'bronze: up to 2 CPU cores and 8Gi',
    'resources':{
      'requests':{'memory':"576Mi",'cpu':"220m"},
      'limits':  {'memory':"8Gi",'cpu':"2000m"}
    }
  },
  'silver':{
    'nodeSelector': None,
    'description': 'silver: 4 CPU cores and 32Gi RAM',
    'runtimeClassName': None,
    'resources':{
      'requests':{'memory':"2Gi",'cpu':"2000m"},
      'limits':{'memory':"32Gi",'cpu':"4000m"}
    }
  },
  'gold':{
    # give a gpu to graphical container
    'containers' : { 'graphical': { 'resources': { 'limits': { 'nvidia.com/gpu':'1' } } } },
    'nodeSelector':{'nvidia.com/gpu': 'true'},
    'description': 'gold: 4 CPU cores, 32Gi RAM and 1 GPU',
    'runtimeClassName': 'nvidia',
    'resources':{
      'requests':{'memory':"2Gi",'cpu':"4000m"},
      'limits':  {'memory':"32Gi",'cpu':"4000m"}
    }
  },
  'platinum':{
    # give a gpu to graphical container
    'containers' : { 'graphical': { 'resources': { 'limits': { 'nvidia.com/gpu':'1' } } } },
    # nodeselector optional
    'nodeSelector':{'nvidia.com/gpu': 'true'},
    # this appears only on web interface
    'description': 'platinum: 8 CPU cores, 128G RAM and 1 GPU',
    'runtimeClassName': 'nvidia',
    'resources':{
      'requests':{'memory':"4Gi",'cpu':"4000m"},
      'limits':{'memory':"128Gi",'cpu':"8000m"}
    }
  }}

The 'default' entry is mandatory and must always be present.

key	type	Description	Values
containers	dict	Merge additional per-container configuration (e.g., resource limits)	{ 'graphical': { 'resources': { 'limits': { 'nvidia.com/gpu':'1' } } } }
nodeSelector	dict	Merge additional node selector constraints	{'nvidia.com/gpu': 'true'}
description	string	Display text shown on the login page	'platinum: 8 CPU cores, 128G RAM and 1 GPU'
runtimeClassName	string	(Optional) Name of the Kubernetes runtime class	nvidia
resources	dict	Pod resource requests and limits	{ 'requests': {'memory':"4Gi",'cpu':"4000m"}, 'limits':{'memory':"128Gi",'cpu':"8000m"} }

Define the executeclassname value

The executeclassname variable is an entry key in the executeclasses dictionary. It determines the resources, nodeSelector, and runtimeClassName applied to a user's pod. The executeclassname value is resolved during the authentication process.

A user can choose the executeclassname value from a predefined list, or it can be assigned automatically via rules. If executeclassname is not set, it defaults to the string 'default', and the corresponding entry executeclasses['default'] is used.

Set executeclassname by rules

Update your od.config file to add a new rule. The label of the rule must be executeclassname, and the load value sets the executeclassname.

    'rule-executeclass': {
            'conditions' : [ { 'memberOf': 'cn=ship_crew,ou=people,dc=planetexpress,dc=com',   'expected' : True  } ],
            'expected' : True,
            'label':'executeclassname',
            'load': 'silver'
    },

If the user is a member of the group cn=ship_crew,ou=people,dc=planetexpress,dc=com, the label executeclassname is set to the value silver. A complete example of the ldapconfig is shown below.

ldapconfig : {
    'planet': {
            'default'       : True,
            'ldap_timeout'  : 15,
            'ldap_protocol' : 'ldap',
            'ldap_basedn'   : 'ou=people,dc=planetexpress,dc=com',
            'servers'       : [ 'openldap' ],
            'serviceaccount': { 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' },
            'policies': {
                    'acls': None,
                    'rules' : {
                            'rule-dummy' : {
                              'conditions' : [ {'boolean':True, 'expected':True } ],
                                                            'expected' : True,
                                                            'label':'labeltrue'
                            },
                            'rule-ship': {
                                    'conditions' : [ { 'memberOf': 'cn=ship_crew,ou=people,dc=planetexpress,dc=com',   'expected' : True  } ],
                                    'expected' : True,
                                    'label':'shipcrew'
                            },
                            'rule-executeclass': {
                                    'conditions' : [ { 'memberOf': 'cn=ship_crew,ou=people,dc=planetexpress,dc=com',   'expected' : True  } ],
                                    'expected' : True,
                                    'label':'executeclassname',
                                    'load': 'silver'
                            },
                            'rule-staff': {
                                    'conditions' : [ { 'memberOf': 'cn=admin_staff,ou=people,dc=planetexpress,dc=com', 'expected' : True  } ],
                                    'expected' : True,
                                    'label': 'adminstaff'
                            }
                    }
            } } }

• Save the updated od.config file and reload the abcdesktop configuration.

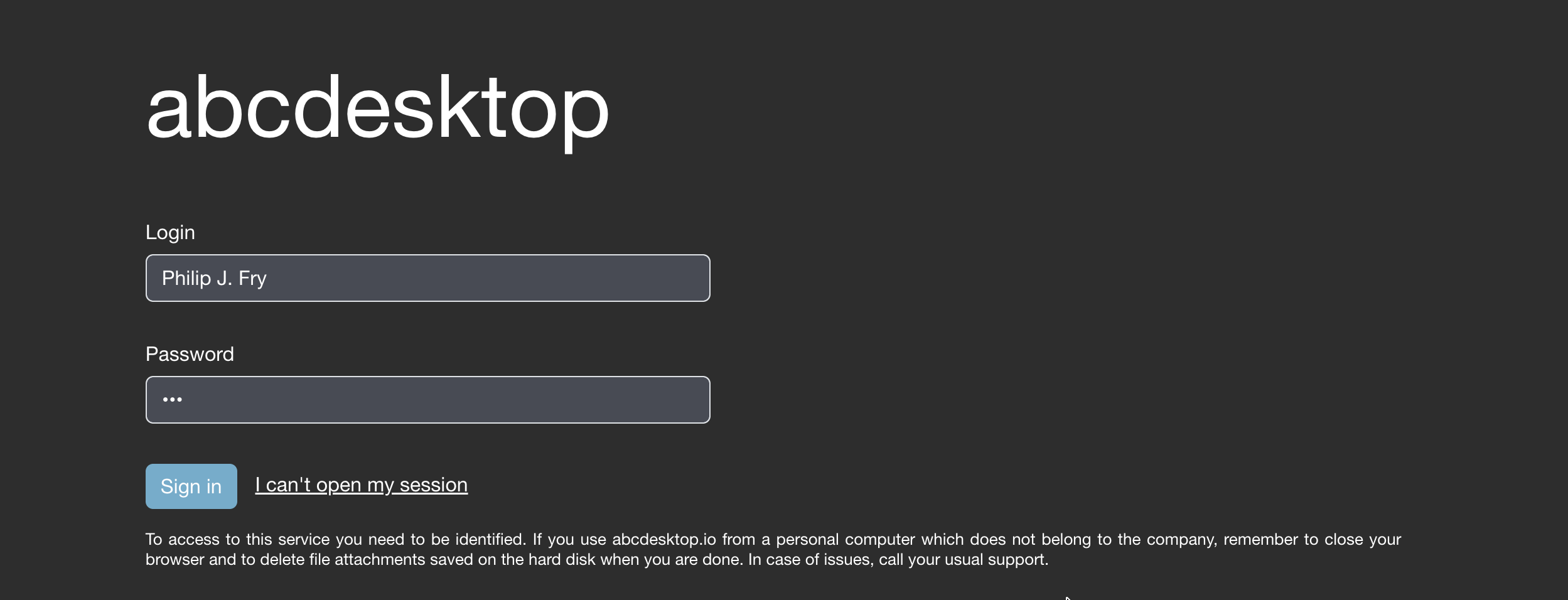

Navigate to the abcdesktop service URL and sign in as a user who is a member of ship_crew. Philip J. Fry is a member of ship_crew.

The pod is created with the requested resources.

• Get the pod description.

NAMESPACE=abcdesktop
kubectl get pods -l type=x11server -n $NAMESPACE

The expected stdout output is:

NAME             READY   STATUS    RESTARTS   AGE
fry-f7c42        4/4     Running   0          7s

Inspect the user pod named fry-f7c42; replace POD_NAME with your actual pod name.

NAMESPACE=abcdesktop
POD_NAME=fry-f7c42
kubectl describe pods $POD_NAME -n $NAMESPACE

A label executeclassname is applied to the user's pod:

Labels:           abcdesktop/role=desktop
                  access_provider=planet
                  access_providertype=ldap
                  access_userid=fry
                  access_username=philip-j.-fry
                  executeclassname=silver
                  ...

The resource limits and requests are derived from the silver execute class.

Resources:
  Limits:
    cpu:     4
    memory:  32Gi
  Requests:
    cpu:     2
    memory:  2Gi

• Read the execute class information from the web user interface.

The dialog box settings:user information displays the user's labels.

The current user has selected silver.

• Open a webshell to read the environment variables.

Inside the pod, the environment variable ABCDESKTOP_EXECUTE_CLASSNAME is set to the value silver.

echo $ABCDESKTOP EXECUTE_CLASSNAME
silver

Inside the pod, the environment variable ABCDESKTOP_EXECUTE_CLASS is set to the selected JSON configuration object.

echo $ABCDESKTOP_EXECUTE_CLASS
{"nodeSelector": {}, "description": "silver: 4 CPU cores and 32Gi RAM", "runtimeClassName": null, "resources": {"requests": {"memory": "2Gi", "cpu": "2000m"}, "limits": {"memory": "32Gi", "cpu": "4000m"}}}

Allow users to choose the executeclassname

To allow users to choose the executeclassname, configure the desktop.features_permissions option in your abcdesktop config file. desktop.features_permissions is a list of strings.

# features_permissions
# read executeclasses and permit a user to set a dedicated class name as desktop features
# 'read' features_permissions is exposed to the frontend
# 'submit' features_permissions can be set to create a desktop
#
desktop.features_permissions : [ 'read', 'submit' ]

• To display the available execute classes on the login page, add read to the list.
• To allow users to select a class when creating a desktop, add submit to the list.

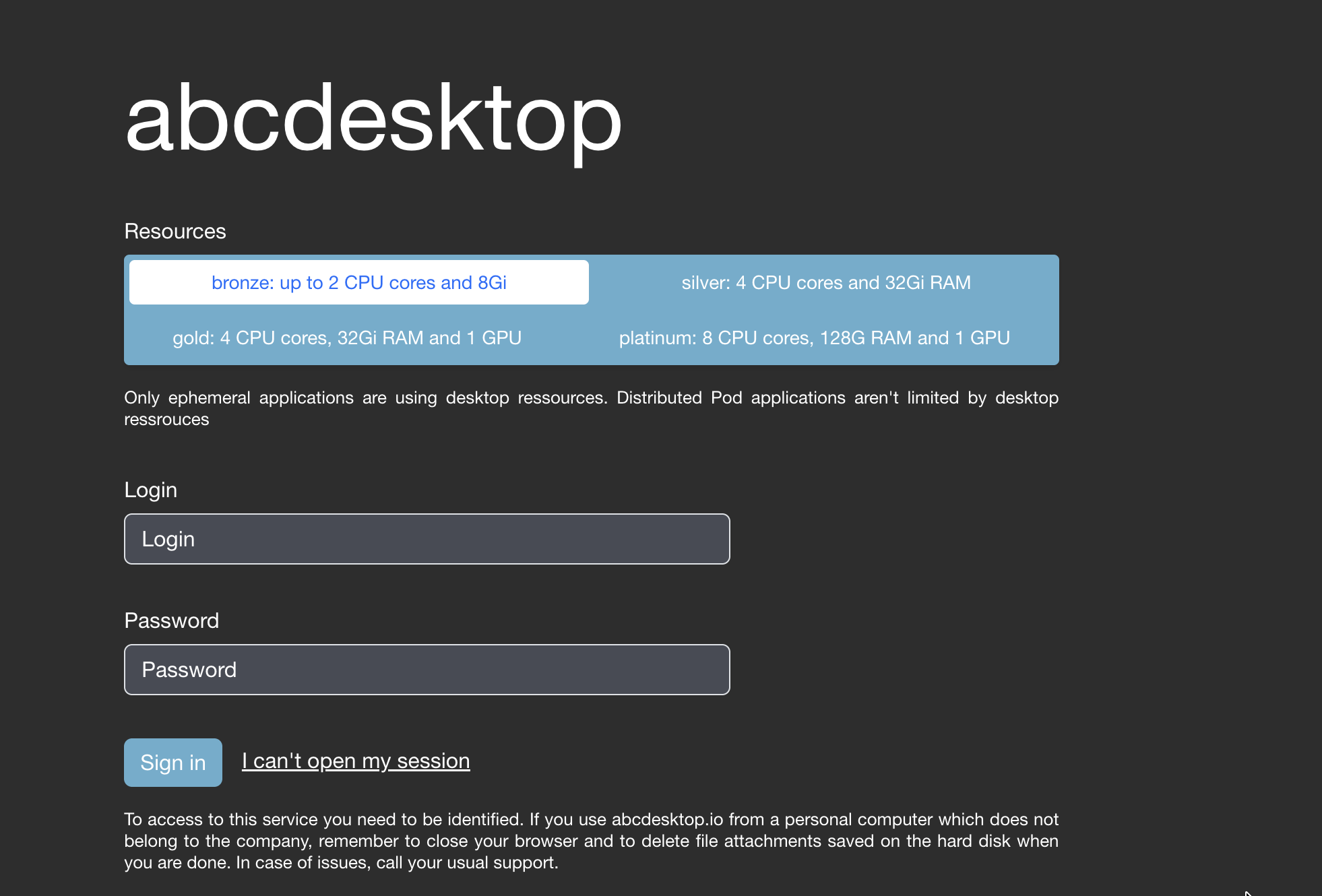

Enabling both options modifies the abcdesktop login page to display the description of each executeclasses entry, allowing users to make a selection before launching their desktop.

In this case desktop.features_permissions : [ 'read', 'submit' ]

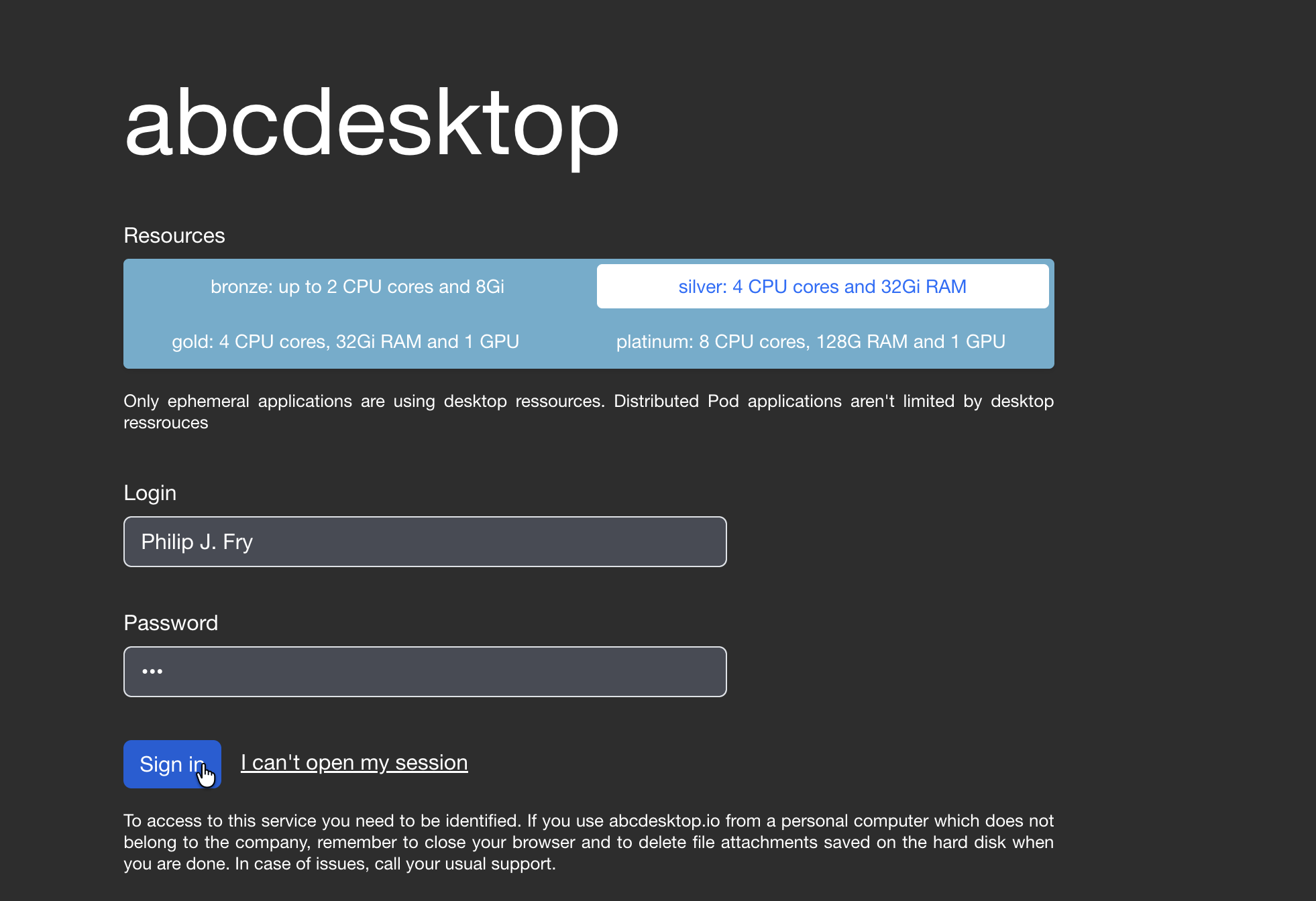

The user can choose an entry from the available executeclasses values.

The executeclassname is set with the user's selected entry.

The current user has selected silver.

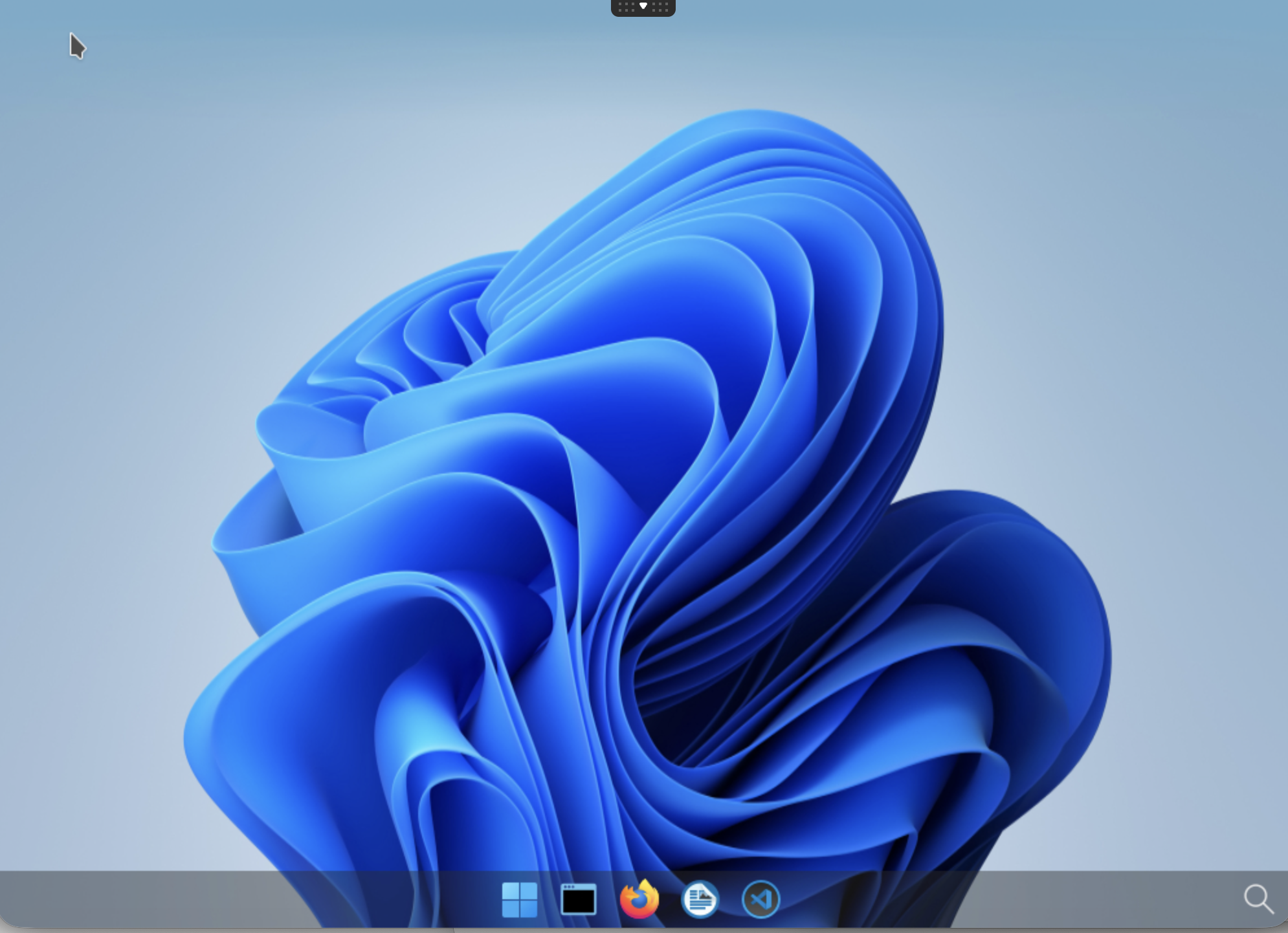

The pod is created with the requested resources.

• List the labels of the user's pod.

A label executeclassname is applied to the user's pod:

Labels:           abcdesktop/role=desktop
                  access_provider=planet
                  access_providertype=ldap
                  access_userid=fry
                  access_username=philip-j.-fry
                  executeclassname=silver
                  ...

The resource limits and requests are derived from the silver execute class.

Resources:
  Limits:
    cpu:     4
    memory:  32Gi
  Requests:
    cpu:     2
    memory:  2Gi

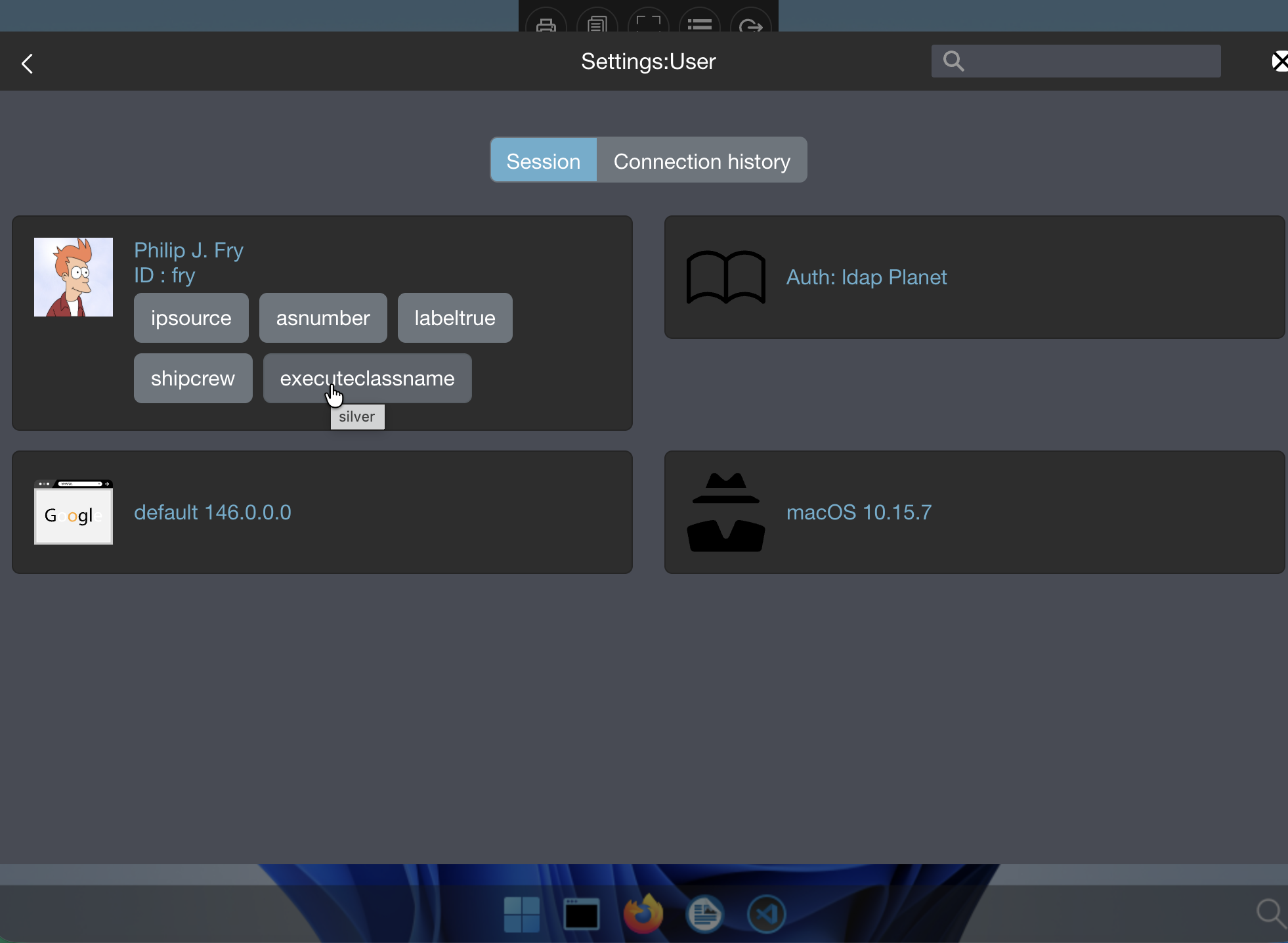

The dialog box settings:user information displays the user's labels.

The current user has selected silver.

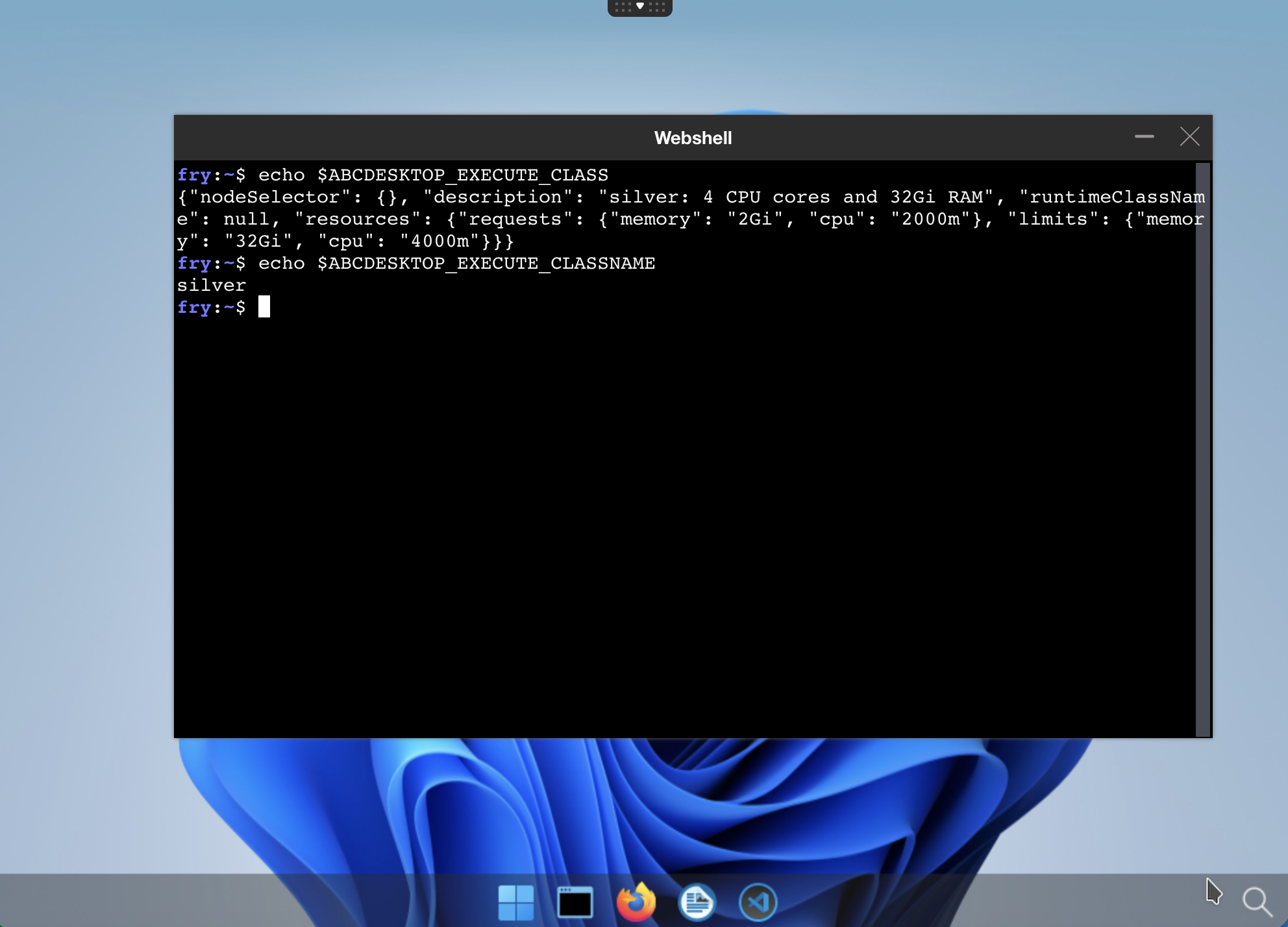

• Open a webshell to read the environment variables.

Inside the pod, the environment variable ABCDESKTOP_EXECUTE_CLASSNAME is set to the value silver.

echo $ABCDESKTOP EXECUTE_CLASSNAME
silver

Inside the pod, the environment variable ABCDESKTOP_EXECUTE_CLASS is set to the selected JSON configuration object.

echo $ABCDESKTOP_EXECUTE_CLASS
{"nodeSelector": {}, "description": "silver: 4 CPU cores and 32Gi RAM", "runtimeClassName": null, "resources": {"requests": {"memory": "2Gi", "cpu": "2000m"}, "limits": {"memory": "32Gi", "cpu": "4000m"}}}

You can adjust pod resources either by defining authentication rules that automatically assign an execute class, or by configuring desktop.features_permissions to allow users to select from the profiles defined in executeclasses.
