Shared Volumes

Users may need to access shared files across sessions or desktops. This page describes two methods for mounting a shared directory inside user pods: using hostPath for node-local storage, and using a PersistentVolumeClaim backed by an NFS server for cluster-wide accessibility. Access to shared volumes is controlled through rules defined in desktop.policies.

Check your rules in `authmanagers` `ldapconfig`

Note

The ldapconfig for the demo LDAP server adds a few default rules. To get more information about the ldap server read the docker-test-openldap web page.

The user Philip J. Fry is a member of the group ship_crew.

Details of the ship_crew group cn=ship_crew,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	ship_crew
member	cn=Turanga Leela,ou=people,dc=planetexpress,dc=com
member	cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com
member	cn=Bender Bending Rodríguez,ou=people,dc=planetexpress,dc=com

ldapconfig : {
        'planet': {
                'default'       : True,
                'ldap_timeout'  : 15,
                'ldap_protocol' : 'ldap',
                'ldap_basedn'   : 'ou=people,dc=planetexpress,dc=com',
                'servers'       : [ 'openldap' ],
                'secure'        : False,
                'serviceaccount': { 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' },
                'policies': {
                    'acls': None,
                    'rules' : {
                        'rule-dummy' : {
                            'conditions' : [ {'boolean':True, 'expected':True } ],
                            'expected' : True,
                            'label':'labeltrue'
                        },
                        'rule-ship': {
                            'conditions' : [ { 'memberOf': 'cn=ship_crew,ou=people,dc=planetexpress,dc=com',   'expected' : True  } ],
                            'expected' : True,
                            'label':'shipcrew'
                        },
                        'rule-test': {
                            'conditions' : [ { 'memberOf': 'cn=admin_staff,ou=people,dc=planetexpress,dc=com', 'expected' : True  } ],
                            'expected' : True,
                            'label': 'adminstaff'
                        }
                    }
                } } }

This provider defines three rules:

labeltrue always for all users
shipcrew if the user is member of cn=ship_crew,ou=people,dc=planetexpress,dc=com group
adminstaff if the user is a member of cn=admin_staff,ou=people,dc=planetexpress,dc=com group

Open your web browser and log in as Philip J. Fry in your abcdesktop web service.

Open the Menu | User tab

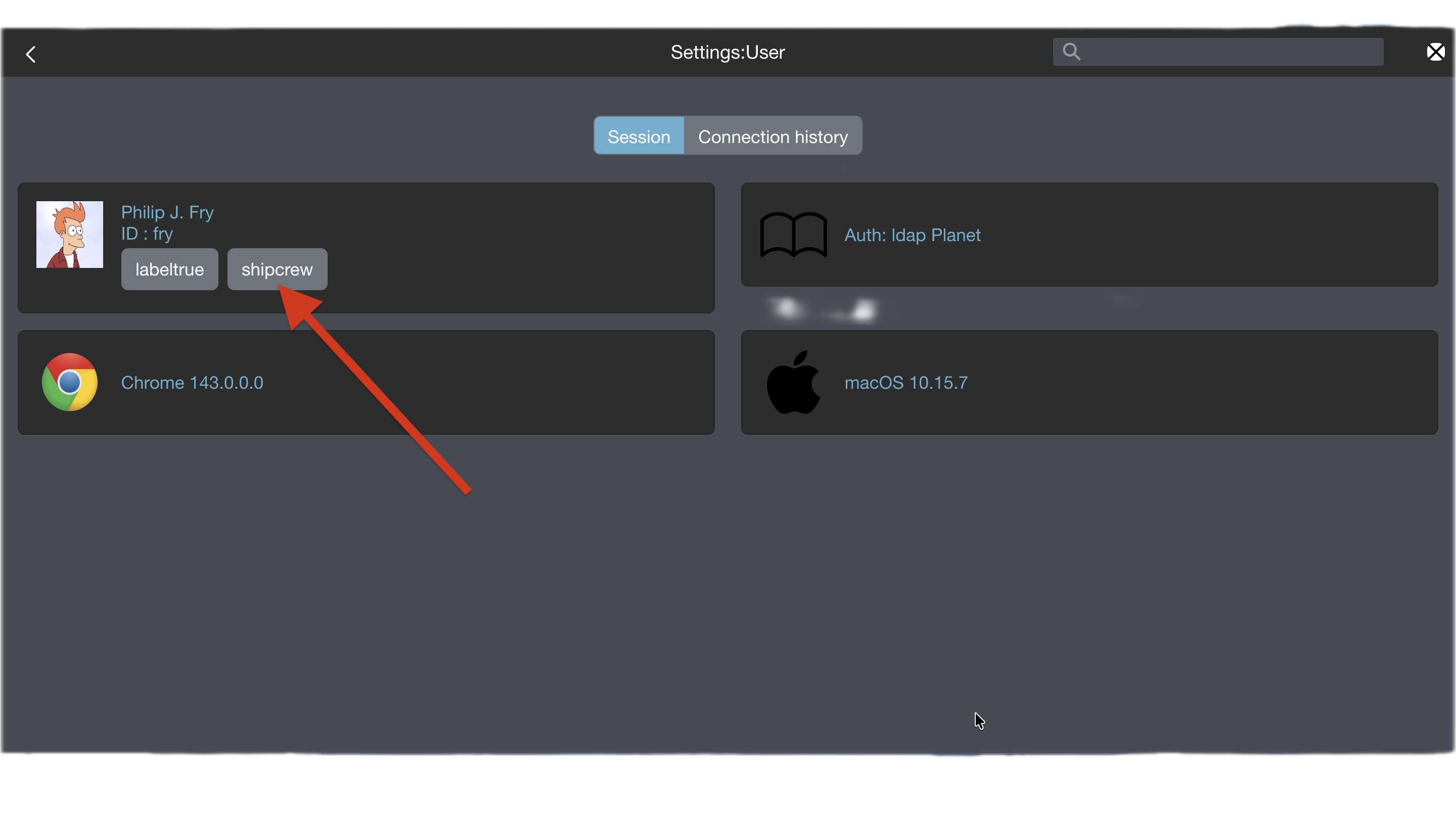

labels for user Philip J. Fry

When Philip J. Fry is logged in, Philip J. Fry gets the labels labeltrue and shipcrew.

Define volume using `hostPath`

Update `od.config` file

Add rules to the desktop.policies dictionary

desktop.policies: {
  'rules': {
    'volumes': {
      'shipcrew': {
        'type': 'hostPath',
        'name': 'mntmyproject',
        'path': '/mnt',
        'mountPath': '/mnt/shared_data'
      }
    },
    'network': {}
  },
  'acls' : {} }

On your worker node, make sure that the /mnt directory exists.

This policy adds a new volume mntmyproject defined as a hostPath to the user's pod and mounts it as /mnt/shared_data.

Save your od.config file.

Apply the new config file

Replace the previous ConfigMap:

NAMESPACE=abcdesktop
kubectl create -n $NAMESPACE configmap abcdesktop-config --from-file=od.config -o yaml --dry-run=client | kubectl replace -n $NAMESPACE -f -

Expected output:

configmap/abcdesktop-config replaced

Restart pyos to apply the new ConfigMap:

NAMESPACE=abcdesktop
kubectl rollout restart deployment pyos-od -n $NAMESPACE

Expected output:

deployment.apps/pyos-od restarted

Your new configuration is now active.

Restart a new desktop as `Philip J. Fry`

Create a new desktop for Philip J. Fry
Get the name of the Philip J. Fry pod

NAMESPACE=abcdesktop
kubectl get pods -l type=x11server -n $NAMESPACE
NAME        READY   STATUS    RESTARTS   AGE
fry-06c5f   4/4     Running   0          3m24s

Describe the Philip J. Fry pod, and look for the Mounts and Volumes entries

NAMESPACE=abcdesktop
kubectl desribe pods fry-06c5f -n $NAMESPACE

The mount for hostpath-mntmyproject-fry is mapped to /mnt/shared_data.

    Mounts:
      /etc/sudoers.d from sudoers (rw)
      /home/fry from home (rw)
      /home/fry/.cache from cache (rw)
      /mnt/shared_data from hostpath-mntmyproject-fry (rw)
      /run/user/ from runuser (rw)
      /tmp from tmp (rw)
      /tmp/.X11-unix from x11socket (rw)
      /tmp/.cupsd from cupsdsocket (rw)
      /var/lib/extrausers from extrausers (rw)
      /var/log/desktop from log (rw)
      /var/run/dbus from rundbus (rw)
      /var/run/desktop from run (rw)
      /var/secrets/abcdesktop/vnc from auth-vnc-fry (rw)

The volume hostpath-mntmyproject-fry is defined as

  hostpath-mntmyproject-fry:
    Type:          HostPath (bare host directory volume)
    Path:          /mnt
    HostPathType:  DirectoryOrCreate

A new mount /mnt/shared_data from hostpath-mntmyproject-fry (rw) is added, backed by the HostPath volume hostpath-mntmyproject-fry pointing to /mnt.

Check that your file system's permissions are set to your users

The volume hostpath-mntmyproject-fry is also mounted for applications ephemeral containers and pods.

Start the webshell application in the web interface
Now create a file inside the /mnt/shared_data folder, for example hello.txt

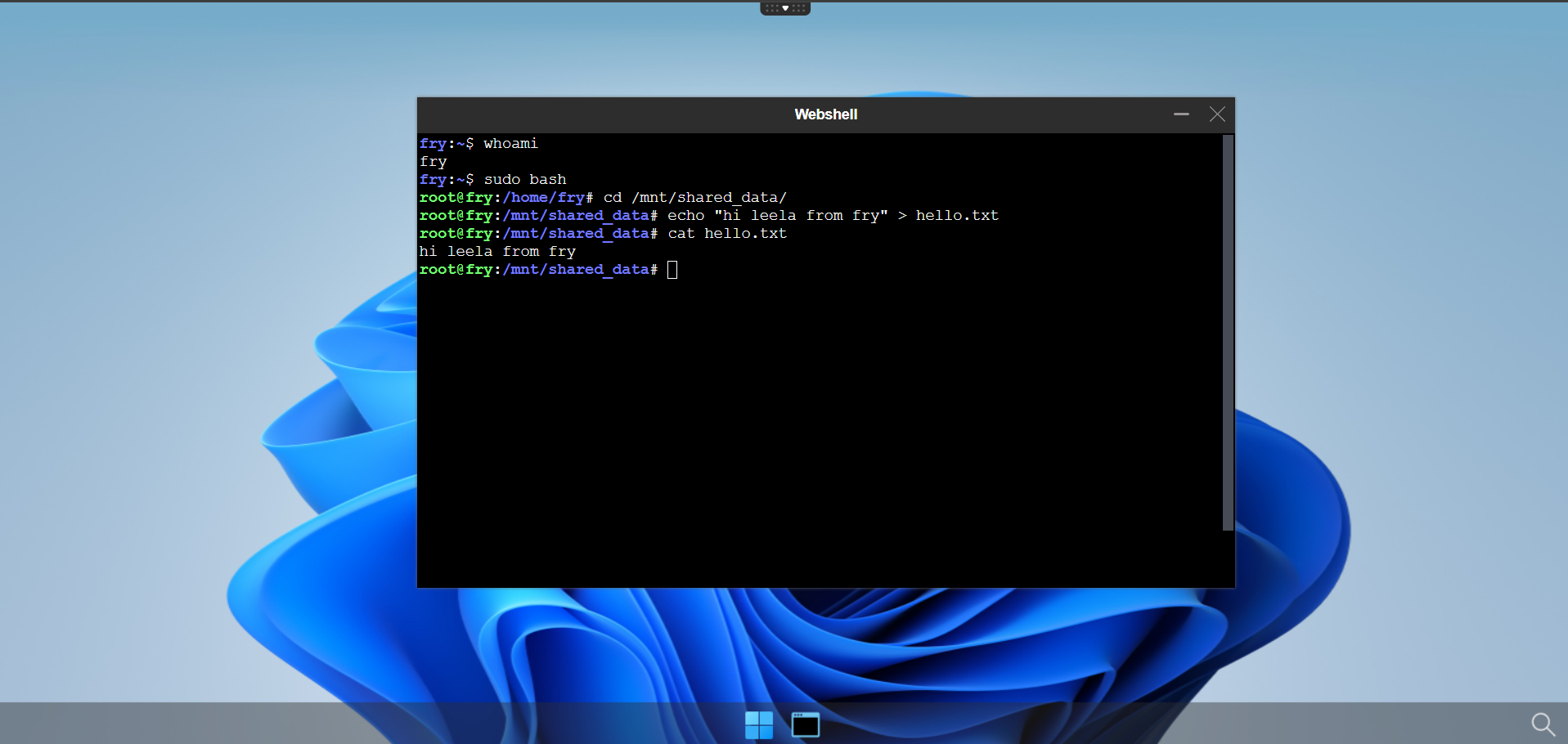

/mnt/shared_data files

Start a new desktop as `Turanga Leela`

Now start a desktop as Turanga Leela. As a member of the shipcrew group, you should see the file you created with Philip J. Fry.

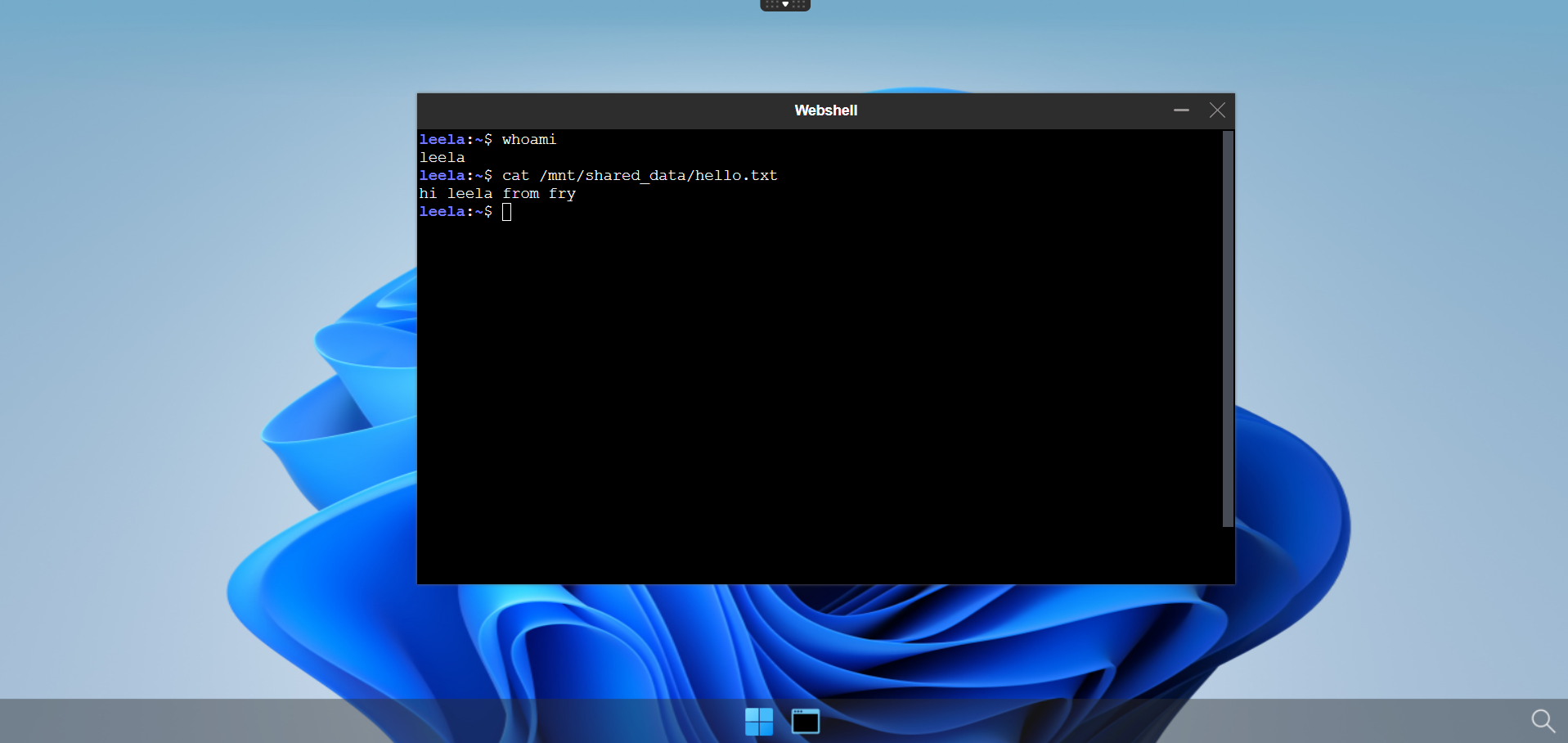

shared_data with leela

Define volume using `pvc` bounded on nfs server

Note

For this part of the tutorial, you should have an NFS server already configured. If not, please follow the first chapter of this tutorial.

Create nfs type `PersistentVolume`

You must first create an NFS-type PersistentVolume bound to your NFS server.

The following YAML defines an NFS-type PersistentVolume. Save it as nfs-pv-shared-data-abcdesktop.yaml:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: shared-shipcrew-pv
spec:
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: ""
  claimRef:     # Define here claimName and namespace for bounding your PVC
    name: shared-shipcrew-pvc
    namespace: abcdesktop     # You can replace it by your abcdesktop namespace if different
  nfs:
    path: /data/nfs_share/shared_data_shipcrew
    server: X.X.X.X     # Here goes your nfs server IP address

Apply it by running the following command:

kubectl apply -f nfs-pv-shared-data-abcdesktop.yaml

Create `PersistentVolumeClaim`

With the PersistentVolume created and bound to the NFS server, create a PersistentVolumeClaim to reference the shared-shipcrew-pv PersistentVolume.

Save the following content to a nfs-pvc-shared-data-abcdesktop.yaml file:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:      # This matches the claimRef field of the PV yaml file
  name: shared-shipcrew-pvc
  namespace: abcdesktop     # Or your abcdesktop namespace if different
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  storageClassName: ""
  volumeName: shared-shipcrew-pv      # Name of your persistent volume

Warning

Setting accessModes to ReadWriteMany is required. Without it, the PVC cannot be mounted simultaneously across multiple user pods, which defeats the purpose of shared storage.

Apply it by running the following command:

NAMESPACE=abcdesktop
kubectl apply -f nfs-pvc-shared-data-abcdesktop.yaml -n $NAMESPACE

Verify that both the PV and PVC have been correctly bound:

NAMESPACE=abcdesktop
kubectl get pvc -n $NAMESPACE
NAME                  STATUS   VOLUME               CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
shared-shipcrew-pvc   Bound    shared-shipcrew-pv   1Gi        RWX                           <unset>                 67m

kubectl get pv
NAME                 CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                            STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
shared-shipcrew-pv   1Gi        RWX            Retain           Bound    abcdesktop/shared-shipcrew-pvc                  <unset>                          3h11m

Update `od.config` file

Add rules to the desktop.policies dictionary

desktop.policies: {
  'rules': {
    'volumes': {
      'shipcrew': {
        'type': 'pvc',
        'name': 'shared-shipcrew-pvc',
        'claimName': 'shared-shipcrew-pvc',
        'mountPath': '/mnt/shared_data_pvc'
      }
    },
    'network': {}
  },
  'acls' : {} }

On your worker node, make sure that the /mnt directory exists.

This policy adds a new volume shared-shipcrew-pvc defined as a pvc to the user's pod and mounts it as /mnt/shared_data_pvc.

Save your od.config file.

Apply the new config file

Replace the previous ConfigMap:

NAMESPACE=abcdesktop
kubectl create -n $NAMESPACE configmap abcdesktop-config --from-file=od.config -o yaml --dry-run=client | kubectl replace -n $NAMESPACE -f -

Expected output:

configmap/abcdesktop-config replaced

Restart pyos to apply the new ConfigMap:

NAMESPACE=abcdesktop
kubectl rollout restart deployment pyos-od -n $NAMESPACE

Expected output:

deployment.apps/pyos-od restarted

Your new configuration is now active.

Restart a new desktop as `Philip J. Fry`

Create a new desktop for Philip J. Fry
Get the name of the Philip J. Fry pod

NAMESPACE=abcdesktop
kubectl get pods -l type=x11server -n $NAMESPACE
NAME        READY   STATUS    RESTARTS   AGE
fry-06c5f   4/4     Running   0          3m24s

Describe the Philip J. Fry pod, and look for the Mounts and Volumes entries

kubectl desribe pods fry-06c5f -n abcdesktop

The mount for pvc-shared-shipcrew-pvc-fry is mapped to /mnt/shared_data_pvc.

    Mounts:
      /etc/sudoers.d from sudoers (rw)
      /home/fry from home (rw)
      /home/fry/.cache from cache (rw)
      /mnt/shared_data_pvc from pvc-shared-shipcrew-pvc-fry (rw)
      /run/user/ from runuser (rw)
      /tmp from tmp (rw)
      /tmp/.X11-unix from x11socket (rw)
      /tmp/.cupsd from cupsdsocket (rw)
      /var/lib/extrausers from extrausers (rw)
      /var/log/desktop from log (rw)
      /var/run/dbus from rundbus (rw)
      /var/run/desktop from run (rw)
      /var/secrets/abcdesktop/vnc from auth-vnc-fry (rw)

The volume pvc-shared-shipcrew-pvc-fry is defined as

  pvc-shared-shipcrew-pvc-fry:
    Type:        PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)
    ClaimName:   shared-shipcrew-pvc
    ReadOnly:    false

A new Mount is defined as /mnt/shared_data_pvc from pvc-shared-shipcrew-pvc-fry (rw) and the volume pvc-shared-shipcrew-pvc-fry is defined as a PersistentVolumeClaim referencing shared-shipcrew-pvc.

Check that your file system's permissions are set to your users

The volume pvc-shared-shipcrew-pvc-fry is also mounted for applications ephemeral containers and pods.

Start the webshell application in the web interface
Now create a file inside the /mnt/shared_data_pvc folder, for example hello.txt

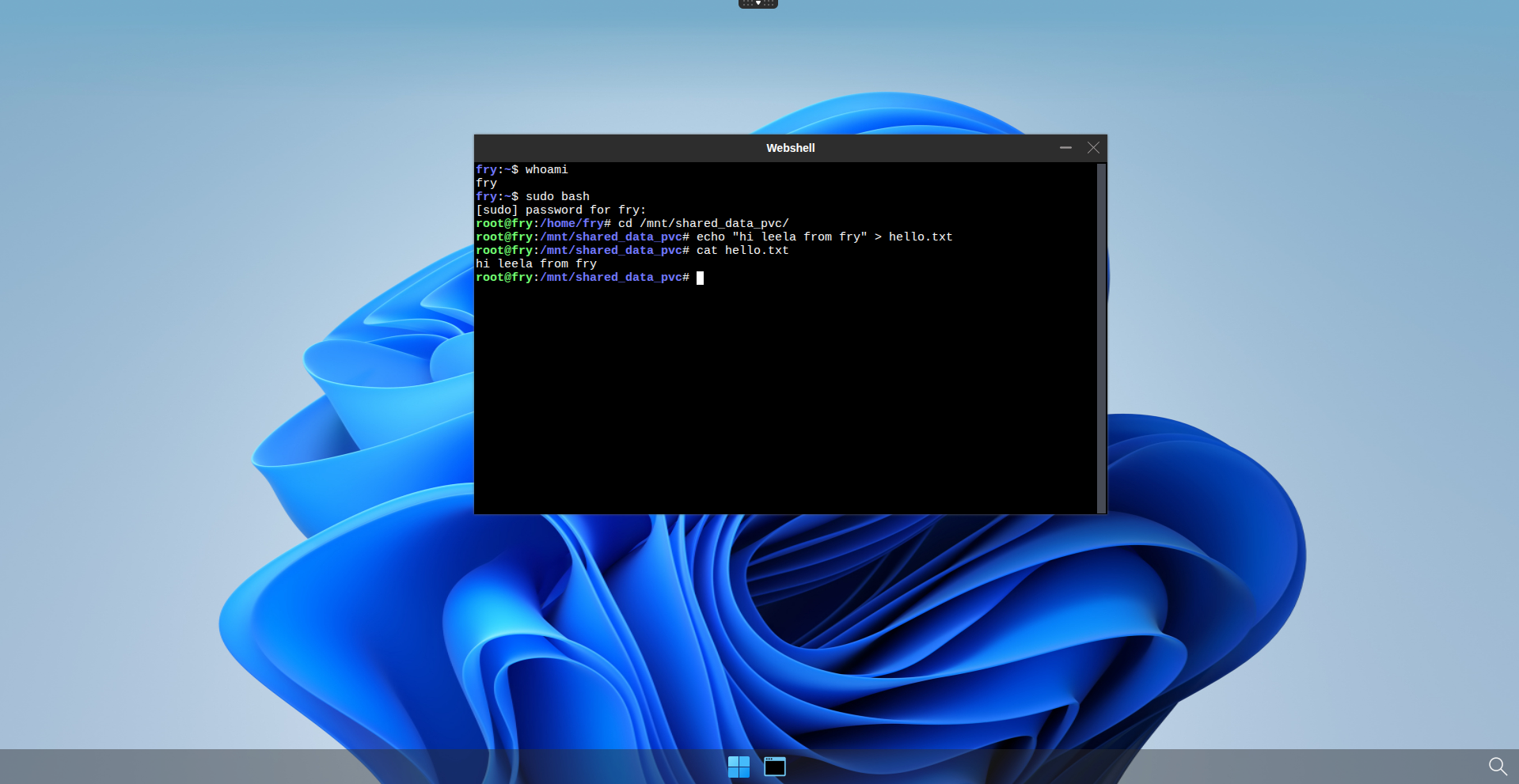

/mnt/shared_data_pvc files

Start a new desktop as `Turanga Leela`

Now start a desktop as Turanga Leela. As a member of the shipcrew group, you should see the file you created with Philip J. Fry.

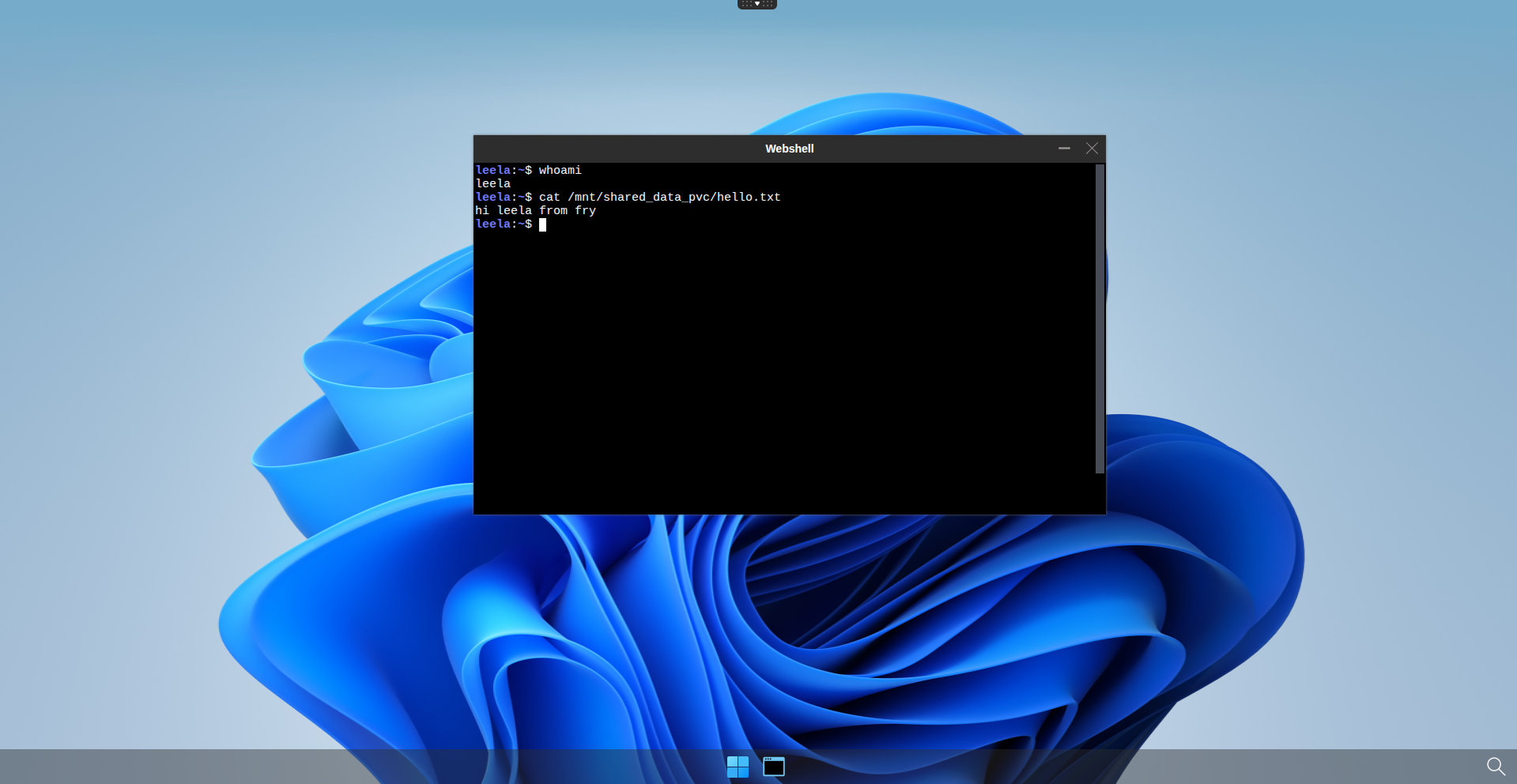

shared_data_pvc with leela

Info

Note that you should be able to see hello.txt on your NFS server too.
