Troubleshooting NVIDIA GPU Access to Ephemeral Containers with CDI Enabled

abcdesktop deploys applications as ephemeral containers or pods. NVIDIA provides support for the Container Device Interface, which enables GPU resource allocation without requiring privileged access.

Apply runtimeClassName to the abcdesktop Configuration

Retrieve the od.config file.

If you do not already have a local copy of od.config, run the following command:

kubectl -n abcdesktop get configmap abcdesktop-config -o jsonpath='{.data.od\.config}' > od.config

Edit od.config and update the executeclasses dictionary to set 'runtimeClassName': 'nvidia' for the appropriate execution class entries, then save the file.

# THIS IS WHERE THE RESOURCES ARE ACTUALLY DEFINED FOR THE POD DESKTOP.
# Application execute class defined
executeclasses : {
    'default':{
      'nodeSelector':None,
      'description': 'default: up to 4 CPU cores and 8Gi',
      'runtimeClassName': None,
      'resources':{
        'requests':{'memory':'576Mi','cpu':'220m'},
        'limits':  {'memory':'8Gi','cpu':'4000m'}
      }
    },
    'bronze':{
      'nodeSelector':None,
      'runtimeClassName': None,
      'description': 'bronze: up to 2 CPU cores and 8Gi',
      'resources':{
        'requests':{'memory':'576Mi','cpu':'220m'},
        'limits':  {'memory':'8Gi','cpu':'2000m'}
      }
    },
    'silver':{
      'nodeSelector': None,
      'description': 'silver: 4 CPU cores and 32Gi RAM',
      'runtimeClassName': None,
      'resources':{
        'requests':{'memory':'2Gi','cpu':'2000m'},
        'limits':{'memory':'32Gi','cpu':'4000m'}
      }
    },
  'gold':{
    'nodeSelector':{'nvidia.com/gpu.present': 'true'},
    'description': 'gold: 4 CPU cores, 32Gi RAM and 1 GPU',
    'runtimeClassName': 'nvidia',
    'resources':{
      'requests':{'memory':"2Gi",'cpu':'4000m'},
      'limits':{'memory':"32Gi",'cpu':'4000m'}
    }
  },
  'platinum':{
    'nodeSelector':{'nvidia.com/gpu.present':'true'},
    'description': 'platinum: 8 CPU cores, 128G RAM and 1 GPU',
    'runtimeClassName': 'nvidia',
    'resources':{
      'requests':{'memory':'4Gi','cpu':'4000m'},
      'limits':{'memory':'128Gi','cpu':'8000m'} } } }

# features_permissions
# read executeclasses and permit a user to set a dedicated class name as desktop features
# 'read'   features_permissions is exposed to the frontend
# 'submit' features_permissions can be set to create a desktop
#
desktop.features_permissions : [ 'read', 'submit' ]

desktop.overwrite_environment_variable_for_application : "/composer/overwrite_environment_variable_for_application.sh"

The overwrite_environment_variable_for_application.sh Bash script runs inside the graphical container of the user's pod.

gpu_uuid=$(nvidia-smi --query-gpu=gpu_uuid --format=csv,noheader)
# NVIDIA_VISIBLE_DEVICES is also know as k8s.device-plugin.nvidia.com/gpu
# define the variable named k8s.device-plugin.nvidia.com/gpu to the $gpu_uuid value
NVIDIA_GPU="{ \"k8s.device-plugin.nvidia.com/gpu\" : \"$gpu_uuid\" }"

It reads the GPU UUID, then sets the variable NVIDIA_GPU to k8s.device-plugin.nvidia.com/gpu=$gpu_uuid.

For example, when overwrite_environment_variable_for_application.sh is executed on a GPU-equipped host:

echo $NVIDIA_GPU
{ "k8s.device-plugin.nvidia.com/gpu" : "GPU-42b94ea3-8e4b-7c2c-0f70-3f3efcdc27bb" }

A newly launched application container inherits the NVIDIA_VISIBLE_DEVICES environment variable from the Bash script result. For example, running echo $NVIDIA_VISIBLE_DEVICES inside a new container returns the same GPU UUID:

echo $NVIDIA_VISIBLE_DEVICES
GPU-42b94ea3-8e4b-7c2c-0f70-3f3efcdc27bb

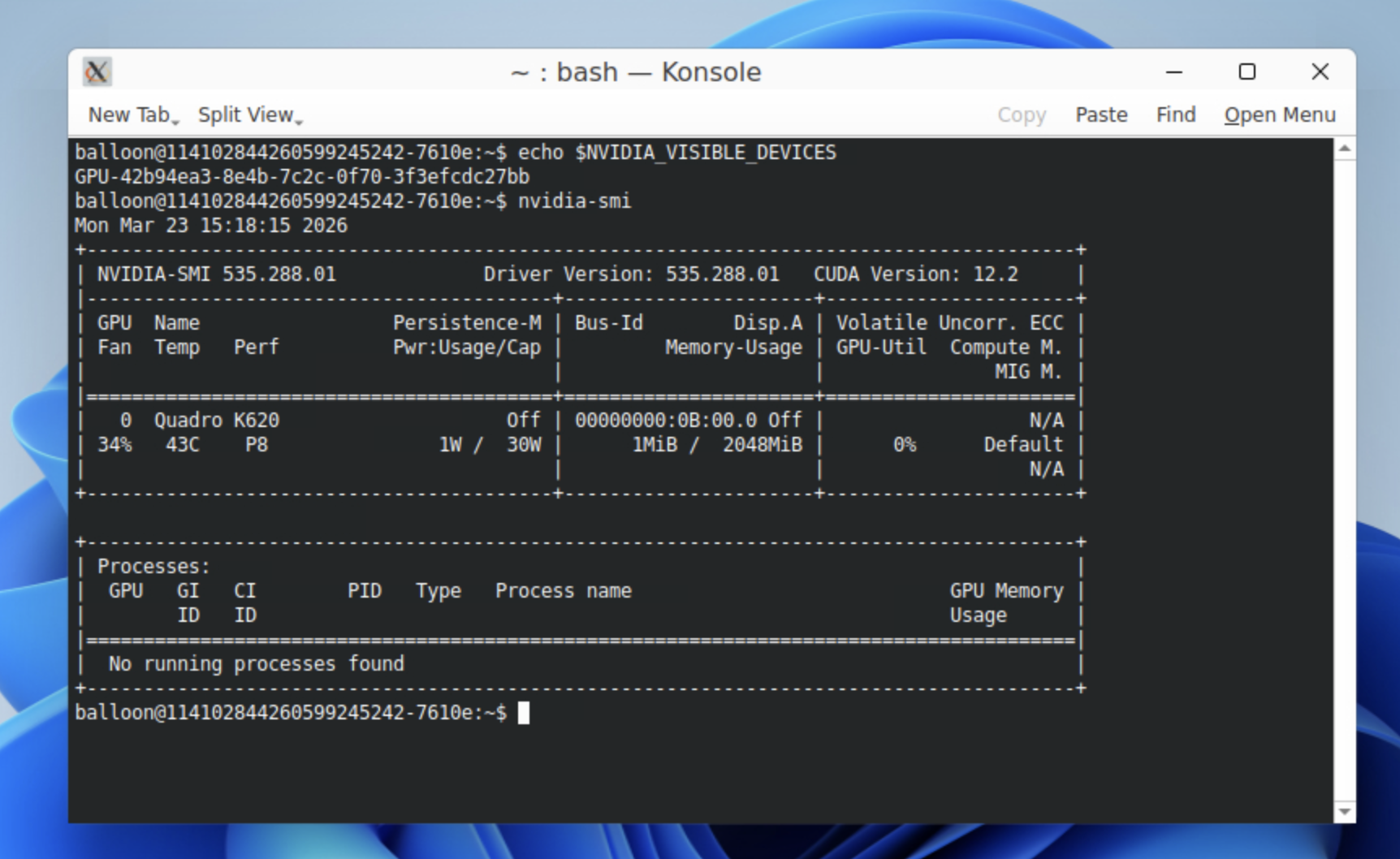

The following screenshot shows an ephemeral application sharing the GPU of the user's pod:

showoverwrite_environment_variable_for_application

The screenshot displays the $NVIDIA_VISIBLE_DEVICES value and the output of the nvidia-smi command.

Update the abcdesktop-config ConfigMap:

kubectl create -n abcdesktop configmap abcdesktop-config --from-file=od.config -o yaml --dry-run=client | kubectl replace -n abcdesktop -f -

Restart the pyos-od deployment:

kubectl rollout restart deployment pyos-od -n abcdesktop

Create a new desktop pod to verify the runtimeClassName:

kubectl get pods -l type=x11server -n abcdesktop
NAME        READY   STATUS    RESTARTS   AGE
fry-02f18   3/3     Running   0          24m

Run commands inside an ephemeral container.

Start an application such as firefox from the web interface.

Retrieve the pod description to identify the ephemeral container name:

kubectl describe  pods fry-02f18  -n abcdesktop

The ephemeral container name is philip-j--fry-firefox-745f9:

...
  Normal  Pulled     26m   kubelet            Container image "ghcr.io/abcdesktopio/firefox.d:4.3" already present on machine
  Normal  Created    26m   kubelet            Created container: philip-j--fry-firefox-745f9
  Normal  Started    26m   kubelet            Started container philip-j--fry-firefox-745f9

Execute the following commands inside the ephemeral container philip-j--fry-firefox-745f9 to verify GPU access:

kubectl exec -it fry-02f18 -c philip-j--fry-firefox-745f9 -n abcdesktop -- nvidia-smi -L
GPU 0: Quadro M620 (UUID: GPU-b5aebea9-8a25-fb21-631b-7e5da5a60ccb)

kubectl exec -it fry-02f18 -c philip-j--fry-firefox-745f9 -n abcdesktop -- ls -la /dev/dri
total 0
drwxr-xr-x 3 root root      100 janv. 13 15:05 .
drwxr-xr-x 6 root root      480 janv. 13 15:05 ..
drwxr-xr-x 2 root root       80 janv. 13 15:05 by-path
crw-rw-rw- 1 fry  fry  226,   1 janv. 13 15:05 card1
crw-rw-rw- 1 fry  fry  226, 128 janv. 13 15:05 renderD128
  • NVIDIA GPU Operator 23.6.2

https://docs.nvidia.com/datacenter/cloud-native/gpu-operator/23.6.2/cdi.html#support-for-multi-instance-gpu
