Publish your website as a public secured service

Requirements

read the previous chapter deploy abcdesktop on DigitalOcean with Kubernetes
a DigitalOcean account
a domain of you own hosted on digitalocean
doctl command line interface doctl cli
kubectl command line
wget command line

To get more informations

read the digital ocean chapter install-nginx-ingress-controller

Overview

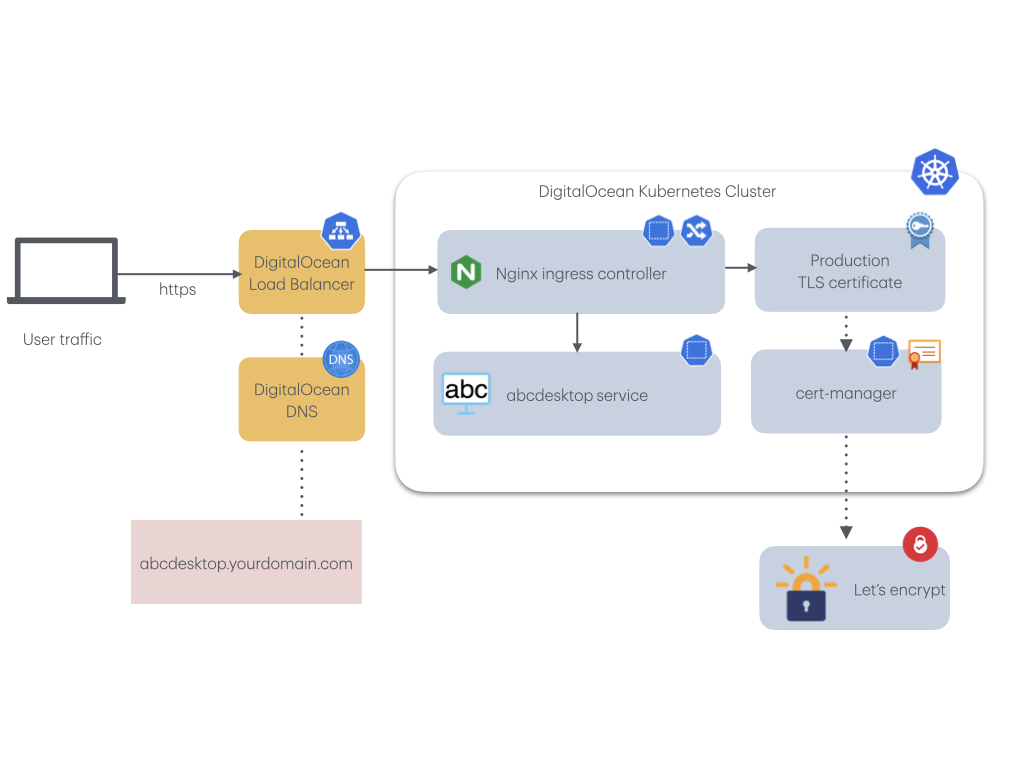

In this chapter we are going to, use a nginx-ingress-controller to host your abcdesktop service with a public IP Address, then configure dns zone file to use your own domain name, and activate TLS to secure your service.

nginx-ingress-controller

Update http-router service

When installing abcdesktop, http-router service type is NodePort by default, in order to expose the service through an ingress controller you will need to change the service type from NodePort to ClusterIP.

If you perform a get services command you will see the NodePort type

kubectl get svc http-router -n abcdesktop
NAME          TYPE       CLUSTER-IP    EXTERNAL-IP   PORT(S)        AGE
http-router   NodePort   10.0.170.21   <none>        80:30443/TCP   5m31s

To change it, you will first need to delete the service

kubectl delete service http-router -n abcdesktop
service "http-router" deleted

Then paste the following lines in a new http-router.yaml file

kind: Service
apiVersion: v1
metadata:
  name: http-router
  labels:
    abcdesktop/role: router-od
spec:
  selector:
    run: router-od
  ports:
  - protocol: TCP
    port: 443
    targetPort: 443
    name: https
  - protocol: TCP
    port: 80
    targetPort: 80
    name: http

Then Create your new service/http-router

kubectl apply -f http-router.yaml -n abcdesktop
service/http-router created

Now check that the service type is ClusterIP

kubectl get svc http-router -n abcdesktop
NAME          TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)          AGE
http-router   ClusterIP   10.0.132.230   <none>        443/TCP,80/TCP   5s

Install the NGINX Ingress Controller using the digitalocean's marketplace

Navigate to your cluster in the Kubernetes section of the digitalocean's console, then click to the Marketplace tab. In the recommended apps section, select NGINX Ingress Controller and then click Install.

nginx-ingress-controller-marketplace

When installed, the app appears in the History of Installed 1-Click Apps section of the tab.

nginx-ingress-controller-installing

Verify if the NGINX Ingress Pods are up and running:

kubectl get pods --all-namespaces -l app.kubernetes.io/name=ingress-nginx

The output looks similar to the following

NAMESPACE       NAME                                        READY   STATUS    RESTARTS   AGE
ingress-nginx   ingress-nginx-controller-84b84685c5-2zvnz   1/1     Running   0          63s
ingress-nginx   ingress-nginx-controller-84b84685c5-vr9nl   1/1     Running   0          63s

Installing the NGINX Ingress Controller 1-Click App also creates a load balancer that you can see in the Resources tab of your cluster.

Run the following command to get the ID of the load balancer:

doctl compute load-balancer list --format IP,ID,Name,Status

The output looks similar to the following:

IP                ID                                      Name                                Status
129.212.134.86    39b2f24c-1a0e-46b6-9421-a3f033b168d7    a2744cf144c7d4d978c3fe7af00042fd    active

Keep in mind the IP Address of your load-balancer. In my case, the load-balancer gets the IP Address 129.212.134.86

Update your DNS zone file

We will associate your FQDN (Fully Qualified Domain Name) to the load-balancer's IP Address.

digitalocean networking

This screenshot describes the DigitalOcean network console. It shows the Domain informations, but you can manage your own zone file from your own registrar.

Create new record

In this example, we are going to create a new record hello (hello.digitalocean.pepins.net) to the A address 129.212.134.86. This IP Address is the load-balancer IP Address.

You need to replace the hostname, the domain name and the IP Address with your own values.

Open your digital ocean console, and choose networking/domains

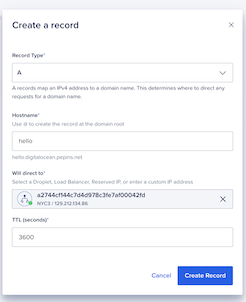

Create Record in the networking domains console

Map your hostname like hello.digitalocean.pepins.net to the ip address 129.212.134.86. You need to replace the hostname, the domain name and the IP Address with your own values.

digital ocean console domain overview

Press Create Record button, to update your zone file with the new record.

Configure NGINX Ingress Rules for Backend Services

In this step, you expose the backend applications to the outside world by telling nginx what host each service maps to. You define a rule in nginx to associate a host to a abcdesktop route backend service.

Create an ingress resource for NGNIX using the abcdesktop service and save it as abcdesktop_host.yaml You need to update this manifest with your own FQDN, replace hello.digitalocean.pepins.net by your own values.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-abcdesktop
  namespace: abcdesktop
spec:
  rules:
    - host: hello.digitalocean.pepins.net
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: http-router
                port:
                  number: 80
  ingressClassName: nginx

Apply the Ingress yaml file

kubectl apply -f abcdesktop_host.yaml -n abcdesktop

You should read

ingress.networking.k8s.io/ingress-abcdesktop created

Verify the ingress resources:

kubectl get ingress -n abcdesktop

The output looks similar to the following:

Wait fee seconds while the ADDRESS field is empty

NAME                 CLASS   HOSTS                           ADDRESS   PORTS   AGE
ingress-abcdesktop   nginx   hello.digitalocean.pepins.net             80      24s

When you obtain an IP ADDRESS

NAME                 CLASS   HOSTS                           ADDRESS          PORTS   AGE
ingress-abcdesktop   nginx   hello.digitalocean.pepins.net   129.212.134.86   80      3m13s

The spec section of the manifest contains a list of host rules used to configure the Ingress. If unspecified, or no rule matches, all traffic is sent to the default backend service. The manifest has the following fields:

host specifies the fully qualified domain name of a network host, for example echo.<your-domain-name>.
http contains the list of HTTP selectors pointing to backends.
paths provides a collection of paths that map requests to backends.

In the example above, the ingress resource tells nginx to route each HTTP request that is using the / prefix for the hello.digitalocean.pepins.net host, to the route backend service running on port 80. In other words, every time you make a call to http://hello.digitalocean.pepins.net/, the request and reply are served by the echo backend service running on port 80.

You can have multiple ingress controllers per cluster. The ingressClassName field in the manifest differentiates between multiple ingress controllers present in your cluster. Although you can define multiple rules for different hosts and paths in a single ingress resource.

reach your website from your new name

Web browser doesn't allow usage of websocket without secure protocol. To login you need https protocol.

As you can see, your website is Not Secured, we are going to add X509 SSL certificate to secure your service.

Enable HTTPS

Install Cert-Manager using the digitalocean's marketplace

Navigate to your cluster in the Kubernetes section of the control panel, then click the Marketplace tab.

certmanager

In the recommended apps section, select Cert-Manager and click Install.

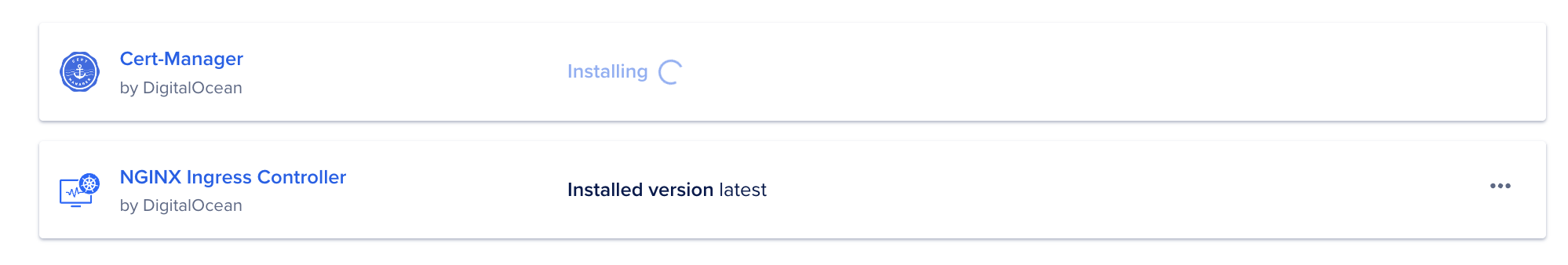

certmanager-installing

When installed, the app appears in the History of Installed 1-Click Apps section of the tab.

Inspect the Kubernetes resources created by Cert-Manager:

kubectl get all -n cert-manager

The output looks similar to the following

NAME                                           READY   STATUS    RESTARTS   AGE
pod/cert-manager-56bc5978b8-dhxtj              1/1     Running   0          2m33s
pod/cert-manager-cainjector-7f5bd9c869-czbwq   1/1     Running   0          2m33s
pod/cert-manager-webhook-7b55b785f-78f6q       1/1     Running   0          2m33s

NAME                           TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/cert-manager-webhook   ClusterIP   10.108.45.89   <none>        443/TCP   2m33s

NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/cert-manager              1/1     1            1           2m34s
deployment.apps/cert-manager-cainjector   1/1     1            1           2m34s
deployment.apps/cert-manager-webhook      1/1     1            1           2m34s

NAME                                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/cert-manager-56bc5978b8              1         1         1       2m34s
replicaset.apps/cert-manager-cainjector-7f5bd9c869   1         1         1       2m34s
replicaset.apps/cert-manager-webhook-7b55b785f       1         1         1       2m34s

The cert-manager pods and webhook service are running.

Cert-Manager creates custom resource definitions (CRDs). Cert-Manager relies on three important CRDs to issue certificates from a Certificate Authority (such as Let’s Encrypt):

Issuer: Defines a namespaced certificate issuer, which allows you to use different CAs in each namespace.
ClusterIssuer: Similar to Issuer, but it does not belong to a namespace and can be used to issue certificates in any namespace.
Certificate: Defines a namespaced resource that references an Issuer or ClusterIssuer for issuing certificates.

Inspect the CRDs by running the following command:

kubectl get crd -l app.kubernetes.io/name=cert-manager

The output looks similar to the following

NAME                                  CREATED AT
certificaterequests.cert-manager.io   2025-10-14T12:08:15Z
certificates.cert-manager.io          2025-10-14T12:08:15Z
challenges.acme.cert-manager.io       2025-10-14T12:08:15Z
clusterissuers.cert-manager.io        2025-10-14T12:08:15Z
issuers.cert-manager.io               2025-10-14T12:08:15Z
orders.acme.cert-manager.io           2025-10-14T12:08:15Z

Configure Production-Ready TLS Certificates for nginx

You can issue the certificate using an Issuer. Configure a certificate issuers resource for Cert-Manager, which fetches the TLS certificate for nginx to use. The certificate issuer uses the HTTP-01 challenge provider to accomplish this task.

Create the following manifest, replace <your-valid-email-address> with your own value, and save it as cert-manager-issuer.yaml :

apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: letsencrypt-nginx
spec:
  acme:
    email: <your-valid-email-address>
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-nginx-private-key
    solvers:
      # Use the HTTP-01 challenge provider
      - http01:
          ingress:
            class: nginx

The ACME issuer configuration has the following fields:

email: Email address to be associated with the ACME account.
server: URL used to access the ACME server’s directory endpoint.
privateKeySecretRef: Kubernetes secret to store the automatically generated ACME account private key.

The ingress resources use the HTTP-01 challenge.

kubectl apply -f cert-manager-issuer.yaml -n abcdesktop

The output looks similar to the following

issuer.cert-manager.io/letsencrypt-nginx created

Verify that the Issuer resource is created:

kubectl get issuer -n abcdesktop

The output looks similar to the following

NAME                READY   AGE
letsencrypt-nginx   True    7s

Next, configure each nginx ingress resource to use TLS. Open the previous abcdesktop_host.yaml manifest you created previously for the route application, add the annotations and tls sections shown below, and save the abcdesktop_host.yaml file: You can also add dedicated nginx.ingress.kubernetes.io annotations to increase default timeout values. Replace hello.digitalocean.pepins.net by own FQDN

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-abcdesktop
  annotations:
   cert-manager.io/issuer: letsencrypt-nginx
   nginx.org/client-max-body-size: "256M"
   nginx.ingress.kubernetes.io/proxy-connect-timeout: "30"
   nginx.ingress.kubernetes.io/proxy-read-timeout: "1800"
   nginx.ingress.kubernetes.io/proxy-send-timeout: "1800"
   nginx.ingress.kubernetes.io/proxy-body-size: "256M"
spec:
  tls:
   - hosts:
     - hello.digitalocean.pepins.net
     secretName: letsencrypt-nginx-echo
  rules:
    - host: hello.digitalocean.pepins.net
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: http-router
                port:
                  number: 80
  ingressClassName: nginx

Run the following command to configure the hosts to use TLS:

kubectl apply -f abcdesktop_host.yaml -n abcdesktop

After a few minutes, check the state of the ingress object:

kubectl get ingress -n  abcdesktop
NAME                 CLASS   HOSTS                           ADDRESS          PORTS     AGE
ingress-abcdesktop   nginx   hello.digitalocean.pepins.net   129.212.134.86   80, 443   31m

Check that the certificate resource is created

kubectl get certificates -n abcdesktop

The output looks similar to the following

NAME                     READY   SECRET                   AGE
letsencrypt-nginx-echo   True    letsencrypt-nginx-echo   27m

Run a simple curl command line curl -Li https://hello.digitalocean.pepins.net/ to confirm that your secured abcdesktop service is running.

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0HTTP/2 200
date: Tue, 14 Oct 2025 13:23:05 GMT
content-type: text/html
content-length: 55889
vary: Accept-Encoding
last-modified: Tue, 14 Oct 2025 01:03:51 GMT
etag: "68eda177-da51"
accept-ranges: bytes
x-frame-options: SAMEORIGIN
x-xss-protection: 1; mode=block
strict-transport-security: max-age=31536000; includeSubDomains

<!doctype html>
...

Reach your website using `https` protocol

You can now connect to your abcdesktop desktop pulic web site using https protocol.

reach your website using https

The status is secured and we get some informations from the certificate

reach your website using https

See real client IP address behind ingress controller

Now that your application is publically exposed, maybe you are wondering about security and traffic inside your cluster.
For example, the console module of abcdesktop should not be accessible to everyone as it is designed to be an administrator console. That is why when you install abcdesktop there is a pool of permit IPs that is specify in the od.config file.

ManagerController': { 'permitip': [ '10.0.0.0/8', '172.16.0.0/12', '192.168.0.0/16', 'fd00::/8', '169.254.0.0/16', '127.0.0.0/8' ] }

By default the configuration only permit private network defined in rfc1918 and rfc4193. So as your service is publically exposed, none of your visitors should be able to access to console. But when you try, you will actually be able to play with console normally, which is not the expected behaviour.

access console ok

And when you check Pyos logs you will see why console behaves like that.

kubectl get pods -n abcdesktop
NAME                            READY   STATUS    RESTARTS   AGE
console-od-5cd84fdd69-zbjxf     1/1     Running   0          11m
memcached-od-6ccd5b5f67-wwnw8   1/1     Running   0          11m
mongodb-od-0                    2/2     Running   0          11m
nginx-od-784885cbd5-b7dqx       1/1     Running   0          11m
openldap-od-bb485cb4b-2ltm8     1/1     Running   0          11m
pyos-od-5c5cfdbfc8-t9r9m        1/1     Running   0          11m
router-od-6b7456b789-dsqdh      1/1     Running   0          11m
speedtest-od-8686c67749-hncft   1/1     Running   0          11m

kubectl exec -it pyos-od-5c5cfdbfc8-t9r9m -n abcdesktop -- bash
Defaulted container "pyos" out of: pyos, wait-for-mongo (init)
pyos-od-5c5cfdbfc8-t9r9m:/var/pyos# tail logs/trace.log
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG  ] controllers.manager_controller.ManagerController.apifilter:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG  ] controllers.manager_controller.ManagerController.ipfilter:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 base_controller [DEBUG  ] controllers.manager_controller.ManagerController.ipfilter:anonymous ipsource 10.2.1.0 is permited in network 10.0.0.0/8
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 manager_controller [DEBUG  ] controllers.manager_controller.ManagerController.handle_desktop_GET:anonymous
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 orchestrator [DEBUG  ] oc.od.orchestrator.ODOrchestratorKubernetes.__init__:anonymous load_incluster_config done
2026-02-06 16:03:51 abcpool1-node-fa2594 139923622185784 od [INFO   ] __main__.trace_response:anonymous /manager/desktop b'[]'
2026-02-06 16:03:55 abcpool1-node-fa2594 139923627645752 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:05 abcpool1-node-fa2594 139923618954040 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:15 abcpool1-node-fa2594 139923617876792 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:04:25 abcpool1-node-fa2594 139923621108536 od [INFO   ] __main__.trace_request:anonymous /healthz

As you can see on the logs, the source IP address seen by pyos is a private IP address like 10.X.X.X (or in the subnet you defined as internal to your cluster) which is in the pool of permit IP addresses.

That happens because the nginx ingress controller we set up earlier does not forward the client public IP address and balance the request with its own IP address in the cluster. So Router and Pyos both see the IP address of the ingress controller loadbalancer.

To fix that, we have to update te configuration of our nginx ingress controller. Please paste the following lines in a patch-ingress.yaml file

controller:
  service:
    externalTrafficPolicy: "Local"
    annotations:
      service.beta.kubernetes.io/do-loadbalancer-enable-proxy-protocol: "true"
  config:
    use-proxy-protocol: "true"
    real-ip-header: "proxy_protocol"
    proxy-real-ip-cidr: "10.0.0.0/8"
    log-format-upstream: '{"time": "$time_iso8601", "remote_addr": "$proxy_protocol_addr", "x_forwarded_for": "$proxy_add_x_forwarded_for", "http_x_forwarded-for": "$http_x_forwarded_for", "request_id": "$req_id", "remote_user": "$remote_user", "bytes_sent": $bytes_sent, "request_time": $request_time, "status": $status, "vhost": "$host", "request_proto": "$server_protocol", "path": "$uri", "request_query": "$args", "request_length": $request_length, "method": "$request_method", "http_referrer": "$http_referer",  "http_user_agent": "$http_user_agent" }'

Now run the following command to apply it

helm upgrade ingress-nginx ingress-nginx/ingress-nginx -n ingress-nginx -f patch-loadbalancer.yaml

You can now retry to connect to console, you should see an error message on the top right

access console ok

You can also check the logs of Pyos, you should see your public IP address as source IP

kubectl exec -it pyos-od-5c5cfdbfc8-t9r9m -n abcdesktop -- bash
Defaulted container "pyos" out of: pyos, wait-for-mongo (init)
pyos-od-5c5cfdbfc8-t9r9m:/var/pyos# tail logs/trace.log
2026-02-06 16:25:25 abcpool1-node-fa2594 139923622185784 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:35 abcpool1-node-fa2594 139923627645752 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 od [INFO   ] __main__.trace_request:anonymous /manager/healtz
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [DEBUG  ] controllers.manager_controller.ManagerController.apifilter:anonymous
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [DEBUG  ] controllers.manager_controller.ManagerController.ipfilter:anonymous
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [INFO   ] controllers.manager_controller.ManagerController.ipfilter:anonymous ipsource <your_public_ip> access is denied, not in network list [IPNetwork('10.0.0.0/8'), IPNetwork('172.16.0.0/12'), IPNetwork('192.168.0.0/16'), IPNetwork('fd00::/8'), IPNetwork('169.254.0.0/16'), IPNetwork('127.0.0.0/8')]
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 base_controller [ERROR  ] controllers.manager_controller.ManagerController.raise_http_error_message:anonymous 403.7 - IP address access denied
2026-02-06 16:25:37 abcpool1-node-fa2594 139923618954040 od [INFO   ] __main__.trace_response:anonymous /manager/healtz b'{"status": 403, "message": "403.7 - IP address access denied"}'
2026-02-06 16:25:45 abcpool1-node-fa2594 139923617876792 od [INFO   ] __main__.trace_request:anonymous /healthz
2026-02-06 16:25:55 abcpool1-node-fa2594 139923621108536 od [INFO   ] __main__.trace_request:anonymous /healthz

Publish your website as a public secured service

Requirements

To get more informations

Overview

Update http-router service

Install the NGINX Ingress Controller using the digitalocean's marketplace

Update your DNS zone file

Create new record

Configure NGINX Ingress Rules for Backend Services

Enable HTTPS

Install Cert-Manager using the digitalocean's marketplace

Configure Production-Ready TLS Certificates for nginx

Reach your website using https protocol

See real client IP address behind ingress controller

Reach your website using `https` protocol
