Add hostPath volume using rules

Users may need to access shared files. If you can't create persistent volumes on your cluster, this page describe how to access a shared '/mnt/myproject' hostPath using rules

Check your rules in authmanagers ldapconfig

The ldapconfig for demo ldap server add few default rules. To get more information about the ldap server read the docker-test-openldap web page.

The user Philip J. Fry is member of the group ship_crew.

Detail of ship_crew group cn=ship_crew,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	ship_crew
member	cn=Turanga Leela,ou=people,dc=planetexpress,dc=com
member	cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com
member	cn=Bender Bending Rodríguez,ou=people,dc=planetexpress,dc=com

ldapconfig : {
        'planet': {
                'default'       : True,
                'ldap_timeout'  : 15,
                'ldap_protocol' : 'ldap',
                'ldap_basedn'   : 'ou=people,dc=planetexpress,dc=com',
                'servers'       : [ 'openldap' ],
                'secure'        : False,
                'serviceaccount': { 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' },
                'policies': {
                    'acls': None,
                    'rules' : {
                        'rule-dummy' : {
                            'conditions' : [ {'boolean':True, 'expected':True } ],
                            'expected' : True,
                            'label':'labeltrue'
                        },
                        'rule-ship': {
                            'conditions' : [ { 'memberOf': 'cn=ship_crew,ou=people,dc=planetexpress,dc=com',   'expected' : True  } ],
                            'expected' : True,
                            'label':'shipcrew'
                        },
                        'rule-test': {
                            'conditions' : [ { 'memberOf': 'cn=admin_staff,ou=people,dc=planetexpress,dc=com', 'expected' : True  } ],
                            'expected' : True,
                            'label': 'adminstaff'
                        }
                    }
                } } }

This provider defines 3 rules :

• labeltrue always for all users
• shipcrew if the user is member of cn=ship_crew,ou=people,dc=planetexpress,dc=com group
• adminstaff if the user is memberof cn=admin_staff,ou=people,dc=planetexpress,dc=com group

Start your web brower and login in as Philip J. Fry to you abcdesktop web service.

• Open the Menu | User tab

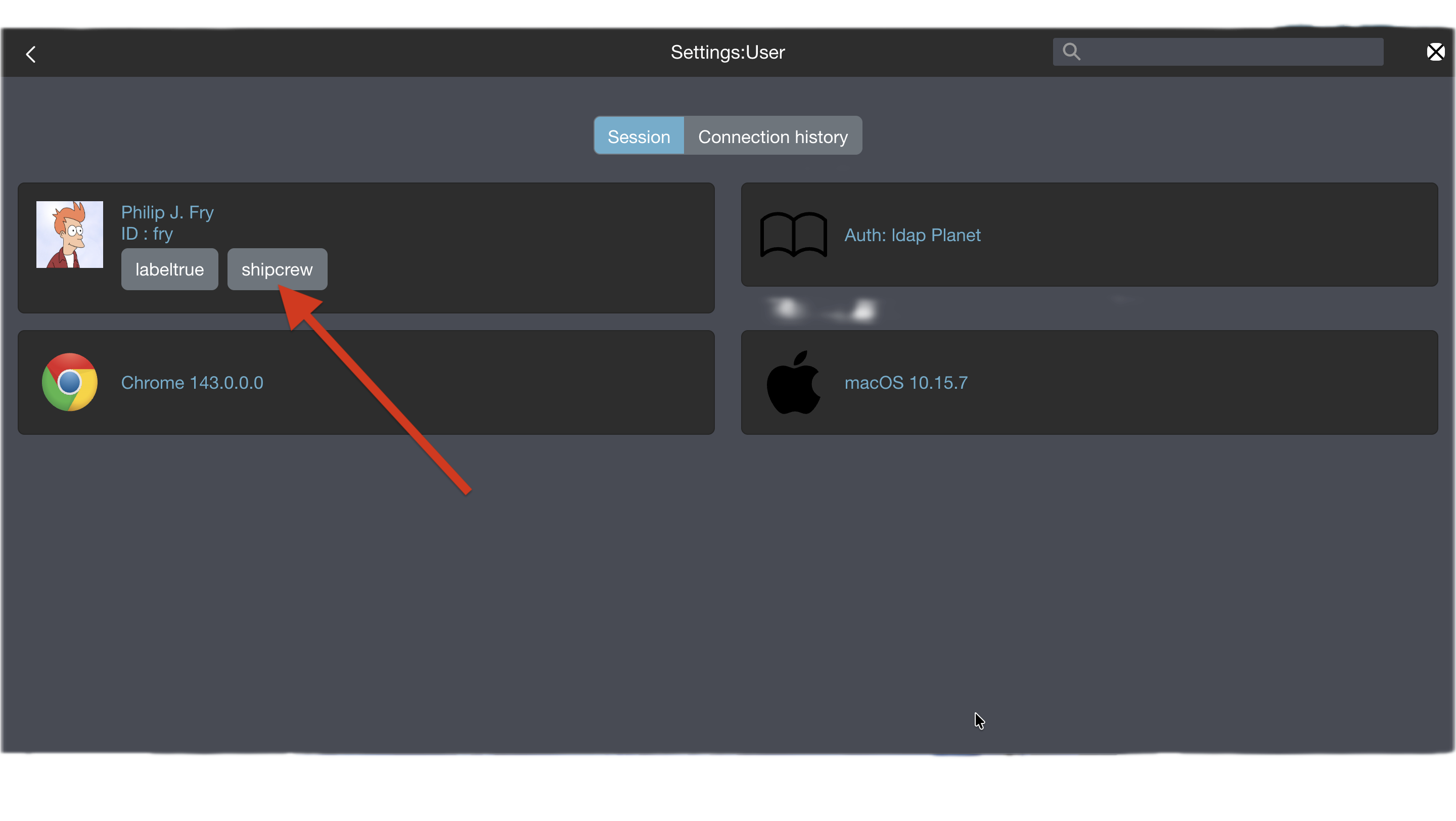

When Philip J. Fry is logged in, Philip J. Fry gets the labels labeltrue and shipcrew.

Define a volume policy when a label is set

To define a policy, we need to update the desktop.policies dictionary.

Extract the abcdesktop-config configmap description to a local file

kubectl -n abcdesktop get configmap abcdesktop-config -o jsonpath='{.data.od\.config}' > od.config

You get a the new local file od.config

Update od.config file

Add rules to the desktop.policies dictionary

desktop.policies: {
  'rules': {
    'volumes': {
      'shipcrew': {
        'type': 'hostPath',
        'name': 'mntmyproject',
        'path': '/mnt',
        'mountPath': '/mnt/testmyproject'
      }
    },
    'network': {}
  },
  'acls' : {} }

In this case, the type is set to hostPath. Others types are supported like [ cifs, nfs, pvc ]

On your worker node, make sure that the /mnt directory exists.

This policy adds a new volume mntmyproject defined as a hostPath to the users's pod and mount it as /mnt/testmyproject.

Save your od.config file

Apply the new config file

Replace the previous configmap

kubectl create -n abcdesktop configmap abcdesktop-config --from-file=od.config -o yaml --dry-run=client | kubectl replace -n abcdesktop -f -

Expected output

configmap/abcdesktop-config replaced

Restart pyos to apply the new config map

kubectl rollout restart deployment pyos-od -n abcdesktop

Expected output

deployment.apps/pyos-od restarted

Your new config is ready to use

Restart a new desktop as Philip J. Fry

• Create a new desktop for Philip J. Fry
• Get the name of the Philip J. Fry pod

kubectl get pods -l type=x11server -n abcdesktop
NAME        READY   STATUS    RESTARTS   AGE
fry-06c5f   4/4     Running   0          3m24s

• Describe the Philip J. Fry pod, and look for the Mounts and Volumes entries

kubectl desribe pods fry-06c5f -n abcdesktop

The mount for hostpath-mntmyproject-fry is defined to /mnt/testmyproject

    Mounts:
      /etc/sudoers.d from sudoers (rw)
      /home/fry from home (rw)
      /home/fry/.cache from cache (rw)
      /mnt/testmyproject from hostpath-mntmyproject-fry (rw)
      /run/user/ from runuser (rw)
      /tmp from tmp (rw)
      /tmp/.X11-unix from x11socket (rw)
      /tmp/.cupsd from cupsdsocket (rw)
      /var/lib/extrausers from extrausers (rw)
      /var/log/desktop from log (rw)
      /var/run/dbus from rundbus (rw)
      /var/run/desktop from run (rw)
      /var/secrets/abcdesktop/vnc from auth-vnc-fry (rw)

The volume hostpath-mntmyproject-fry is defined as

  hostpath-mntmyproject-fry:
    Type:          HostPath (bare host directory volume)
    Path:          /mnt
    HostPathType:  DirectoryOrCreate

A new Mount is defined as /mnt/testmyproject from hostpath-mntmyproject-fry (rw) and a new volume hostpath-mntmyproject-fry is defined as HostPath to the Path /mnt

Check that your file system's permissions are set to your users

The volume hostpath-mntmyproject-fry is also mounted for applications ephemeral containers and pods.

• Start the webshell application in the web interface to list files in /mnt/testmyproject.

Inside the webshell terminal, run the command ls -la /mnt/testmyproject

You added a new volume to your pods and your application.
