Authentification `explicit` for LDAP Directory Services

authmanagers `explicit` object

explicit authentification use a directory service. A bind operation is used to authenticate clients to the directory server, to establish an authorisation identity that will be used for subsequent operations processed on that connection.

The explicit authentification configuration is defined as a dictionary object and contains an explicit provider.

For example :

'explicit': {
    'providers': {
      'LDAP': {
        'config_ref': 'ldapconfig',
        'enabled': True
       }
}

In this example, ldapconfig dict must have a key LDAP

Variable name	Type	Description
`default_domain`	string	set the default domain name, if user does not prefix the login by domain\s. `default_domain` is only used by Active Directory provider
`providers`	dictionary	`{ 'LDAP': { 'config_ref': 'ldapconfig', 'enabled': True }}`

providers configuration

The provider authentification configuration is defined as a dictionary object and must contain a key name. The key name must be set with the same value in provider configuration and config_ref.

The provider is formatted as a dictionary. Example for a provider defined as planet

 { 'planet': {
            'config_ref': 'ldapconfig',
            'enabled': True
        }
 }

Variable name	Type	Description
config_ref	string	For increased readability , the configuration is defined in a dedicated and separated dictionary as (key,value) `'config_ref': 'planet'`, where `key` is `config_ref` and `value` is the dictionary variable name.
enable	boolean	`True` to enable or `False` to disable the provider configuration

The ldapconfig is a dictionary.

For example :

ldapconfig : {
  'planet': {
    'default'       : True,
    'ldap_timeout'  : 15,
    'ldap_protocol' : 'ldap',
    'ldap_basedn'   : 'ou=people,dc=planetexpress,dc=com',
    'servers'       : [ 'ldap://192.168.8.195' ],
    'serviceaccount': { 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' }
  }
 }
}

ldap configuration reference

Variable name	Type	Description	Example
`default`	boolean	Use this ldap configuration as default (if more than one ldap auth provider is defined)	True
`auth_only`	boolean	Do not run ldap queries, only use to run authentication	False
`auth_type`	string	authentification protocol to bind the ldap server. Values can be 'KERBEROS', 'NTLM' or 'SIMPLE'	The default value is 'SIMPLE'
`basedn`	string	LDAP base Distinguished Name	`ou=people,dc=planetexpress,dc=com`
`servers`	list of string	list of LDAP servers (IP Adress or FQDN), if entry does not respond, the next one is used. This entry must be prefixed by the protocol `ldap` or `ldaps` for each server	`[ 'ldap://192.168.1.12', 'ldaps://192.168.1.13' ]` LDAP server address IP Address or FQDN value
`scope`	LDAP	Perform an LDAP search operation, with base as the DN of the entry at which to start the search, `scope` being one of `SCOPE_BASE` (to search the object itself), `SCOPE_ONELEVEL` (to search the object’s immediate children), or `SCOPE_SUBTREE` (to search the object and all its descendants).	`ldap.SCOPE_SUBTREE`
`timeout`	integer	ldap time out in second	10
`exec_timeout`	integer	execute time out in seconds, to obtain ntlm_auth credentials, or cntlm auth credentials, or kerberos keytab file the exec timeout is used to run external command line.	10
`users_ou`	string	Users Organisation Unit	`ou=people,dc=planetexpress,dc=com`
`attrs`	list	list of default attributs to read in user object. read the Definition of the inetOrgPerson LDAP Object Class
`filter`	string	LDAP filter to find user object	`(&(objectClass=inetOrgPerson)(cn=%s))`
`group_filter`	string	LDAP filter to find group object	`(&(objectClass=Group)(cn=%s))`
`group_attrs`	string	LDAP filter to find group object	`(&(objectClass=Group)(cn=%s))`
`serviceaccount`	dictionary	entries to defined service account credentials	formatted like `{ 'login': 'cn=admin,dc=planetexpress,dc=com', 'password': 'GoodNewsEveryone' }` or `{ 'login': 'file://config/serviceaccount/login', 'password': 'file://config/serviceaccount/passwd' }`

ldap service account

Ldap service account permits service account binding. A service account can be defined using clear text login and password data, or as file reference login and password starting by file://.

If login starts by file://, then pyos open the defined file to read login data.
If password starts by file://, then pyos open the defined file to read password data.

The file reference file:// for login and password is used to read kubernetes secret file data.

Configure Auth using the OpenLDAP container

OpenLDAP container for testing

To configure abcdesktop to use an explicit authentification, we need a directory service. We use an OpenLDAP container for testing with provisioned values. docker-test-openldap from rroemhild works fine ans id very useful.

Read the OpenLDAP container for testing documentation on the url abcdesktop OpenLDAP Docker Image for testing

Update the `od.config` configuration file

Update the od.config configuration file.

Add the explicit entry to the dictionary authmanagers.

authmanagers: {
  'external': {
  },
  'explicit': {
    'show_domains': True,
    'providers': {
      'planet': {
        'config_ref': 'ldapconfig',
        'enabled': True
       }
    }
  },
  'implicit': {
  }}

Note: the config_ref is ldapconfig.

Add a new dictionary object named ldapconfig to the configuration file. These values come from the LDAP structure of OpenLDAP Docker Image for testing

ldapconfig : { 'planet': {
                        'default'       : True,
                        'ldap_basedn'   : 'ou=people,dc=planetexpress,dc=com',
                        'servers'       : [ 'ldap://openldap' ] }}

Save your new od.config file.

Open the URL:http://localhost:30443

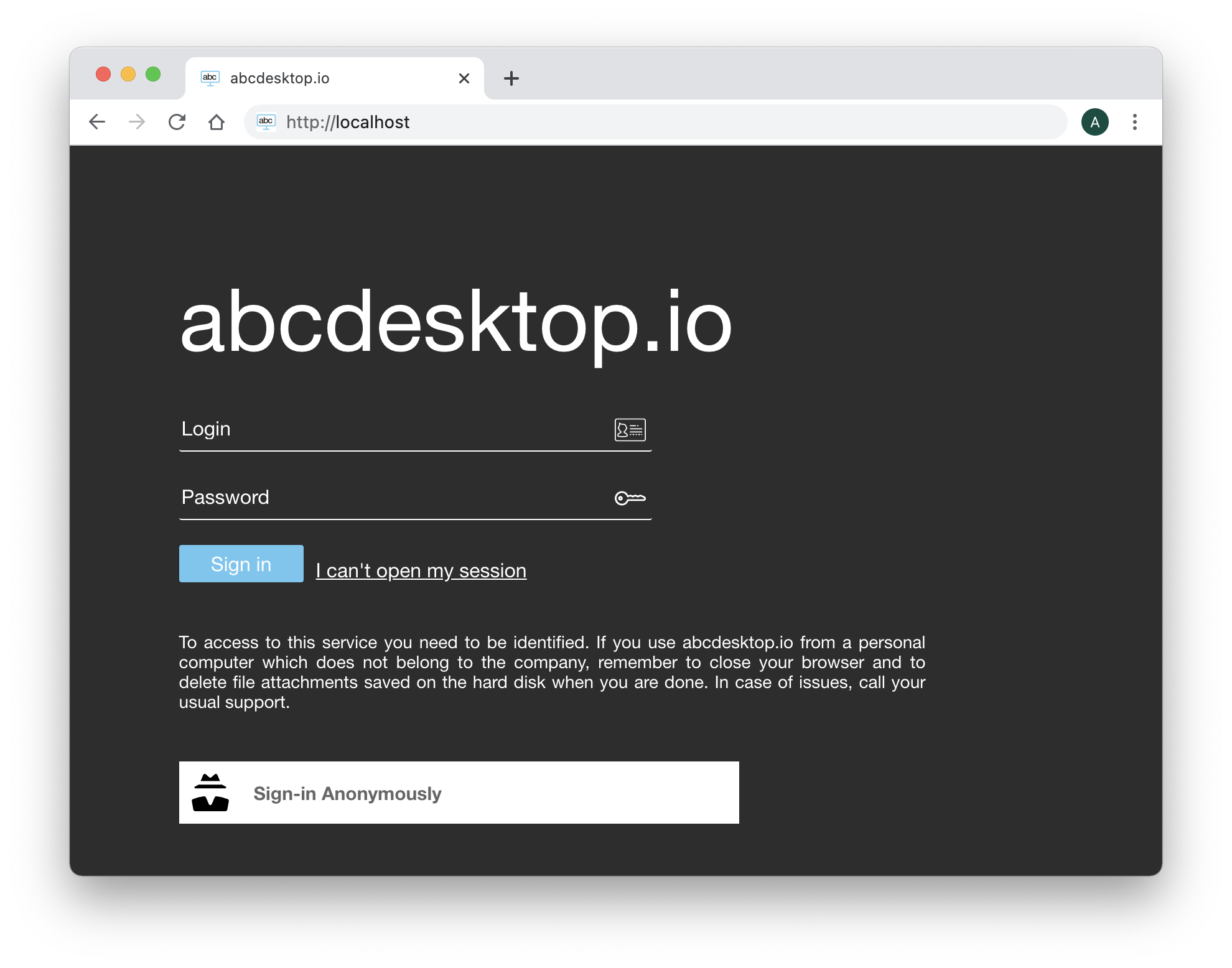

The authmanagers explicit is enabled. The Web home page insert the new input values Login and Password to authenticate this user.

auth-provider-explicit

The LDAP structure of OpenLDAP container for testing

BaseDN

The basedn is dc=planetexpress,dc=com

admin account

The admin account is described as

Admin	Secret
cn=admin,dc=planetexpress,dc=com	GoodNewsEveryone

OU Users

The User Orgnanistation Unit is ou=people,dc=planetexpress,dc=com

Users

cn=Hubert J. Farnsworth,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Hubert J. Farnsworth
sn	Farnsworth
description	Human
displayName	Professor Farnsworth
employeeType	Owner
employeeType	Founder
givenName	Hubert
jpegPhoto	JPEG-Photo (630x507 Pixel, 26780 Bytes)
mail	professor@planetexpress.com
mail	hubert@planetexpress.com
ou	Office Management
title	Professor
uid	professor
userPassword	professor

cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Philip J. Fry
sn	Fry
description	Human
displayName	Fry
employeeType	Delivery boy
givenName	Philip
jpegPhoto	JPEG-Photo (429x350 Pixel, 22132 Bytes)
mail	fry@planetexpress.com
ou	Delivering Crew
uid	fry
userPassword	fry

cn=John A. Zoidberg,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	John A. Zoidberg
sn	Zoidberg
description	Decapodian
displayName	Zoidberg
employeeType	Doctor
givenName	John
jpegPhoto	JPEG-Photo (343x280 Pixel, 26438 Bytes)
mail	zoidberg@planetexpress.com
ou	Staff
title	Ph. D.
uid	zoidberg
userPassword	zoidberg

cn=Hermes Conrad,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Hermes Conrad
sn	Conrad
description	Human
employeeType	Bureaucrat
employeeType	Accountant
givenName	Hermes
mail	hermes@planetexpress.com
ou	Office Management
uid	hermes
userPassword	hermes

cn=Turanga Leela,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	inetOrgPerson
cn	Turanga Leela
sn	Turanga
description	Mutant
employeeType	Captain
employeeType	Pilot
givenName	Leela
jpegPhoto	JPEG-Photo (429x350 Pixel, 26526 Bytes)
mail	leela@planetexpress.com
ou	Delivering Crew
uid	leela
userPassword	leela

Groups

cn=admin_staff,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	admin_staff
member	cn=Hubert J. Farnsworth,ou=people,dc=planetexpress,dc=com
member	cn=Hermes Conrad,ou=people,dc=planetexpress,dc=com

cn=ship_crew,ou=people,dc=planetexpress,dc=com

Attribute	Value
objectClass	Group
cn	ship_crew
member	cn=Turanga Leela,ou=people,dc=planetexpress,dc=com
member	cn=Philip J. Fry,ou=people,dc=planetexpress,dc=com
member	cn=Bender Bending Rodríguez,ou=people,dc=planetexpress,dc=com

Insert the user credentials

Start your web browser and open the URL http://localhost

The Web home page contains the new input values Login and Password to authenticate this user.

You can use for example on user of the list above.

Credentials	Value
Login	Turanga Leela
Password	leela

auth-provider-explicit

Insert the login credentials :

Turanga Leela as login and leela as password, then click on the Sign in button.

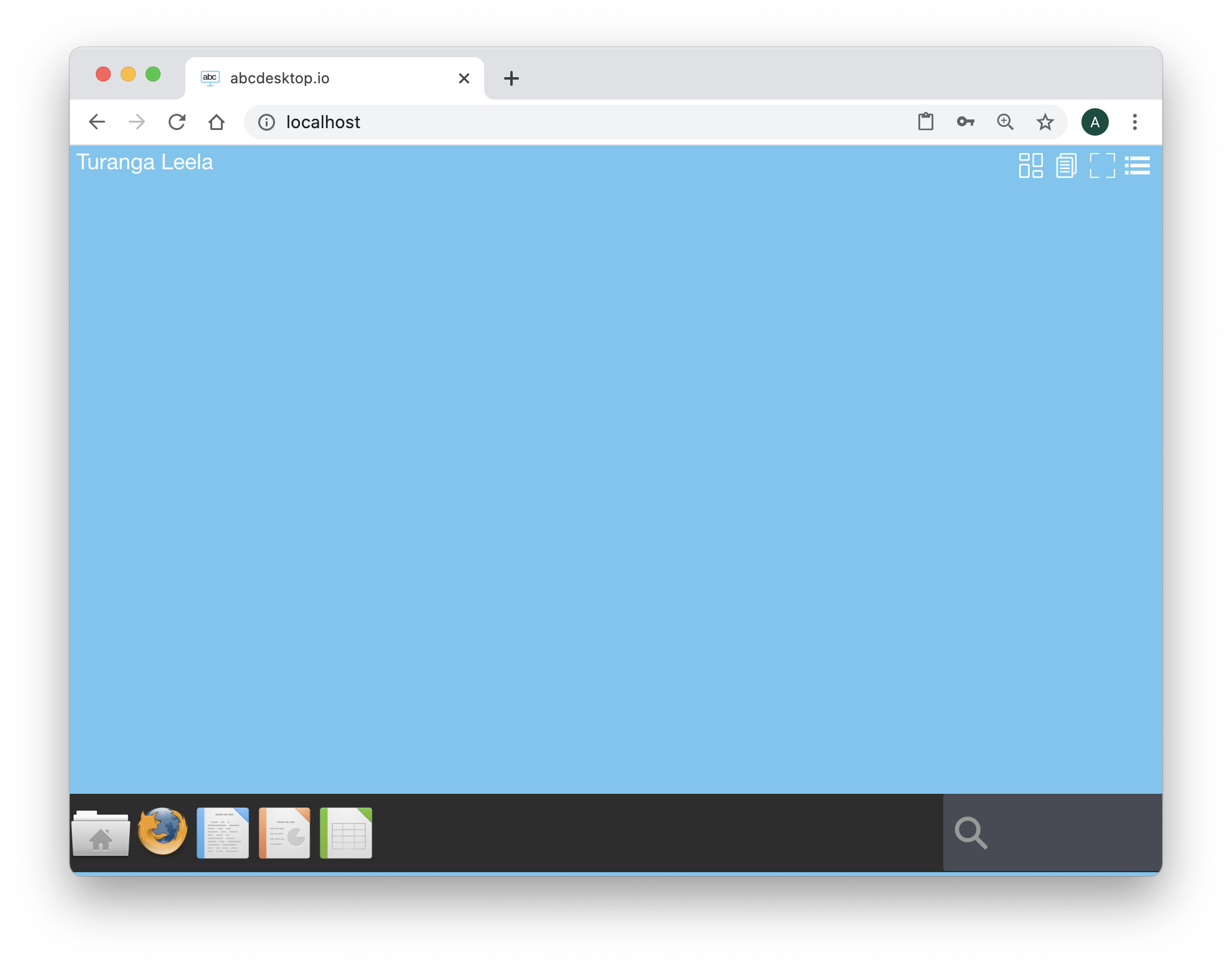

auth-provider-explicit-ldap-login-user-done

Look at the top of the sreen. The user name is Turanga Leela: auth-provider-explicit-ldap-login-user-turanga

Applications remainted

Start LibreOffice Writer, and start a new file for your instructor. Type few words for example :

I like this amazing project abcdesktop.io

Do not save your file and just close your web browser.

Start your web browser again, and open the same URL http://localhost, and log in with the same account: Turanga Leela as login and leela as password, then click on the Sign in button.

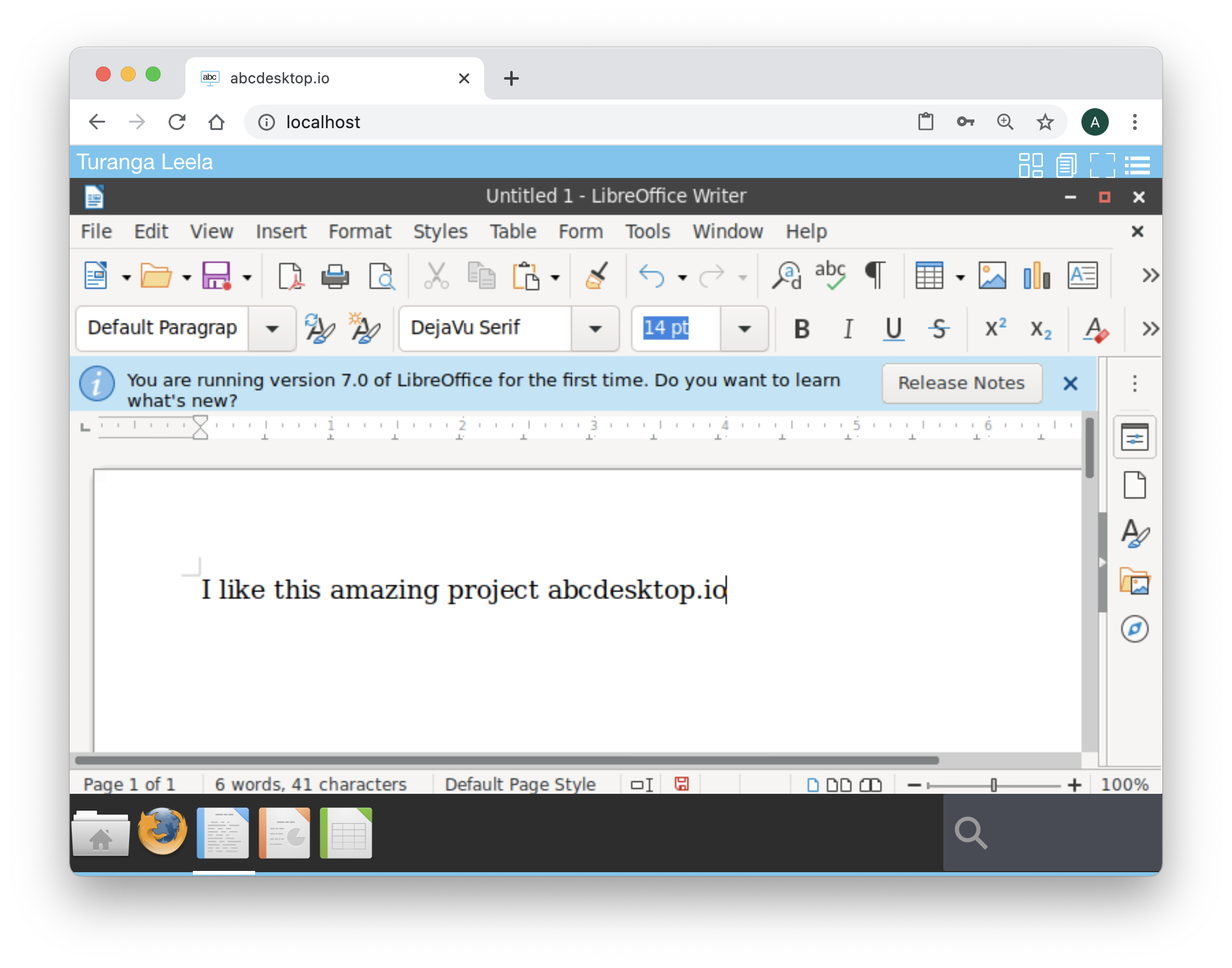

The application LibreOffice Writer is still running and the greeting message I like this amazing project abcdesktop.io

All applications are maintained.

Great, you have check how the explicit Authentification configuration works, install an openldap directory service, and check that all sessions are maintained.
