Publish your website as a public secured service

Requirements

To get more informations

Overview

In this chapter we are going to, use a gke-ingress-controller to host your abcdesktop service with a public IP Address, then configure dns zone file to use your own domain name, and activate TLS to secure your service.

Set up the GKE Ingress controller

In this example we will use the GKE built-in ingress controller. Before starting you may first need to check if the HttpLoadBalancing add-on is enabled on your cluster.

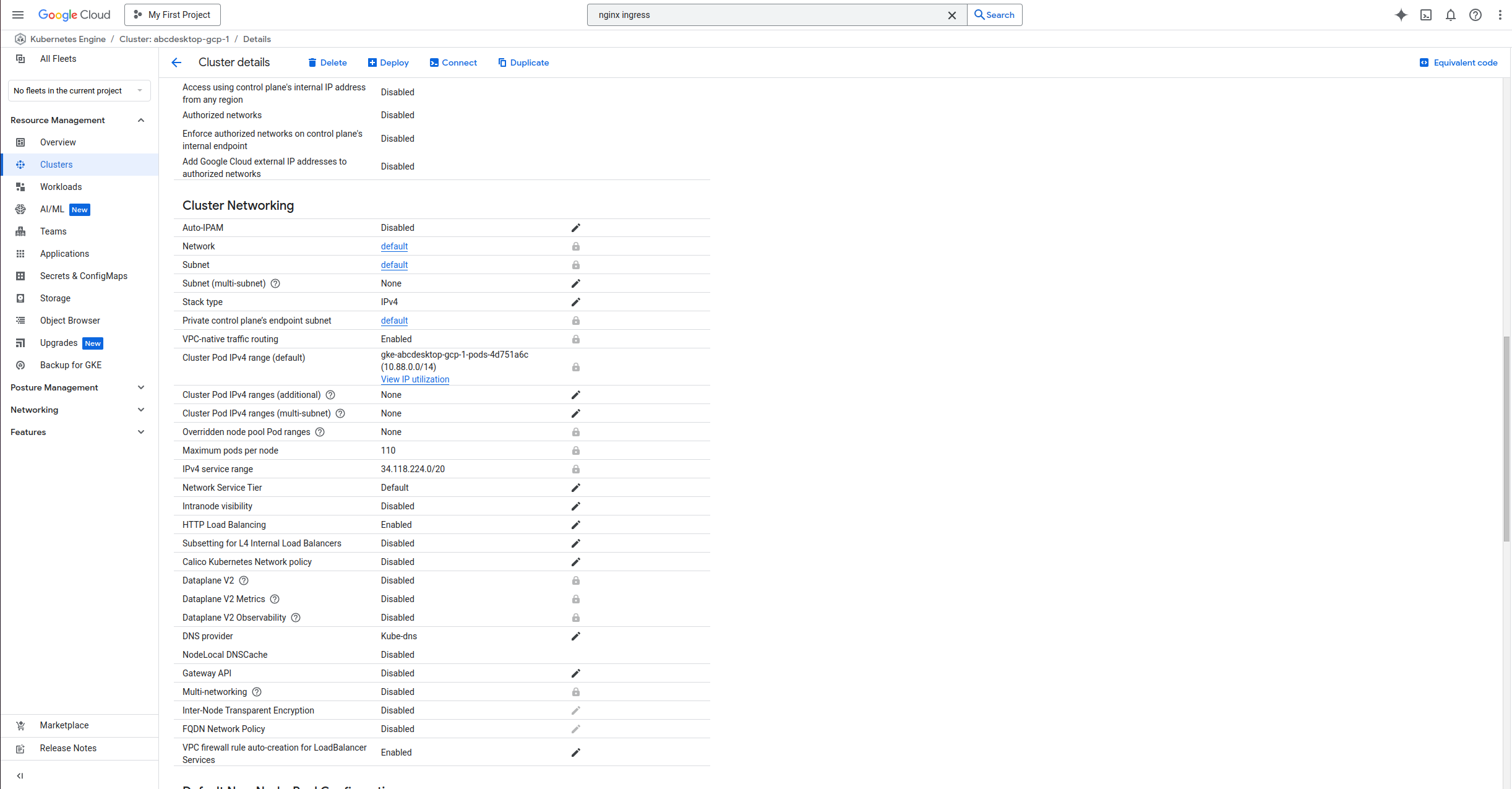

Go to your cluster page on the GCP console, then Networking, you should see HttpLoadBalancing as enabled, if not enable it and save your changes.

httploadbalancing enabled

Create an ingress resource for GKE using the abcdesktop service and save it as abcdesktop_host.yaml You need to update this manifest with your own FQDN, replace hello.ingress.gcp.pepins.net by your own values.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-abcdesktop
  namespace: abcdesktop
  annotations:
    kubernetes.io/ingress.class: "gce"
spec:
  rules:
    - host: hello.ingress.gcp.pepins.net
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: http-router
                port:
                  number: 80

As mentionned in the GKE ingress documentation, you cannot specify a GKE ingress using spec.ingressClassName, you must use the kubernetes.io/ingress.class annotation. We are using the gce class to deploy an external Application Load Balancer.

Apply the Ingress yaml file

kubectl apply -f abcdesktop_host.yaml -n abcdesktop

You should read

ingress.networking.k8s.io/ingress-abcdesktop created

Verify the ingress resources:

kubectl get ingress -n abcdesktop

The output looks similar to the following:

Wait fee seconds while the ADDRESS field is empty

NAME                 CLASS    HOSTS                          ADDRESS   PORTS   AGE
ingress-abcdesktop   <none>   hello.ingress.gcp.pepins.net             80      4s

When you obtain an IP ADDRESS

NAME                 CLASS    HOSTS                          ADDRESS         PORTS   AGE
ingress-abcdesktop   <none>   hello.ingress.gcp.pepins.net   35.190.86.108   80      3m14s

In the example above, the ingress resource tells gce to route each HTTP request that is using the / prefix for the hello.ingress.gcp.pepins.net host, to the route backend service running on port 80. In other words, every time you make a call to http://hello.ingress.gcp.pepins.net/, the request and reply are served by the echo backend service running on port 80.

Update your DNS zone file

We will associate your FQDN (Fully Qualified Domain Name) to the load-balancer's IP Address.

cloud dne

This screenshot describes the GCP network console. It shows the Domain informations, but you can manage your own zone file from your own registrar.

Create new record

In this example, we are going to create a new record hello.ingress (hello.ingress.gcp.pepins.net) to the A address 35.190.86.108. This IP Address is the load-balancer IP Address.

Press Add Standard button, to update your zone file with the new record

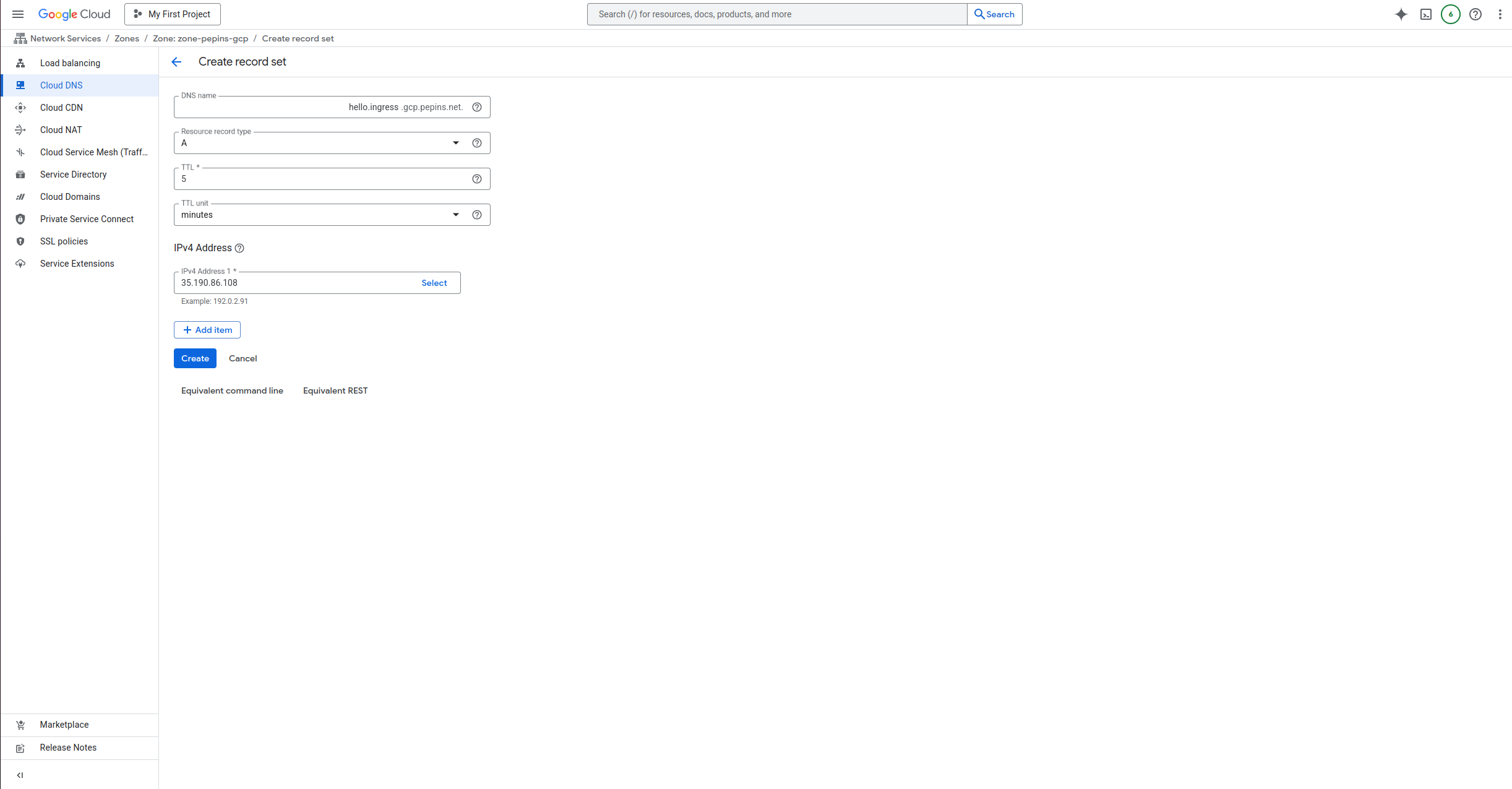

gcp console add record

Then you should see your record on your domain page

record created

From your local device, you can open a web browser

reach your website from your new name

Web browser doesn't allow usage of websocket without secure protocol. To login you need https protocol.

As you can see, your website is Not Secured, we are going to add X509 SSL certificate to secure your service.

Enable HTTPS

Configure Google-managed SSL certificates

To enable HTTPS on our exposed service, we will use Google-managed SSL certificates as it is natively embedded in GCP and works well with a GKE ingress controller.

First you will create a ManagedCertificate object, copy the following lines in a abcdesktop_managed_certificate.yaml file.

apiVersion: networking.gke.io/v1
kind: ManagedCertificate
metadata:
  name: abcdesktop-cert
  namespace: abcdesktop
spec:
  domains:
    - hello.ingress.gcp.pepins.net

Then apply it to the cluster.

kubectl apply -f abcdesktop_managed_certificate.yaml -n abcdesktop

Now, you will have modify the previously created ingress file, and specify the managed certificate the ingress will use, in the annotations section.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-abcdesktop
  namespace: abcdesktop
  annotations:
    kubernetes.io/ingress.class: "gce"
    networking.gke.io/managed-certificates: "abcdesktop-cert"
spec:
  rules:
    - host: hello.ingress.gcp.pepins.net
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: http-router
                port:
                  number: 80

Then apply it to the cluster to start the certificate generation.

kubectl apply -f abcdesktop_host.yaml -n abcdesktop

You can check that the provisioning started by running the following command

kubectl get managedcertificate -n abcdesktop
NAME                AGE   STATUS
abcdesktop-cert     30s   Provisioning

After a few minutes, between 10 and 15, you will see that the status will change from Provisioning to Active.

kubectl get managedcertificate -n abcdesktop
NAME                AGE   STATUS
abcdesktop-cert     12m   Active

Reach your website using https protocol

You can now connect to your abcdesktop desktop pulic web site using https protocol.

reach your website using https

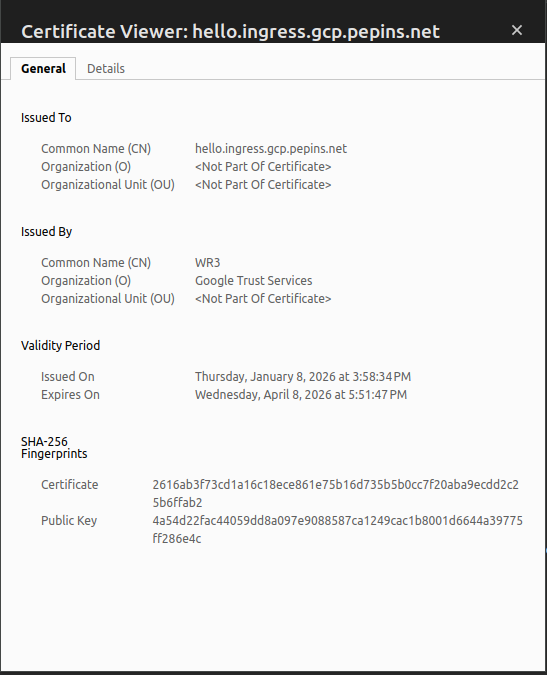

The status is secured and we get some informations from the certificate

reach your website using https

Increase ingress connection timeout

By default, GCE type ingress has a connection timeout of 30 seconds, in our case, we doesn't want abcdesktop to drop the connection to our desktop every 30 seconds, so we will have to increase timeout.

Unlike a nginx type ingress, you cannot add annotations to the ingress yaml file to increase timeout value. You instead need to create a BackendConfig object that you will link to your routing service.

First copy the following lines in a backend_config_timeout.yaml

apiVersion: cloud.google.com/v1
kind: BackendConfig
metadata:
  name: long-timeout-backend
  namespace: abcdesktop
spec:
  timeoutSec: 1800

Apply it to the cluster

kubectl apply -f backend_config_timeout.yaml -n abcdesktop

Then you need to create a service that will use this config, copy the following lines in a http_router_increased_timeout.yaml

apiVersion: v1
kind: Service
metadata:
  name: http-router-proxy
  namespace: abcdesktop
  labels:
    abcdesktop/role: router-proxy
  annotations:
    cloud.google.com/backend-config: '{"ports": {"80":"long-timeout-backend"}}'
spec:
  type: NodePort
  selector:
    run: router-od
  ports:
  ports:
  - protocol: TCP
    port: 443
    targetPort: 443
    name: https
  - protocol: TCP
    port: 80
    targetPort: 80
    name: http

This new service has the same logic that the existing http-router service but uses the backend config we just created.
Apply it to the cluster

kubectl apply -f http_router_increased_timeout.yaml -n abcdesktop

Finally update your ingress yaml file to link it to the service we just created.

backend:
  service:
    name: http-router-proxy
    port:
      number: 80

Now wait a few minutes for GCE to apply the new configuration and reconnect to your desktop, the connection shouldn't drop after 30 seconds anymore.
