Publish your website as a public secured service

Requirements

read the previous chapter Deploy abcdesktop on AWS with Amazon Elastic Kubernetes Service
an AWS account
your own internet domain
aws command line interface aws-cli
kubectl command line
wget command line

Overview

In this chapter we are going to, use a loadBalancer to host your abcdesktop service with a public IP Address, then configure dns zone file to use your domain name, and activate TLS to secure your service.

Add tags for public subnets

By default, when creating your VPC, the public subnets does not have the kubernetes.io/role/elb=1 tag, but this tag is mandatory in order to expose our service using a load balancer with AWS. Actually, AWS scans your VPC, searching for the subnets with this percise tag to place the load balancers.

To do so, run the following command

aws ec2 create-tags --resources <your_public_subnets_ids> --tags Key=kubernetes.io/role/elb,Value=1

You can find your public subnets ids in the Subnets page of the VPC dashboard on AWS console

You can check if the tags have been applied by running the following command

aws ec2 describe-subnets --filters "Name=vpc-id,Values=<your_vpc_id>" "Name=tag:kubernetes.io/role/elb,Values=1" --query 'Subnets[*].[SubnetId,AvailabilityZone]' --output table

You should read on stdout

--------------------------------------------
|              DescribeSubnets             |
+---------------------------+--------------+
|  subnet-09c09bd5bbdec72a6 |  us-east-1b  |
|  subnet-02d592feab5bb0faf |  us-east-1a  |
+---------------------------+--------------+

Create a new `http-router` service yaml file

The default install define the http-router service with as nodePort type. We are going to update the http-router service with a LoadBalancer type.

Create a file named http-router.yaml

apiVersion: v1
kind: Service
metadata:
  name: http-router
  labels:
    abcdesktop/role: router-od
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: "nlb-ip"
    service.beta.kubernetes.io/aws-load-balancer-scheme: "internet-facing"
    service.beta.kubernetes.io/aws-load-balancer-healthcheck-protocol: "http"
    service.beta.kubernetes.io/aws-load-balancer-healthcheck-port: "80"
    service.beta.kubernetes.io/aws-load-balancer-healthcheck-path: "/healthz"
spec:
  type: LoadBalancer
  selector:
    run: router-od
  ports:
    - name: https
      protocol: TCP
      port: 443
      targetPort: 443
    - name: http
      protocol: TCP
      port: 80
      targetPort: 80

Save your http-router.yaml file

Delete the previous service http-router

kubectl delete service http-router -n abcdesktop
service "http-router" deleted

Create your new service/http-router

kubectl apply -f http-router.yaml -n abcdesktop
service/http-router created

Wait for few minutes, the EXTERNAL-IP of service http-router stays in Pending state

kubectl get services http-router -n abcdesktop

NAME          TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
http-router   LoadBalancer   172.20.207.4    <pending>     80:32155/TCP   3s

Check the EXTERNAL-IP of service http-router again

kubectl get services http-router -n abcdesktop

Great the service gets k8s-abcdeskt-httprout-5ebf729011-0cdda549d4c8665f.elb.us-east-1.amazonaws.com as an EXTERNAL-IP

NAME          TYPE           CLUSTER-IP     EXTERNAL-IP                                                                     PORT(S)                      AGE
http-router   LoadBalancer   172.20.207.4   k8s-abcdeskt-httprout-5ebf729011-0cdda549d4c8665f.elb.us-east-1.amazonaws.com   443:32461/TCP,80:31216/TCP   2m3d

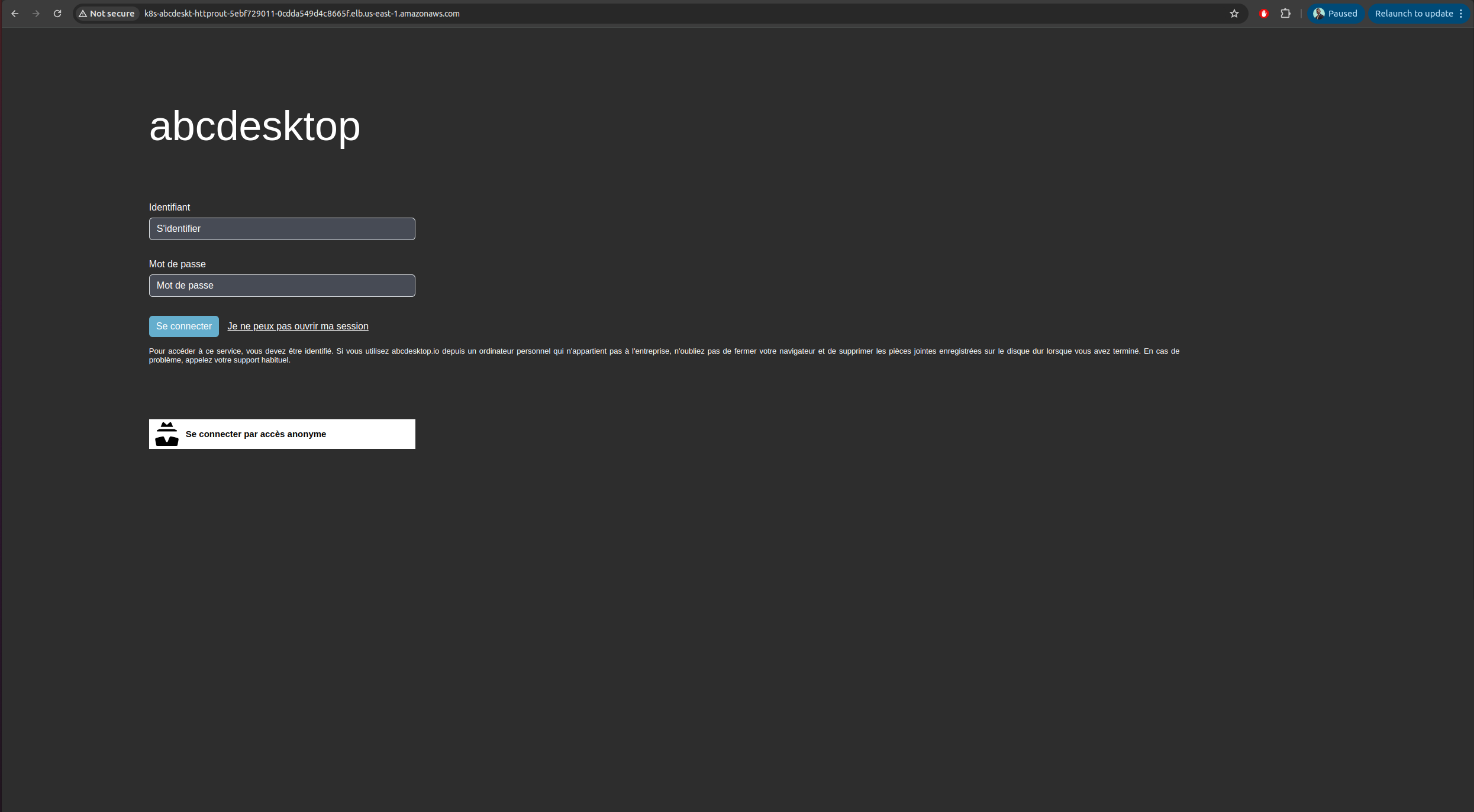

You can open a web browser to reach your abcdesktop service with the given URL

web browser to reach your abcdesktop service

Web browser doesn't allow usage of websocket without secure protocol. To login you need https protocol

Update your DNS zone file

We will use a FQDN (Fully Qualified Domain Name) to replace the IP Address.

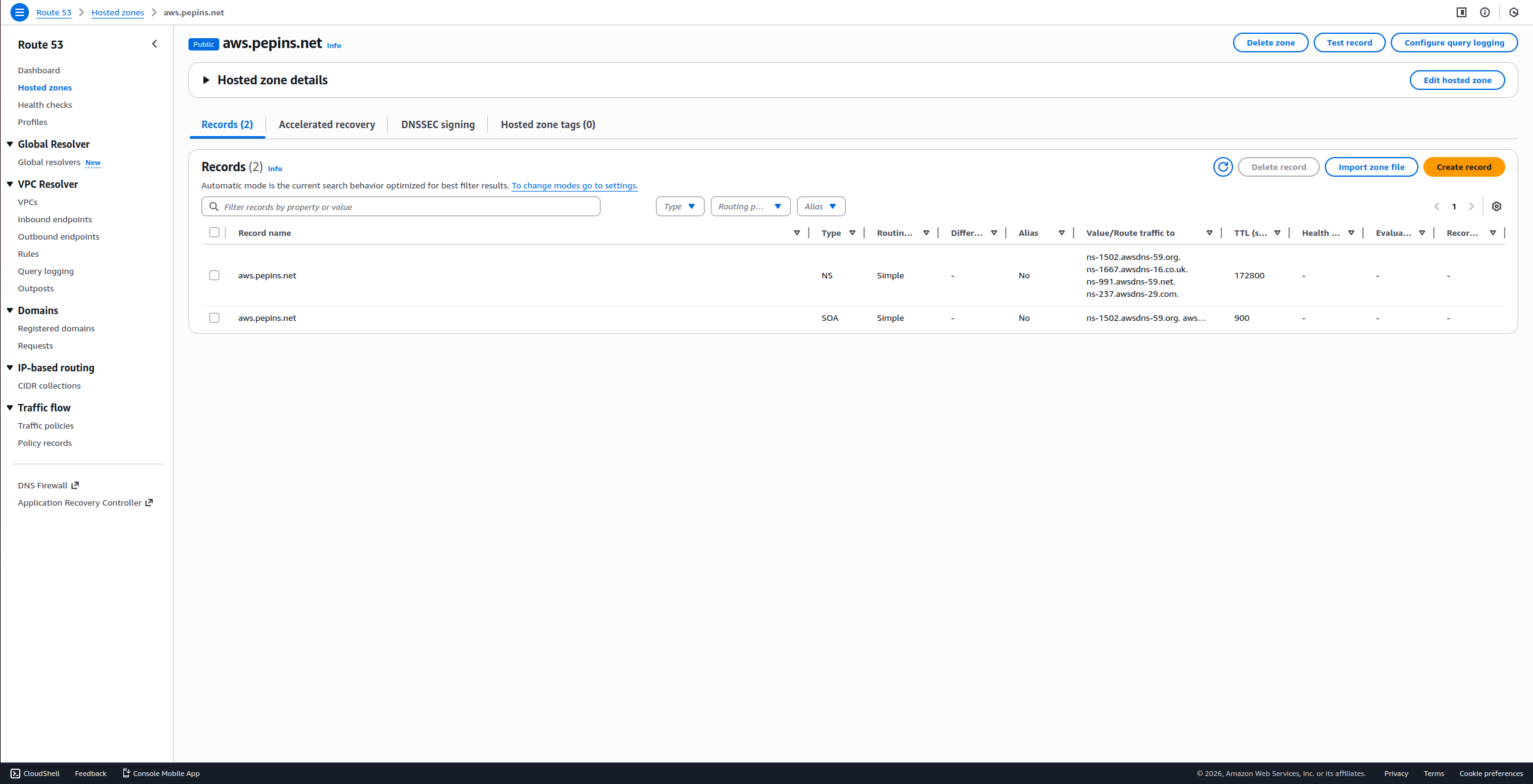

aws networking

This screenshot describes the AWS network console Route 53. It shows the Domain informations, but your can manage your zone file from your own registrar.

Create new record

We are going to create a new record hello (hello.aws.pepins.net) using k8s-abcdeskt-httprout-5ebf729011-0cdda549d4c8665f.elb.us-east-1.amazonaws.com as an alias.

First, you will need your load balancer hosted zone id. To get, run the following command :

aws elbv2 describe-load-balancers   --region us-east-1   --query 'LoadBalancers[0].CanonicalHostedZoneId'

You should get something like this

Z26RNL4JYFTOTI

Now paste the following lines in a create-record-abcdesktop-aws.json file :

{
  "Comment": "create a new record for abcdesktop on aws",
  "Changes": [
    {
      "Action": "CREATE",
      "ResourceRecordSet": {
        "Name": "hello.aws.pepins.net.",
        "Type": "A",
        "AliasTarget": {
          "HostedZoneId": "<your_hosted_zone_id>",
          "DNSName": "k8s-abcdeskt-httprout-5ebf729011-0cdda549d4c8665f.elb.us-east-1.amazonaws.com",
          "EvaluateTargetHealth": false
        }
      }
    }
  ]
}

Now, you will need to retrieve the hosted zone id of your domain on route 53. You can get it through the Route 53 web interface, or by running the following command :

aws route53 list-hosted-zones   --query 'HostedZones[*].[Name,Id]'   --output table

You should read something like this

--------------------------------------------------------
|                    ListHostedZones                   |
+------------------+-----------------------------------+
|  aws.pepins.net. |  /hostedzone/Z0710575SCBYT0OUKZP  |
+------------------+-----------------------------------+

Finally, run this command to add the record :

aws route53 change-resource-record-sets --hosted-zone-id <your_domain_hosted_zone_id> --change-batch file://create-record-abcdesktop-aws.json

For example

aws route53 change-resource-record-sets --hosted-zone-id Z0710575SCBYT0OUKZP --change-batch file://create-record-abcdesktop-aws.json

You should read something like this

{
    "ChangeInfo": {
        "Id": "/change/C07091422RBO1K64I6QWN",
        "Status": "PENDING",
        "SubmittedAt": "2026-01-14T13:30:30.133000+00:00",
        "Comment": "create a new record for abcdesktop on aws"
    }
}

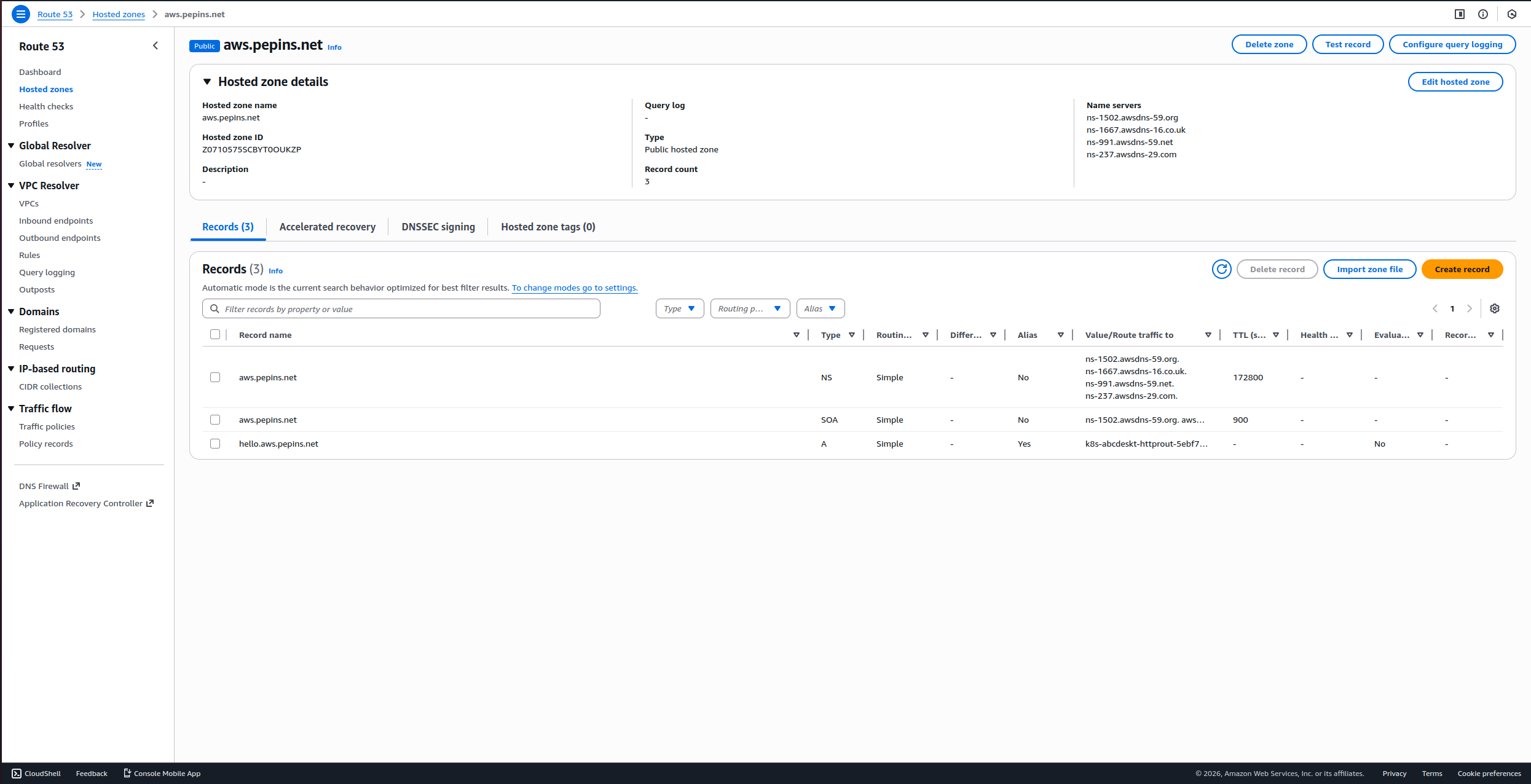

If you go to your Route 53 web console, you should see the record you juste added

aws record added

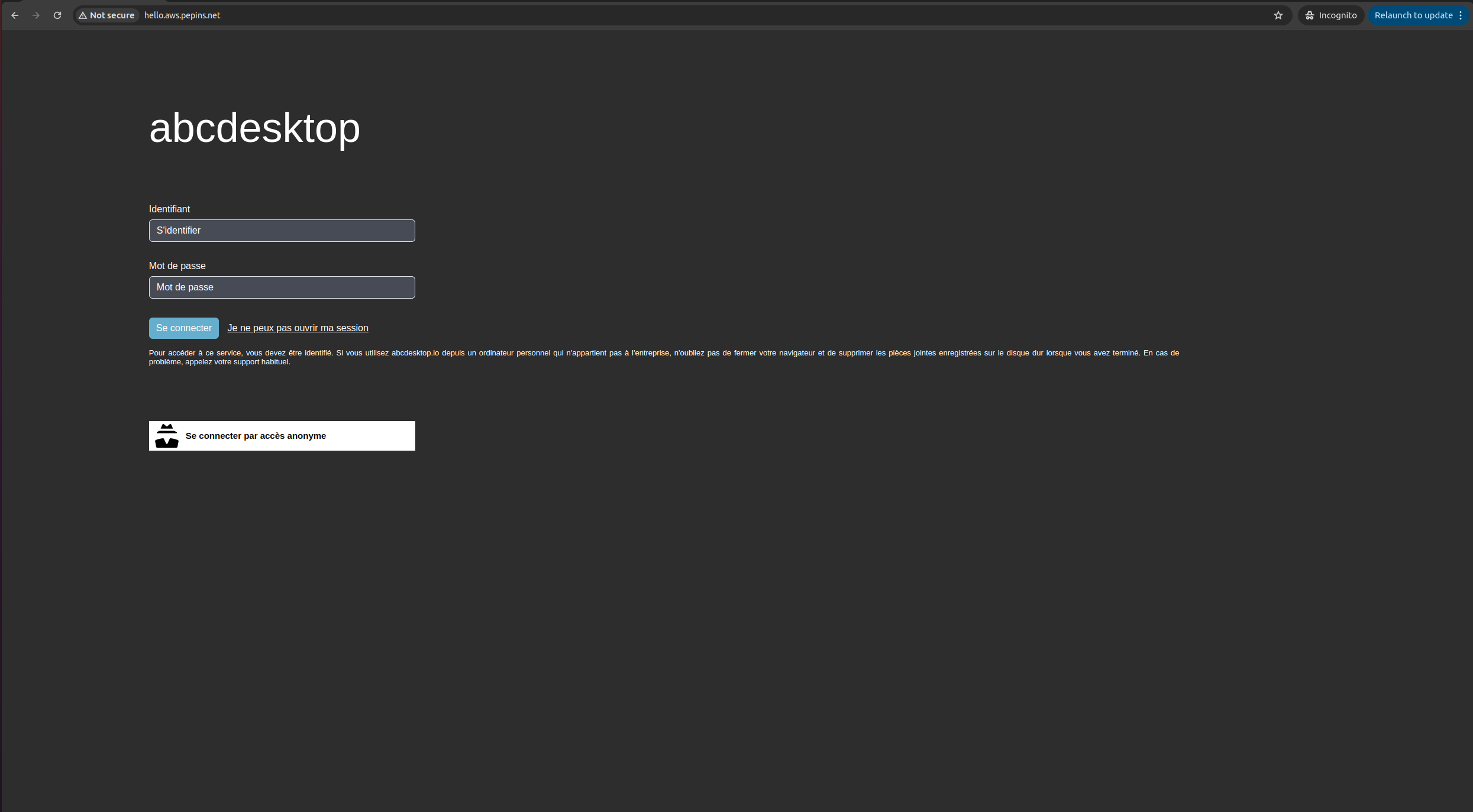

From your local device, you can open a web browser

reach your website from your new name

Web browser doesn't allow usage of websocket without secure protocol. To login you need https protocol.

As you can see, your website is Not Secured, we are going to add X509 SSL certificate to secure your service.

Obtain a certificat

If you already have a X509 certificat with a private and public certified key files for your web site, you can skip this chapter.

To create you SSL certificat, we are using let's encrypt service. You need your new hostname and your email address

Define the new variables ABCDESKTOP_PUBLIC_FQDN and USER_EMAIL_ADDRESS

ABCDESKTOP_PUBLIC_FQDN=hello.aws.pepins.net
USER_EMAIL_ADDRESS=thisisyouremail@domain.com
ROUTER_POD_NAME=$(kubectl get pods -l run=router-od -o jsonpath={.items..metadata.name}  -n abcdesktop)
kubectl exec -n abcdesktop -it ${ROUTER_POD_NAME} -- /usr/bin/certbot certonly --webroot -w /var/lib/nginx/html -d ${ABCDESKTOP_PUBLIC_FQDN} -m "${USER_EMAIL_ADDRESS}" --agree-tos -n

You should read on stdout

Saving debug log to /var/log/letsencrypt/letsencrypt.log
Account registered.
Requesting a certificate for hello.aws.pepins.net

Successfully received certificate.
Certificate is saved at: /etc/letsencrypt/live/hello.aws.pepins.net/fullchain.pem
Key is saved at:         /etc/letsencrypt/live/hello.aws.pepins.net/privkey.pem
This certificate expires on 2026-04-13.
These files will be updated when the certificate renews.

NEXT STEPS:
- The certificate will need to be renewed before it expires. Certbot can automatically renew the certificate in the background, but you may need to take steps to enable that functionality. See https://certbot.org/renewal-setup for instructions.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you like Certbot, please consider supporting our work by:
 * Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
 * Donating to EFF:                    https://eff.org/donate-le
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The files fullchain.pem and privkey.pem are located inside the container.

Certificate is saved at: /etc/letsencrypt/live/hello.aws.pepins.net/fullchain.pem
Key is saved at:         /etc/letsencrypt/live/hello.aws.pepins.net/privkey.pem

We export the files and create a new secrets.

kubectl exec -n abcdesktop -it  ${ROUTER_POD_NAME} -- cat /etc/letsencrypt/live/$ABCDESKTOP_PUBLIC_FQDN/fullchain.pem > fullchain.pem
kubectl exec -n abcdesktop -it  ${ROUTER_POD_NAME} -- cat /etc/letsencrypt/live/$ABCDESKTOP_PUBLIC_FQDN/privkey.pem > privkey.pem

Create a secret for X509 certificat

Create a secret named http-router-certificat with the fullchain.pem and privkey.pem file content

kubectl create secret tls http-router-certificat --cert=fullchain.pem --key=privkey.pem -n abcdesktop

You secret is created

secret/http-router-certificat created

Update `http-router` ConfigMap to use the new `http-router-certificat` secret

Download abcdesktop-routehttp-config.4.2.yaml file

wget https://raw.githubusercontent.com/abcdesktopio/conf/refs/heads/main/kubernetes/abcdesktop-routehttp-config.4.2.yaml

Open your abcdesktop-routehttp-config.4.2.yaml file, look for the ConfigMap abcdesktop-routehttp-config.

Remove the comments to enable https and change the value YOUR_SERVER_NAME_AND_DOMAIN by your own value.

 # nginx server config
 server {
     ...

     ######
     # uncomment this to enable https
     #
     listen 443 ssl http2 default_server;
     listen [::]:443 ssl http2 default_server;
     server_name YOUR_SERVER_NAME_AND_DOMAIN; # change this too
     ssl_certificate     /etc/nginx/ssl/tls.crt;
     ssl_certificate_key /etc/nginx/ssl/tls.key;
     #
     # end of https section
     ######

     ...
     index index.html index.htm;

For example

     listen 443 ssl http2 default_server;
     listen [::]:443 ssl http2 default_server;
     server_name hello.aws.pepins.net;
     ssl_certificate     /etc/nginx/ssl/tls.crt;
     ssl_certificate_key /etc/nginx/ssl/tls.key;

Apply your new nginx confguration file

kubectl apply -f abcdesktop-routehttp-config.4.2.yaml -n abcdesktop

Update `deployment` http-router

Update the deployment route to add certificat ssl entry

The abcdesktop-deployment-routehttps.4.2.yaml file adds mountPath: /etc/nginx/ssl to secretName: http-router-certificat

kubectl apply -f https://raw.githubusercontent.com/abcdesktopio/conf/refs/heads/main/kubernetes/abcdesktop-deployment-routehttps.4.2.yaml -n abcdesktop

Reach your website using `https`protocol

You can now connect to your abcdesktop desktop pulic web site using https protocol.

reach your website using https

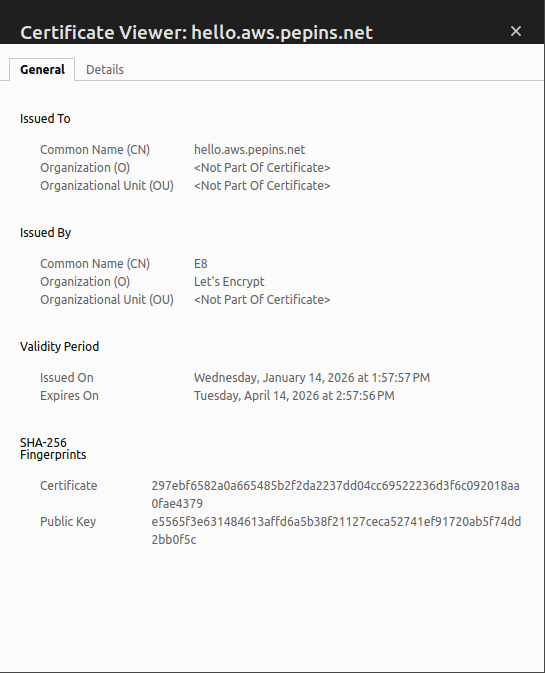

The status is secured and we get some informations from the certificate

certificate infos
