Add external provider to abcdesktop

Release 4.1

Release 4.1 add external provider to abcdesktop

Requirements

kubernetes cluster ready to run whith abcdesktop.io installed
kubectl or microk8s command-line tool must be configured to communicate with your cluster.
your own internet FQDN and secured web site with https.

Create oauth2.0 application

To illustrate the process of adding an external provider to abcdesktop, we will take Google as an example but keep in mind that the process is nearly the same.

Go to https://developers.google.com/identity/protocols/oauth2?hl=en and follow the steps of the Google documentation in order to create your app using oauth2.0 protocol.

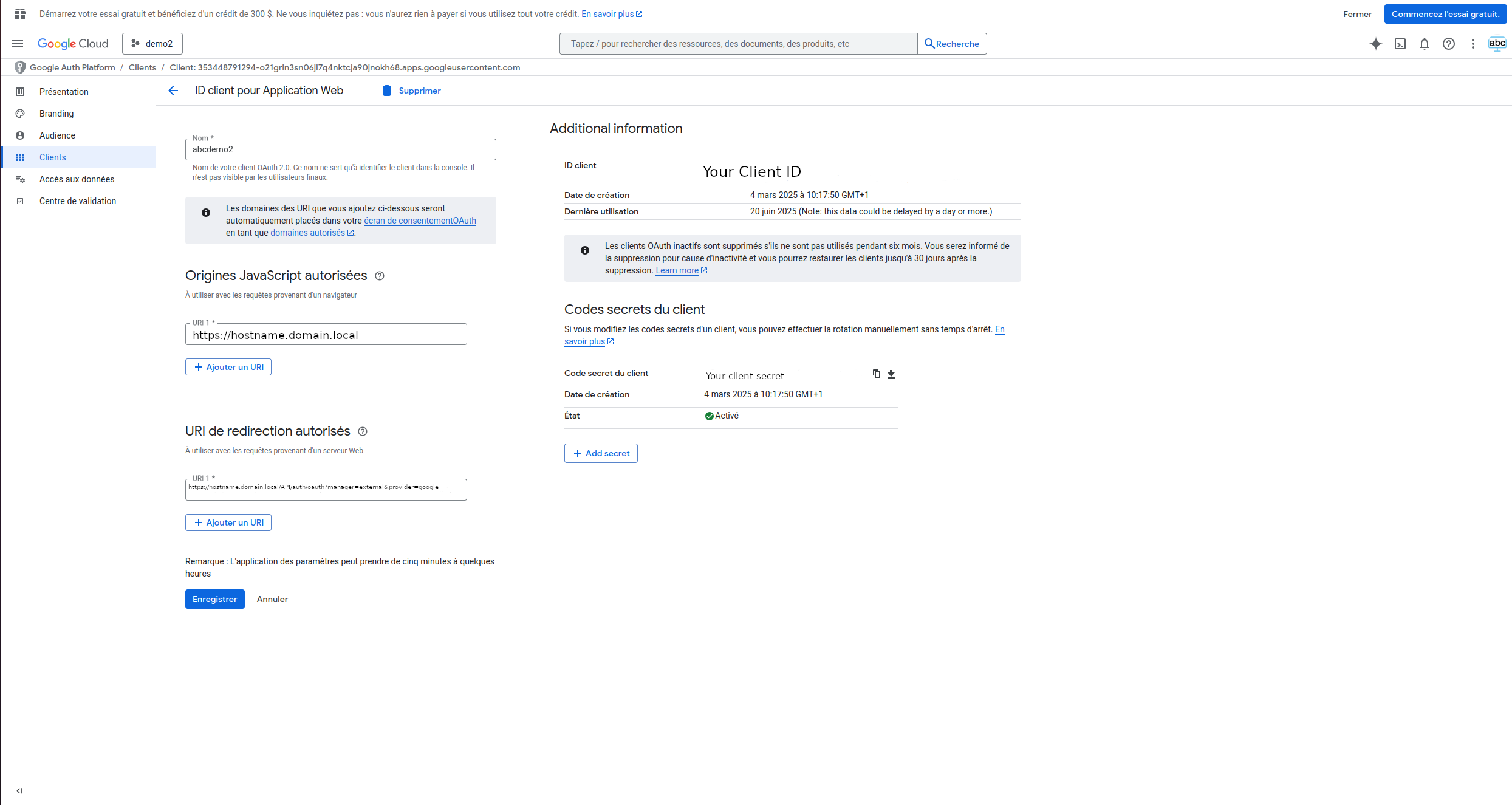

At the end of the app setup, you should have something like this : Google app

Edit od.config

Edit the AUTH section of od.config file. external authentification use OAuth 2.0 authenticaton.

The external authentification configuration is defined as a dictionary object and contains a list of external provider.

Sample providers entry using the Google OAuth 2.0 authentification service.

'external': {
    'providers': {
    'google': {
    'google': {
        'displayname': 'Google',
        'textcolor': 'white',
        'backgroundcolor': '#cd3c14',
        'icon': 'img/auth/google_icon.svg',
        'enabled': True,
        'client_id': 'xxxx',
        'client_secret': 'xxxx',
        'userinfo_auth': True,
        'scope': [ 'https://www.googleapis.com/auth/userinfo.email',  'openid' ],
        'userinfo_url': 'https://www.googleapis.com/oauth2/v1/userinfo',
        'redirect_uri_prefix' : 'https://hostname.domain.local/API/auth/oauth',
        'redirect_uri_querystring': 'manager=external&provider=google',
        'authorization_base_url': 'https://accounts.google.com/o/oauth2/v2/auth',
        'token_url': 'https://oauth2.googleapis.com/token',
        'policies': { 'acl'  : { 'permit': [ 'all' ] } }
      }
   }
}

The variable values client_id and client_secret have been set to obfuscate value 'xxxx'. The FQDN hostname.domain.local is referred to your public server FQDN.

Variable name	Type	Description	Sample
`displayname`	string	Display Name show in Web front	`Google`
`textcolor`	string	Button text color in web front	`white`
`backgroundcolor`	string	Button background color in web front	`#cd3c14`
`icon`	string	path of the provider icon to display in Web front	`img/auth/google_icon.svg`
`enabled`	boolean	LDAP Base Distinguished Names	`True`
`client_id`	string	client id	`XXX-YYY.apps.googleusercontent.com`
`client_secret`	string	client secret	`XXX`
`scope`	list of string	scope	`[ 'https://www.googleapis.com/auth/userinfo.email', 'openid' ]`
`userinfo_url`	string	dialog URL	`https://www.googleapis.com/oauth2/v1/userinfo`
`redirect_uri_prefix`	string	redirect URL	`https://hostname.domain.local/API/auth/oauth`
`redirect_uri_querystring`	string	URL query string	`manager=external&provider=google`
`authorization_base_url`	string	callback URL	`https://accounts.google.com/o/oauth2/v2/auth`
`token_url`	string	token URL	`https://oauth2.googleapis.com/token`

The complete redirect url concats the two values redirect_uri_prefix and redirect_uri_querystring.

Apply new config

Once saved, you need to apply the new abcdesktop configuration by running the following commands :

kubectl create -n abcdesktop configmap abcdesktop-config --from-file=od.config -o yaml --dry-run=client | kubectl replace -n abcdesktop -f -

This will delete the previous configmap and create a new one with the updated od.config file. Then restart pyos in order to apply the new config

kubectl rollout restart deploy pyos-od -n abcdesktop

Add provider icon (optional)

As mentionned earlier, there are a lot of external providers that you can add and you may want to add one that has not its icon pre installed in abcdesktop.
The ones that are already present are : - Google - Facebook - Github - Orange - LinkedIn - Spotify - Discord

Let's assume that you want to add X as an external authentification provider.

1. Download icon

Go to the internet and download the x SVG icon, save it as x_icon.svg

2. Create configmap

Then create a new kubernetes configmap from your SVG file. Go to the icon folder and run the following command :

kubectl create configmap x-icon --from-file=x_icon.svg -n abcdesktop

3. Edit abcdesktop.yaml

Open the abcdesktop.yaml file and find the pyos deployment section. This section starts with :

apiVersion: apps/v1
kind: Deployment
metadata:
  name: pyos-od

Find the volumeMounts entry and add a new volumeMount as below :

- name: volume-abcdesktop-x-icon
  mountPath: /var/pyos/img/auth/x_icon.svg # path to the icon inside pyos pod
  subPath: img/auth/x_icon.svg
  readOnly: true

Then find the volume entry and add a new volume as below :

- name: volume-abcdesktop-x-icon
  configMap:
    name: x-icon # name of the configmap you created earlier

4. Apply config

Once saved, you need to apply the new config by running

kubectl apply -f abcdesktop.yaml -n abcdesktop
